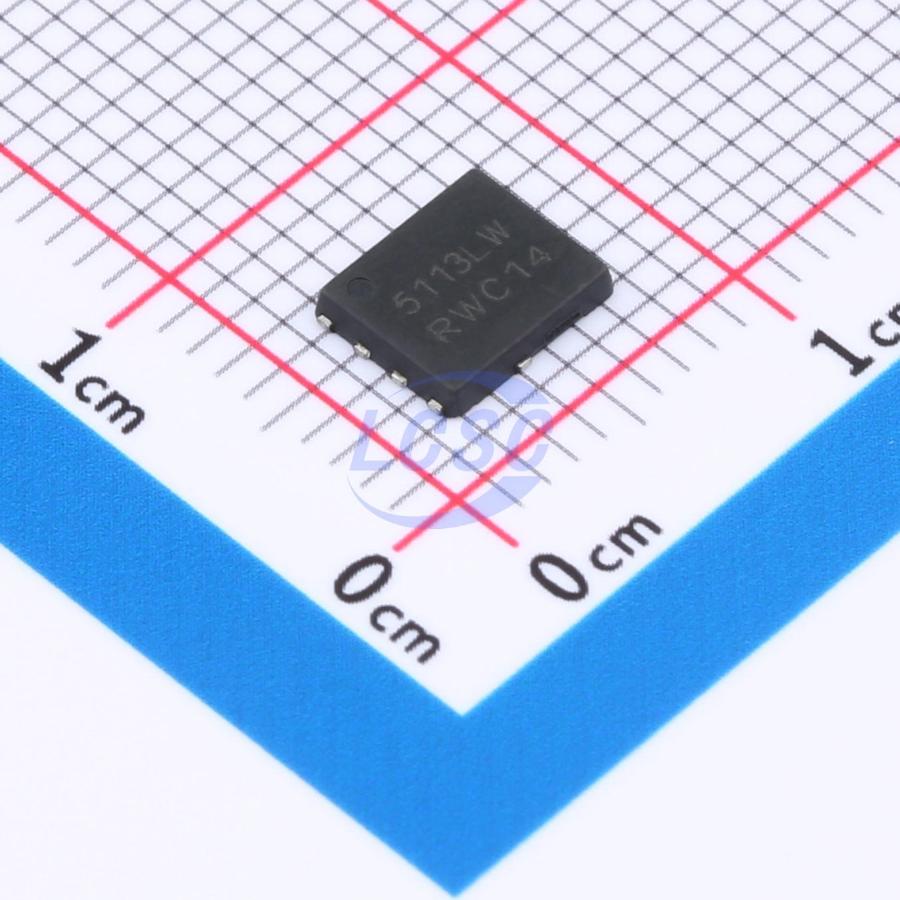

NVMFS5113PLWFT1G
P-Channel 60V 64A 150W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET P-CH 60V 64A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5113PLWFT1G
- Store part #
- C604583
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C604583
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹403.24 | ₹403.24 |
| 10+ | ₹344.65 | ₹3,446.50 |
| 30+ | ₹307.95 | ₹9,238.50 |
| 100+ | ₹270.41 | ₹27,041.00 |
| 500+ | ₹253.45 | ₹1,26,725.00 |
| 1,500+ | ₹246.16 | ₹3,69,240.00 |
1 × ₹403.24
₹403.24
excl. GST
₹475.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5113PLWFT1G
₹403.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 505pF
- Ciss-Input Capacitance
- 4.4nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 64A
- Reverse Transfer Capacitance (Crss)
- 319pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 83nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Key features
- Low RDS(on) to Minimize Conduction Losses
- High Current Capability
- Avalanche Energy Specified
- NVMFS5113PLWF − Wettable Flanks Product
- NVM Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5113PLT1G#C604582onsemi · SO-8FL | onsemi | SO-8FL | 45 | ₹291.18 · 45 in stock | View |
 | TPM6060PD56#C7472879TECH PUBLIC · PDFN5X6-8L | TECH PUBLIC | PDFN5X6-8L | 858 | ₹115.11 · 858 in stock | View |
 | HSBA8119#C22359243HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,866 | ₹154.29 · 2,866 in stock | View |
 | SP60P11NK#C41355207Siliup · PDFNWB-8L(5x6) | Siliup | PDFNWB-8L(5x6) | 3,987 | ₹75.85 · 3,987 in stock | View |
 | WSD90P06DN56#C719104Winsok Semicon · DFN-8(5x6) | Winsok Semicon | DFN-8(5x6) | 9,968 | ₹187.26 · 9,968 in stock | View |
