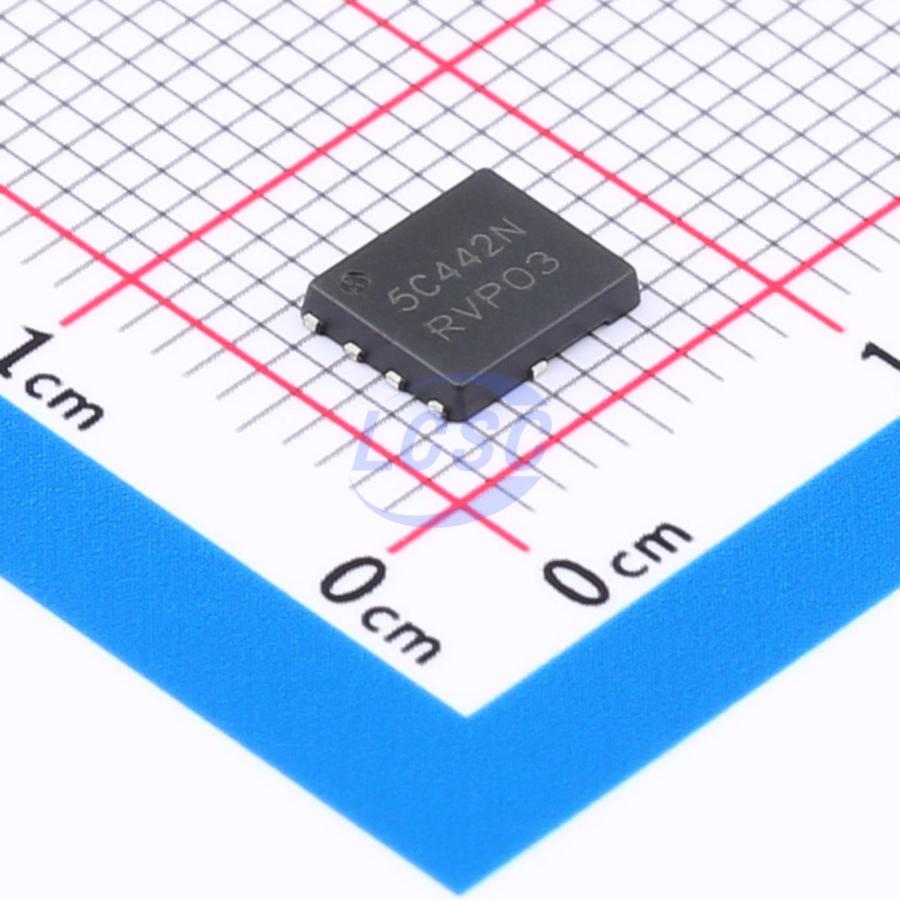

NVMFS5C442NAFT1G
N-Channel 40V 140A 83W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 40V 140A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C442NAFT1G
- Store part #
- C604597
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
319 in stock
#C604597
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.18 | ₹189.18 |
| 10+ | ₹174.40 | ₹1,744.00 |
| 30+ | ₹165.04 | ₹4,951.20 |
| 100+ | ₹155.48 | ₹15,548.00 |
| 500+ | ₹151.35 | ₹75,675.00 |
| 1,500+ | ₹149.39 | ₹2,24,085.00 |
1 × ₹189.18
₹189.18
excl. GST
₹223.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C442NAFT1G
₹189.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 2.1nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C442NWF - Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVMFS5C442NWFAFT1G#C900430onsemi · SO-8FL | onsemi | SO-8FL | 87 | ₹354.66 · 87 in stock | View | |
 | NTMFS5C442NT3G#C893878onsemi · SO-8FL | onsemi | SO-8FL | 85 | ₹629.56 · 85 in stock | View |
 | BSC145N04#C22436723KTP · PDFN5x6-8L | KTP | PDFN5x6-8L | 1,352 | ₹45.79 · 1,352 in stock | View |
 | TPH2R608NH,L1Q(M#C5379811TOSHIBA · SOP-8-Advance(5x6) | TOSHIBA | SOP-8-Advance(5x6) | 26,274 | ₹160.23 · 26,274 in stock | View |
 | NVMFS5C423NLAFT1G#C604593onsemi · SO-8FL | onsemi | SO-8FL | 44 | ₹351.01 · 44 in stock | View |
