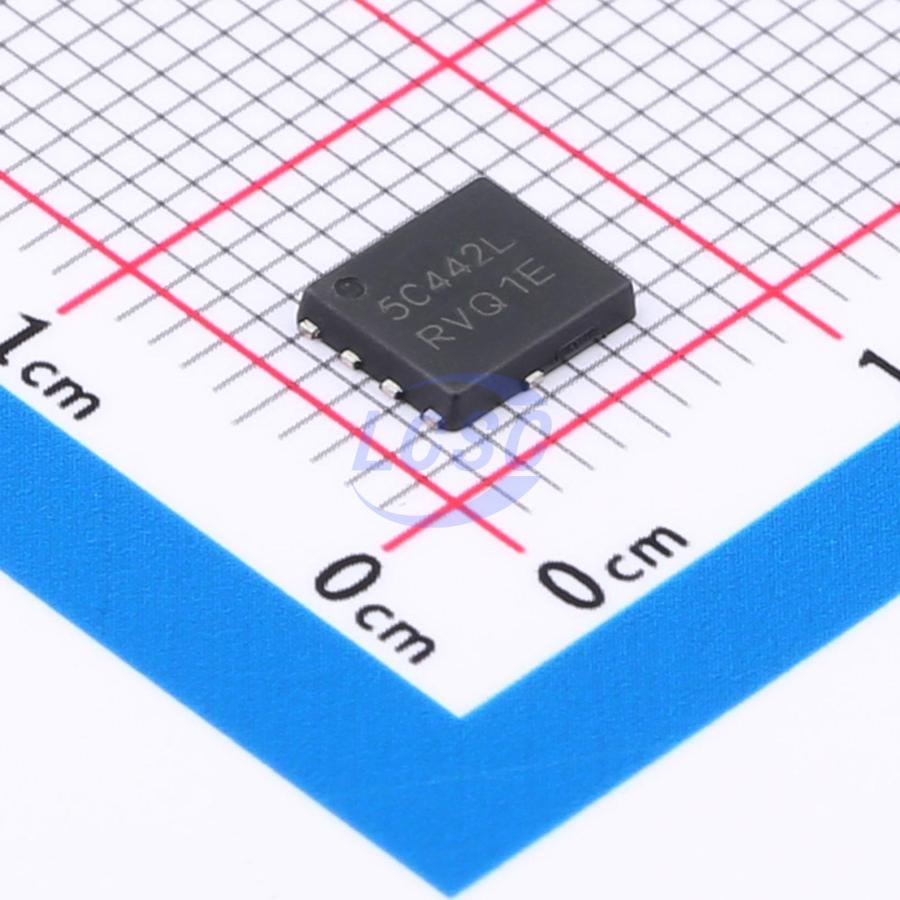

NVMFS5C442NLAFT1G
N-Channel 40V 29A 130A 3.7W 83W Surface Mount SO-8FL
SO-8FLROHS3 CompliantActive
MOSFET N-CH 40V 29A 130A SO-8FL
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C442NLAFT1G
- Store part #
- C606160
- Package / case
- SO-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C606160
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹237.28 | ₹237.28 |
| 10+ | ₹202.90 | ₹2,029.00 |
| 30+ | ₹181.34 | ₹5,440.20 |
| 100+ | ₹159.13 | ₹15,913.00 |
| 500+ | ₹149.13 | ₹74,565.00 |
| 1,500+ | ₹144.76 | ₹2,17,140.00 |
1 × ₹237.28
₹237.28
excl. GST
₹279.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C442NLAFT1G
₹237.28 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 3.7W;83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 29A;130A
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Key features
- Small Footprint <5x6 mm> for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- NVMFS5C442NLWF - Wettable Flank Option for Enhanced Optical Inspection
- AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
