HXY MOSFETDatasheet (PDF)

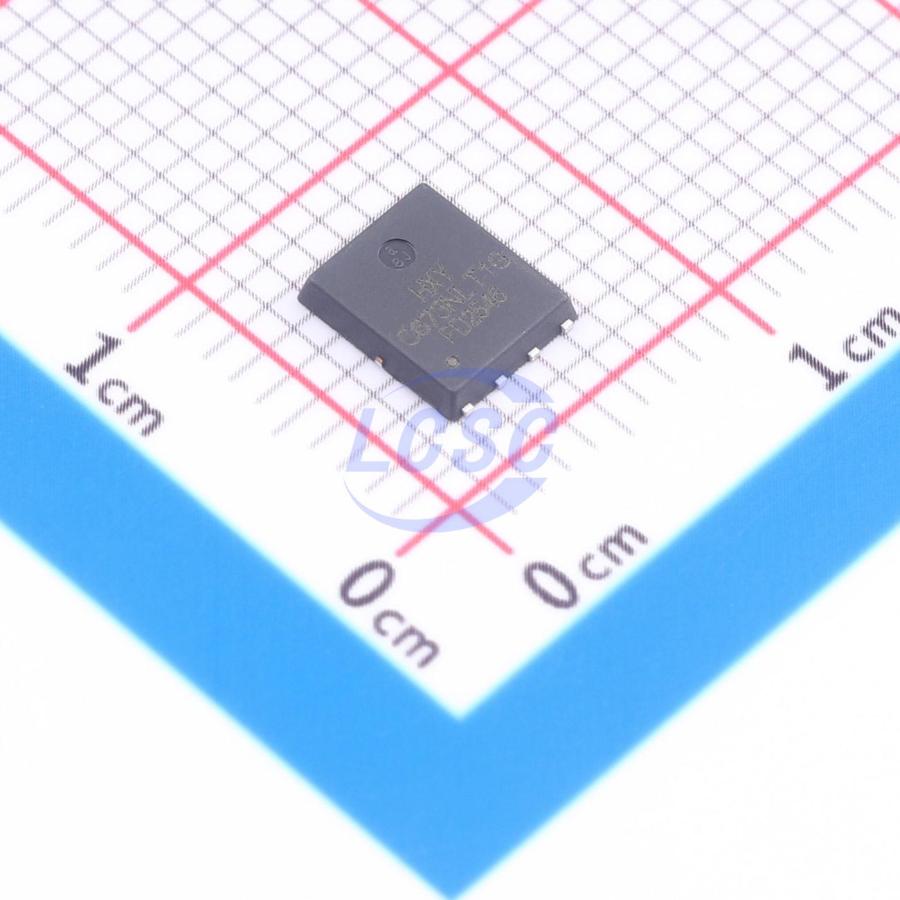

NVMFS5C673NLT1G-HXY
89W 60V 65A 8mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVMFS5C673NLT1G-HXY
- Store part #
- C53262874
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C53262874
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.29 | ₹65.29 |
| 10+ | ₹51.64 | ₹516.40 |
| 30+ | ₹45.97 | ₹1,379.10 |
| 100+ | ₹38.63 | ₹3,863.00 |
| 500+ | ₹35.48 | ₹17,740.00 |
| 1,000+ | ₹33.59 | ₹33,590.00 |
1 × ₹65.29
₹65.29
excl. GST
₹77.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVMFS5C673NLT1G-HXY
₹65.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 370pF
- Ciss-Input Capacitance
- 930pF
- Pd - Power Dissipation
- 89W
- Drain to Source Voltage
- 60V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 65A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.146 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC094N06LS5ATMA1-HXY#C53262840HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 460 | ₹107.11 · 460 in stock | View |
 | NVMFS5C673NLWFAFT1G-HXY#C53262848HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹130.37 · 48 in stock | View |
 | SIR4602LDP-T1-RE3-HXY#C53262853HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹106.53 · 48 in stock | View |
 | SIR4604DP-T1-GE3-HXY#C53262855HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 20 | ₹154.63 · 20 in stock | View |
 | BSC0704LSATMA1-HXY#C53262866HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 9 | ₹73.03 · 9 in stock | View |
