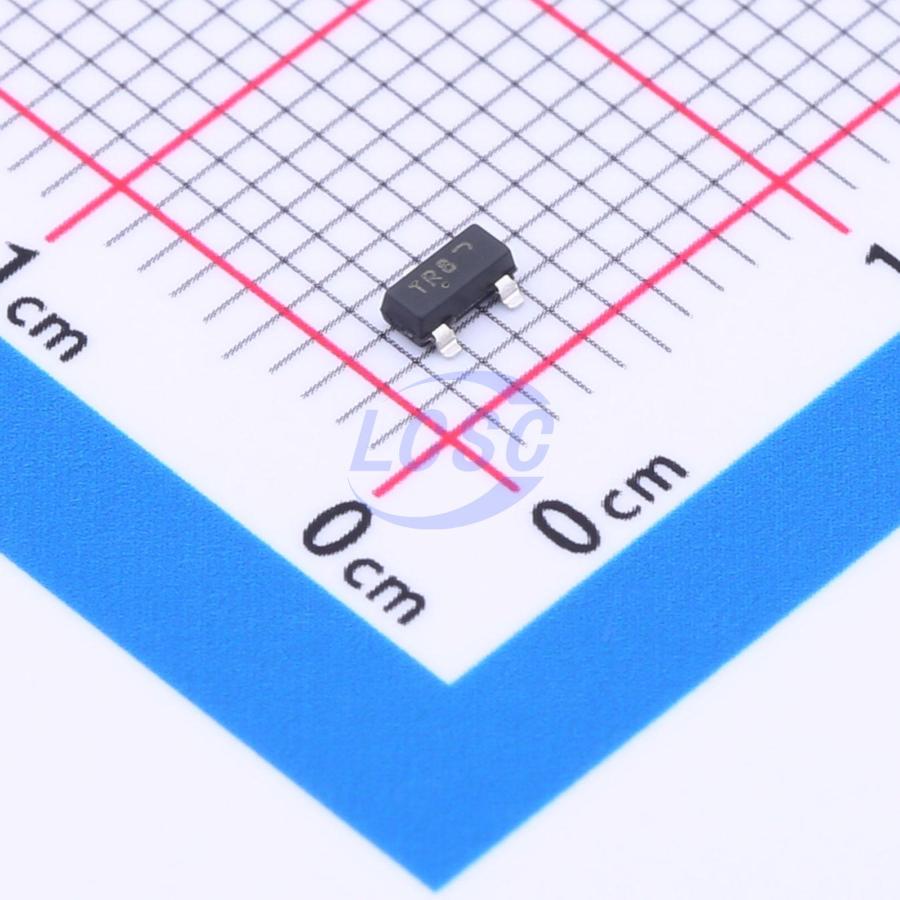

NVR4003NT3G
N-Channel 30V 0.56A 0.83W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 0.56A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- NVR4003NT3G
- Store part #
- C236216
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C236216
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.77 | ₹233.85 |
| 50+ | ₹36.44 | ₹1,822.00 |
| 150+ | ₹32.00 | ₹4,800.00 |
| 500+ | ₹26.49 | ₹13,245.00 |
| 2,500+ | ₹24.03 | ₹60,075.00 |
| 5,000+ | ₹22.54 | ₹1,12,700.00 |
5 × ₹46.77
₹233.85
excl. GST
₹275.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
NVR4003NT3G
₹233.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 42pF
- Pd - Power Dissipation
- 830mW
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 560mA
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 2Ω@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.15nC@5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
Applications
- Notebooks: Level Shifters, Logic Switches, Low Side Load Switches
- Portable Applications
Key features
- Low Gate Voltage Threshold (VGS(TH)) to Facilitate Drive Circuit Design
- Low Gate Charge for Fast Switching
- ESD Protected Gate
- SOT−23 Package Provides Excellent Thermal Performance
- Minimum Breakdown Voltage Rating of 30 V
- NVR Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR4003NT3G#C146737onsemi · SOT-23 | onsemi | SOT-23 | 13,825 | ₹12.09 · 13,825 in stock | View |
 | NTR4003NT1G#C82325onsemi · SOT-23 | onsemi | SOT-23 | 45,480 | ₹9.02 · 45,480 in stock | View |
 | LNTR4003NLT1G#C2912039LRC · SOT-23 | LRC | SOT-23 | 2,700 | ₹4.72 · 2,700 in stock | View |
 | PJM2306NSA#C42431772PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 400 | ₹7.16 · 400 in stock | View |
 | SI2304#C51892138LGE · SOT-23 | LGE | SOT-23 | 2,600 | ₹4.38 · 2,600 in stock | View |
