HXY MOSFETDatasheet (PDF)

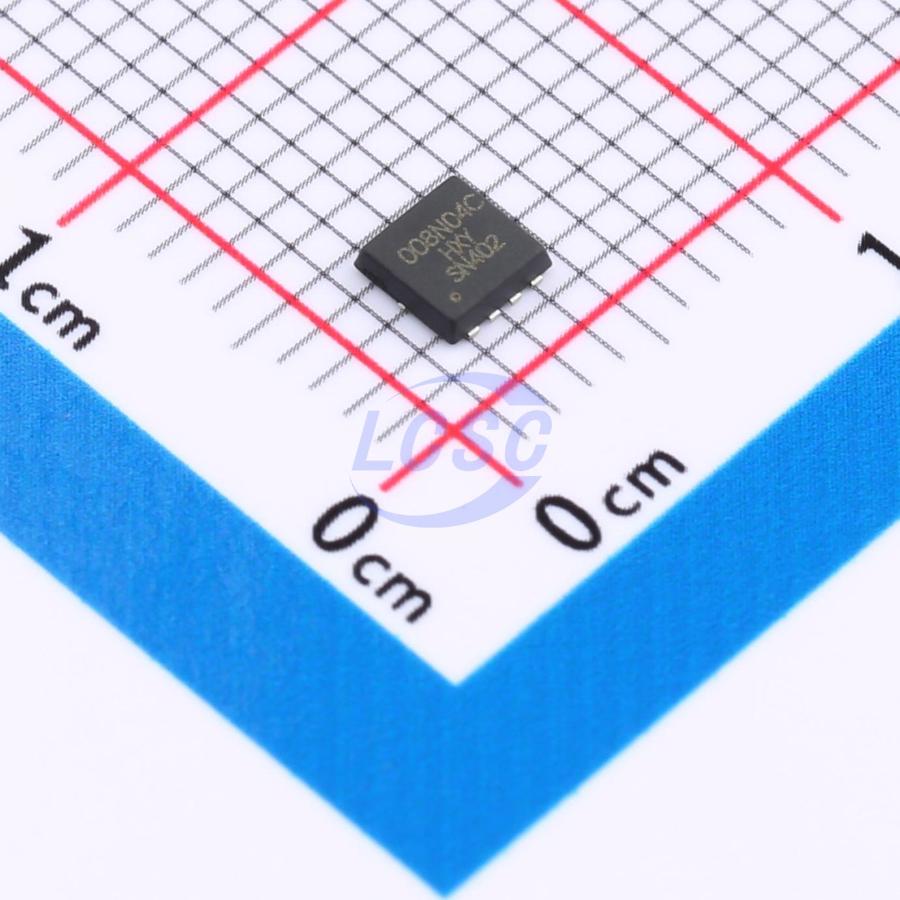

NVTFS008N04C-HXY
N-Channel 40V 60A 39W Surface Mount DFN3x3-8L
DFN3x3-8LROHS CompliantActive
MOSFET N-CH 40V 60A DFN3x3-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVTFS008N04C-HXY
- Store part #
- C22366983
- Package / case
- DFN3x3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C22366983
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.61 | ₹80.61 |
| 10+ | ₹64.44 | ₹644.40 |
| 30+ | ₹56.25 | ₹1,687.50 |
| 100+ | ₹48.08 | ₹4,808.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.72 | ₹40,720.00 |
1 × ₹80.61
₹80.61
excl. GST
₹95.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS008N04C-HXY
₹80.61 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 193pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 690pF
- Pd - Power Dissipation
- 39W
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVTFS5C478NL-HXY#C22367311HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 68 | ₹66.56 · 68 in stock | View |
 | NTTFS5C471NL-HXY#C22366981HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 78 | ₹76.27 · 78 in stock | View |
 | NTTFS5C466NL-HXY#C22366982HXY MOSFET · DFN-8(3x3) | HXY MOSFET | DFN-8(3x3) | 40 | ₹88.16 · 40 in stock | View |
 | NVTFS5C471NL-HXY#C22366984HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 159 | ₹74.59 · 159 in stock | View |
 | NVTFWS008N04C-HXY#C22366985HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 772 | ₹62.02 · 772 in stock | View |
