onsemiDatasheet (PDF)

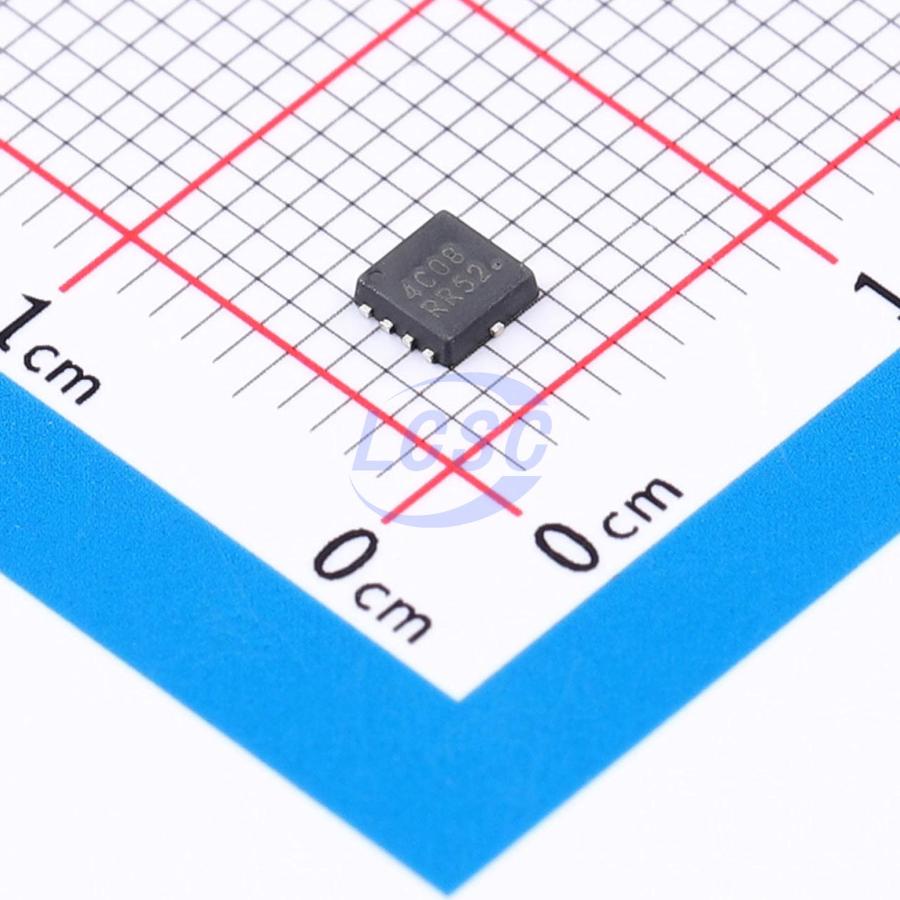

NVTFS4C08NTWG
31W 30V 17A 5.9mΩ@10V 1 N-channel N-Channel WDFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
WDFN-8(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFS4C08NTWG
- Store part #
- C896031
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C896031
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.66 | ₹198.66 |
| 10+ | ₹194.10 | ₹1,941.00 |
| 30+ | ₹191.27 | ₹5,738.10 |
| 100+ | ₹188.22 | ₹18,822.00 |
1 × ₹198.66
₹198.66
excl. GST
₹234.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS4C08NTWG
₹198.66 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 702pF
- Ciss-Input Capacitance
- 1.113nF
- Pd - Power Dissipation
- 31W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 5.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
Key features
- Low on-resistance RDS(on) for minimized conduction losses
- Low capacitance for minimized drive losses
- Optimized gate charge for minimized switching losses
- NVTFS4C08NWF - solderable flank variant
- NVT prefix for automotive and other applications with specific country-of-origin and change-control requirements; AEC-Q101 qualified with PPAP capability
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NTTFS4C06NTWG#C893912onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 7 | ₹336.17 · 7 in stock | View | |
 | NTTFS4C06NTAG#C900350onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 1,190 | ₹31.28 · 1,190 in stock | View |
 | E030N5P8ML1#C29781160Existar · PDFN3.3x3.3-8 | Existar | PDFN3.3x3.3-8 | 4,690 | ₹18.92 · 4,690 in stock | View |
 | NTTFS4C08NTAG#C154587onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 13 | ₹53.46 · 13 in stock | View |
 | SDM56AG04LV#C29780698SINEDEVICE · PDFN3.3x3.3-8L | SINEDEVICE | PDFN3.3x3.3-8L | 2 | ₹77.41 · 2 in stock | View |
