HXY MOSFETDatasheet (PDF)

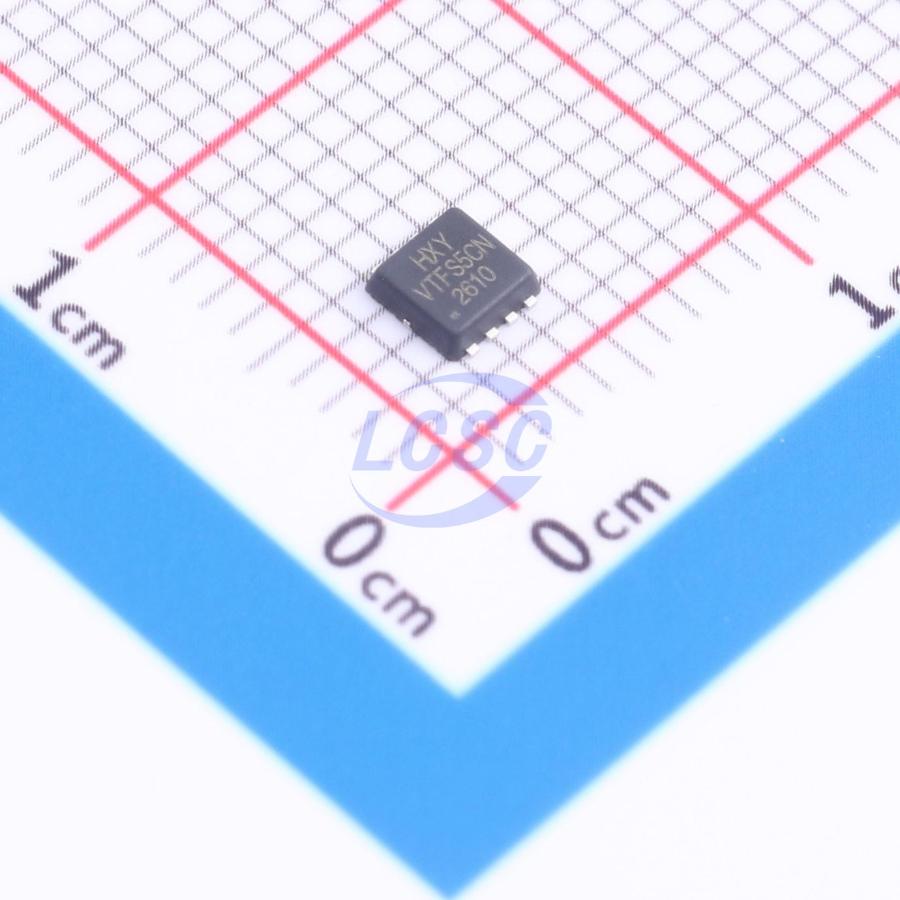

NVTFS5C460NLTAG-HXY
40V 70A 52W 4.2mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVTFS5C460NLTAG-HXY
- Store part #
- C54582769
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582769
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.08 | ₹119.08 |
| 10+ | ₹97.80 | ₹978.00 |
| 30+ | ₹87.05 | ₹2,611.50 |
| 100+ | ₹76.52 | ₹7,652.00 |
| 500+ | ₹62.76 | ₹31,380.00 |
| 1,000+ | ₹59.32 | ₹59,320.00 |
1 × ₹119.08
₹119.08
excl. GST
₹140.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS5C460NLTAG-HXY
₹119.08 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 233pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 152pF
- RDS(on)
- 4.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
The NVTFS5C460NLTAG utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 40V, drain current (ID) = 70A
- On-resistance (RDS(ON)) < 5.5mΩ at gate-source voltage (VGS) = 10V
