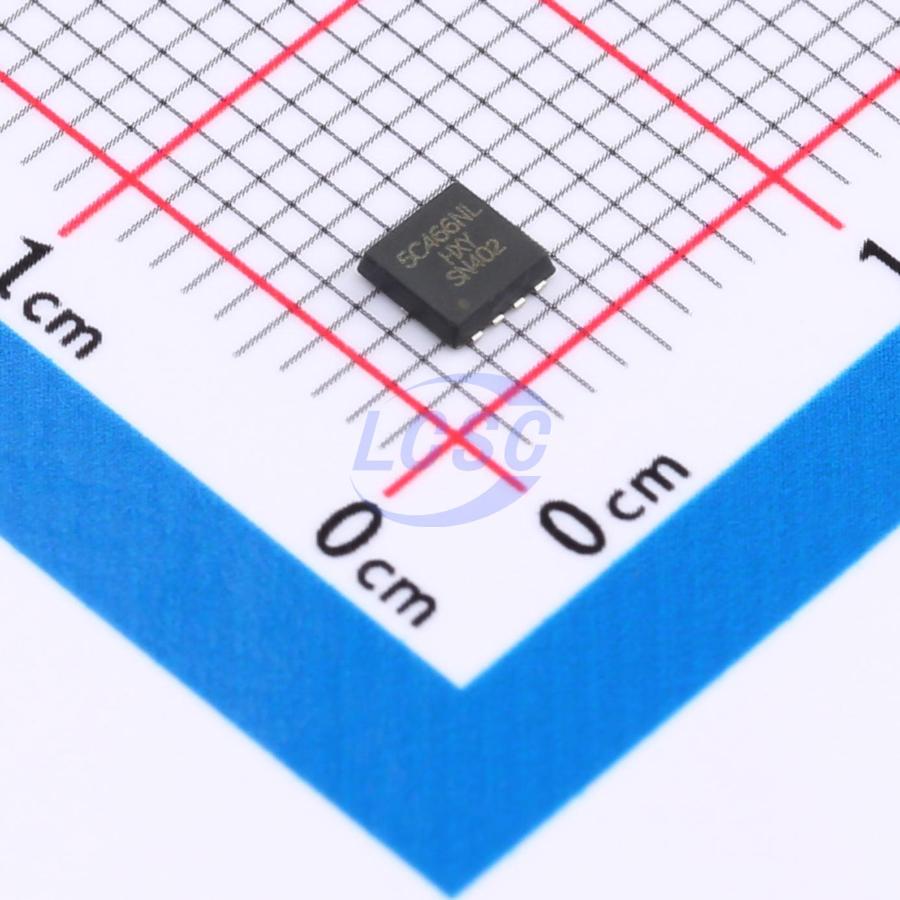

NVTFS5C466NL-HXY
N-Channel 40V 60A 39W Surface Mount DFN3x3-8L
DFN3x3-8LROHS CompliantActive
MOSFET N-CH 40V 60A DFN3x3-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NVTFS5C466NL-HXY
- Store part #
- C22366986
- Package / case
- DFN3x3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C22366986
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.84 | ₹64.84 |
| 10+ | ₹50.96 | ₹509.60 |
| 30+ | ₹44.89 | ₹1,346.70 |
| 100+ | ₹37.52 | ₹3,752.00 |
| 500+ | ₹34.27 | ₹17,135.00 |
| 1,000+ | ₹32.31 | ₹32,310.00 |
1 × ₹64.84
₹64.84
excl. GST
₹76.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS5C466NL-HXY
₹64.84 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 193pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 690pF
- Pd - Power Dissipation
- 39W
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 6.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS5C471NL-HXY#C22366981HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 78 | ₹76.27 · 78 in stock | View |
 | NVTFS5C471NL-HXY#C22366984HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 159 | ₹74.59 · 159 in stock | View |
 | NVTFS5C478NL-HXY#C22367311HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 68 | ₹66.56 · 68 in stock | View |
 | DMTH48M3SFVWQ-7-HXY#C48972164HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 290 | ₹51.17 · 290 in stock | View |
 | DMTH47M2LFVW-7-HXY#C48972165HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 60 | ₹46.49 · 60 in stock | View |
