VBsemi ElecDatasheet (PDF)

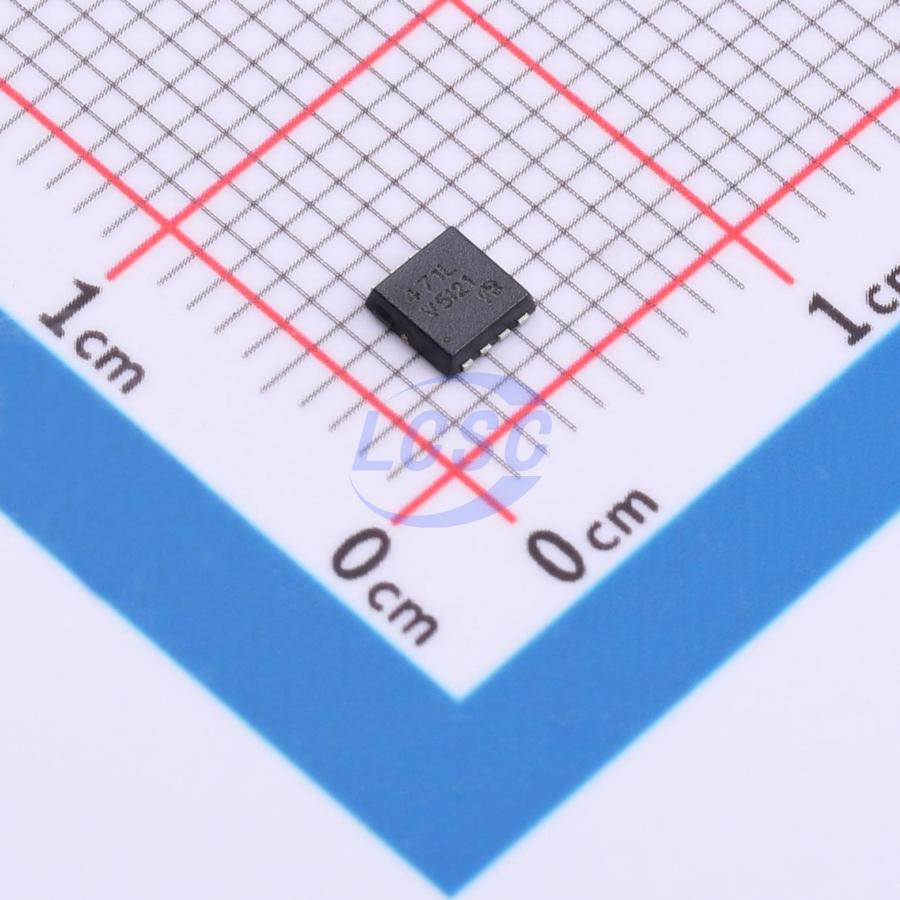

NVTFS5C471NLTAG-VB
23W 40V 30A 13mΩ@10V 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NVTFS5C471NLTAG-VB
- Store part #
- C52110085
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52110085
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.38 | ₹110.38 |
| 10+ | ₹91.00 | ₹910.00 |
| 30+ | ₹81.21 | ₹2,436.30 |
| 100+ | ₹71.63 | ₹7,163.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹110.38
₹110.38
excl. GST
₹130.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NVTFS5C471NLTAG-VB
₹110.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 23W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
Applications
- Synchronous rectification
- DC/DC converter
- Motor drive switch
- Battery and load switch
Key features
- Trench 4th generation power MOSFET
- Optimized for lowest R<sub>DS</sub> - Q<sub>oss</sub> figure of merit
- 100% R<sub>q</sub> and UIS tested
- Q<sub>gd</sub>/Q<sub>gs</sub> ratio <1, optimized switching characteristics
