onsemiDatasheet (PDF)

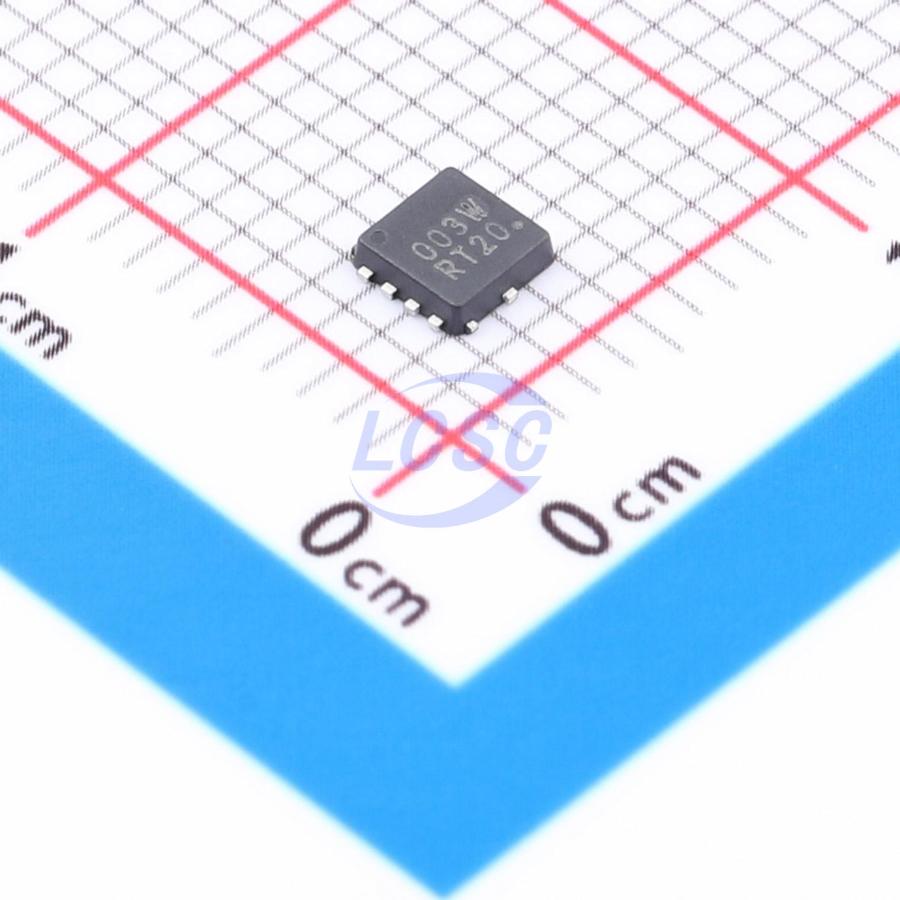

NVTFWS003N04XMTAG
52W 40V 98A 2.4mΩ@10V 1 N-channel N-Channel DFN-8(3.3x3.3) Single FETs, MOSFETs RoHS
DFN-8(3.3x3.3)ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVTFWS003N04XMTAG
- Store part #
- C46535459
- Package / case
- DFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C46535459
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.94 | ₹97.94 |
| 10+ | ₹95.82 | ₹958.20 |
| 30+ | ₹94.36 | ₹2,830.80 |
| 100+ | ₹93.09 | ₹9,309.00 |
1 × ₹97.94
₹97.94
excl. GST
₹115.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
NVTFWS003N04XMTAG
₹97.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 675pF
- Ciss-Input Capacitance
- 1.042nF
- Pd - Power Dissipation
- 52W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 98A
- Reverse Transfer Capacitance (Crss)
- 14pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.208 g
Overview
Applications
- Motor drive
- Battery protection
- Synchronous rectification
Key features
- Low on-resistance for minimized conduction losses
- Low capacitance for minimized drive losses
- Small footprint (3.3×3.3 mm) for compact designs
- AEC-Q101 qualified and PPAP capable
- Lead-free, halogen-free/bromine-free flame retardant, and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTTFS2D1N04HLTWG#C894100onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 1 | ₹500.76 · 1 in stock | View |
 | NVTFWS1D3N04XMTAG#C48614744onsemi · WDFNW-8(3.3x3.3) | onsemi | WDFNW-8(3.3x3.3) | 10 | ₹382.49 · 10 in stock | View |
| NVTFS003N04CTAG#C604632onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 79 | ₹233.64 · 79 in stock | View | |
 | XRS120N04D#C50314144XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 4,935 | ₹35.93 · 4,935 in stock | View |
 | AGM4025AP#C42411651AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 3,820 | ₹27.11 · 3,820 in stock | View |
