onsemiDatasheet (PDF)

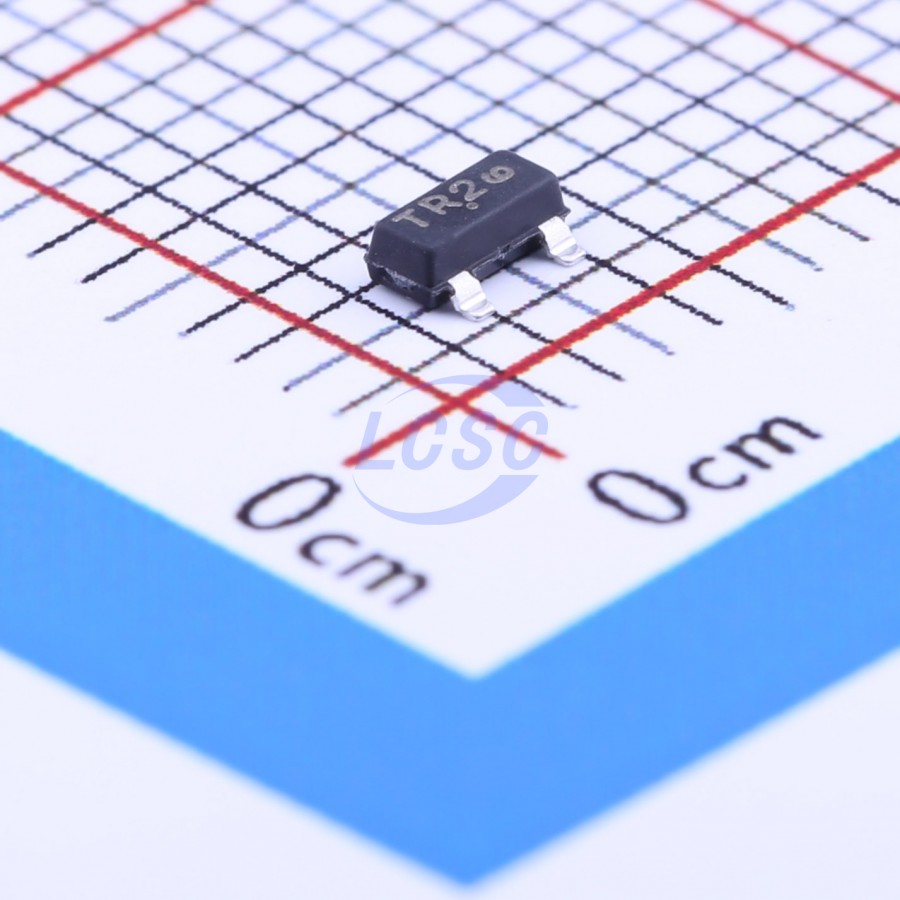

NVTR4502PT1G
P-Channel 30V 1.13A 0.4W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 30V 1.13A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- NVTR4502PT1G
- Store part #
- C146792
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,608 in stock
#C146792
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.95 | ₹55.95 |
| 10+ | ₹44.24 | ₹442.40 |
| 30+ | ₹39.25 | ₹1,177.50 |
| 100+ | ₹32.96 | ₹3,296.00 |
| 500+ | ₹30.14 | ₹15,070.00 |
| 1,000+ | ₹28.40 | ₹28,400.00 |
1 × ₹55.95
₹55.95
excl. GST
₹66.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVTR4502PT1G
₹55.95 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 400mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 1.13A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 155mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Applications
- DC to DC Conversion
- Load/Power Switch for Portables and Computing
- Motherboard, Notebooks, Camcorders, Digital Camera’s
- Battery Charging Circuits
Key features
- Leading Planar Technology for Low Gate Charge/Fast Switching
- Low RDS(ON) for Low Conduction Losses
- SOT−23 Surface Mount for Small Footprint (3 x 3 mm)
- NV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR4502PT1G#C12325onsemi · SOT-23 | onsemi | SOT-23 | 11,925 | ₹17.94 · 11,925 in stock | View |
 | SI2303-TP#C133325MCC · SOT-23 | MCC | SOT-23 | 1,930 | ₹14.66 · 1,930 in stock | View |
 | FDN360P#C124463onsemi · SOT-23 | onsemi | SOT-23 | 8,925 | ₹33.04 · 8,925 in stock | View |
 | LP9435LT1G#C383257LRC · SOT-23 | LRC | SOT-23 | 2,290 | ₹8.03 · 2,290 in stock | View |
 | SI2307CDS-T1-GE3#C141561VISHAY · SOT-23 | VISHAY | SOT-23 | 4,480 | ₹34.86 · 4,480 in stock | View |
