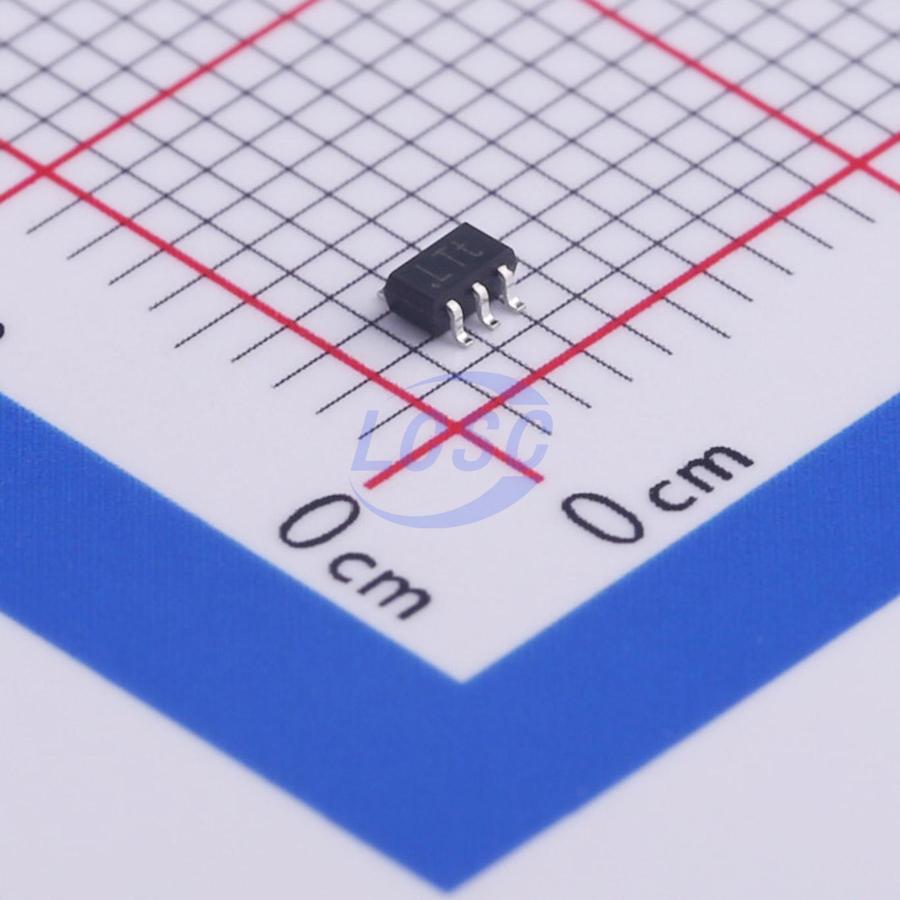

Nexperia

NX7002BKSX

N-Channel Array 60V Surface Mount TSSOP-6-1.3mm

TSSOP-6-1.3mmROHS3 CompliantActive

MOSFET N-CH ARR 60V TSSOP-6-1.3mm

Manufacturer: Nexperia
Manufacturer part #: NX7002BKSX
Store part #: C478153
Package / case: TSSOP-6-1.3mm
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C478153

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.14	₹55.70
50+	₹8.92	₹446.00
150+	₹7.79	₹1,168.50
500+	₹6.96	₹3,480.00
3,000+	₹6.30	₹18,900.00
6,000+	₹5.97	₹35,820.00

Quantity (min 5, multiples of 5)

5 × ₹11.14

₹55.70

excl. GST

₹65.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NX7002BKSX

₹55.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 4.6pF
Ciss-Input Capacitance: 23.6pF
Pd - Power Dissipation: 320mW
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 60V
Current - Continuous Drain(Id): 240mA
Reverse Transfer Capacitance (Crss): 3pF
RDS(on): 2.8Ω@10V
Number: 2 N-Channel
Gate Charge(Qg): 1nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.1V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.014 g

Overview

Dual N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Applications

Relay driver
High-speed line driver
Low-side loadswitch Switching circuits

Key features

Logic-level compatible
Very fast switching
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection > 2 kV HBM

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NTJD5121NT1G#C15215onsemi · SC-88	onsemi	SC-88	9,410	₹11.21 · 9,410 in stock	View
2N7002DW-TP#C194045MCC · SOT-363	MCC	SOT-363	2,980	₹10.29 · 2,980 in stock	View
NVJD5121NT2G#C5205663onsemi · SC-88-6	onsemi	SC-88-6	93	₹25.94 · 93 in stock	View
DMN65D8LDWQ-7#C3001625DIODES · SOT-363	DIODES	SOT-363	5	₹14.01 · 5 in stock	View
2N7002BKS,115#C68181Nexperia · SOT-363(SC-88)	Nexperia	SOT-363(SC-88)	59,030	₹9.82 · 59,030 in stock	View
