NexperiaDatasheet (PDF)

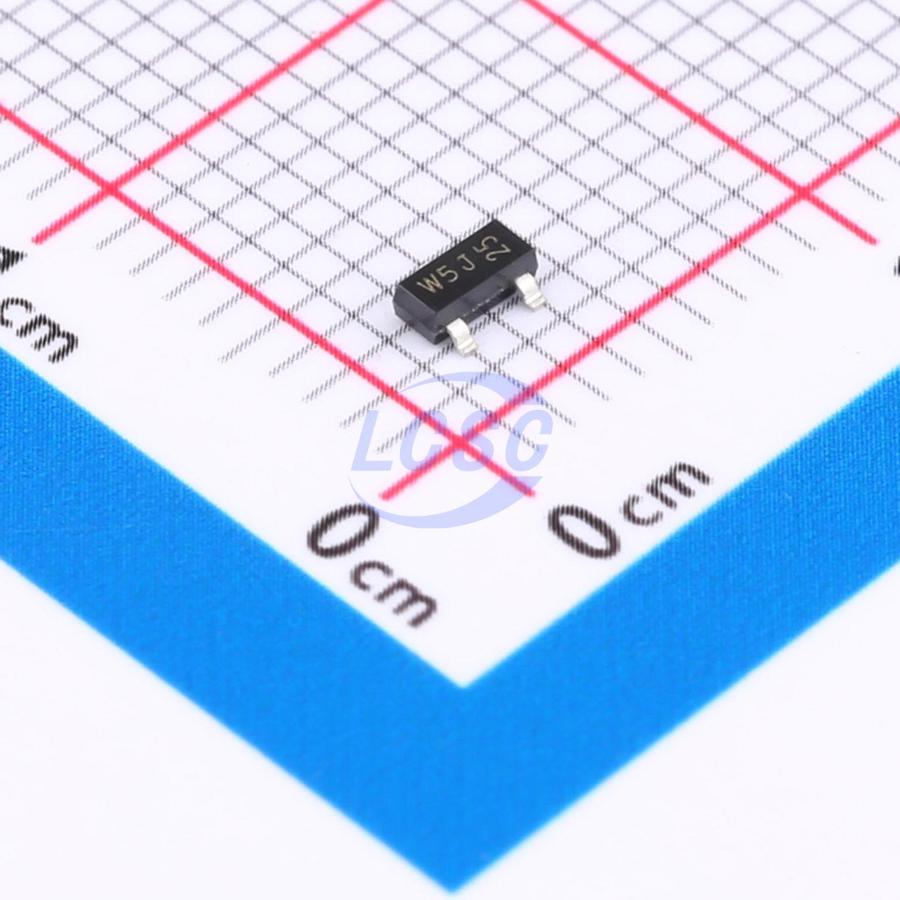

NXV40UNR
N-Channel 20V 2.5A 480mW Surface Mount TO-236AB
TO-236ABROHS3 CompliantActive
MOSFET N-CH 20V 2.5A TO-236AB
- Manufacturer
- Nexperia
- Manufacturer part #
- NXV40UNR
- Store part #
- C3280963
- Package / case
- TO-236AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C3280963
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.37 | ₹146.85 |
| 50+ | ₹23.03 | ₹1,151.50 |
| 150+ | ₹20.31 | ₹3,046.50 |
| 500+ | ₹16.91 | ₹8,455.00 |
| 3,000+ | ₹15.40 | ₹46,200.00 |
| 6,000+ | ₹14.49 | ₹86,940.00 |
5 × ₹29.37
₹146.85
excl. GST
₹173.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NXV40UNR
₹146.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 2.5A
- Ciss-Input Capacitance
- 347pF
- Pd - Power Dissipation
- 480mW
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.104 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- Low-side load switch
- Switching circuits
Key features
- Low threshold voltage
- Very fast switching
- Trench MOSFET technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2302B#C52117627TWGMC · SOT-23 | TWGMC | SOT-23 | 3,600 | ₹1.46 · 3,600 in stock | View |
 | YJL03N06C#C5339868YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 9,380 | ₹6.72 · 9,380 in stock | View |
 | SI2302-MS#C22399255MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,100 | ₹1.60 · 1,100 in stock | View |
 | DMG3414U-7-VB#C18212474VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹8.82 · 10 in stock | View |
 | NTR4501NT3G-VB#C22389050VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 90 | ₹8.97 · 90 in stock | View |
