NexperiaDatasheet (PDF)

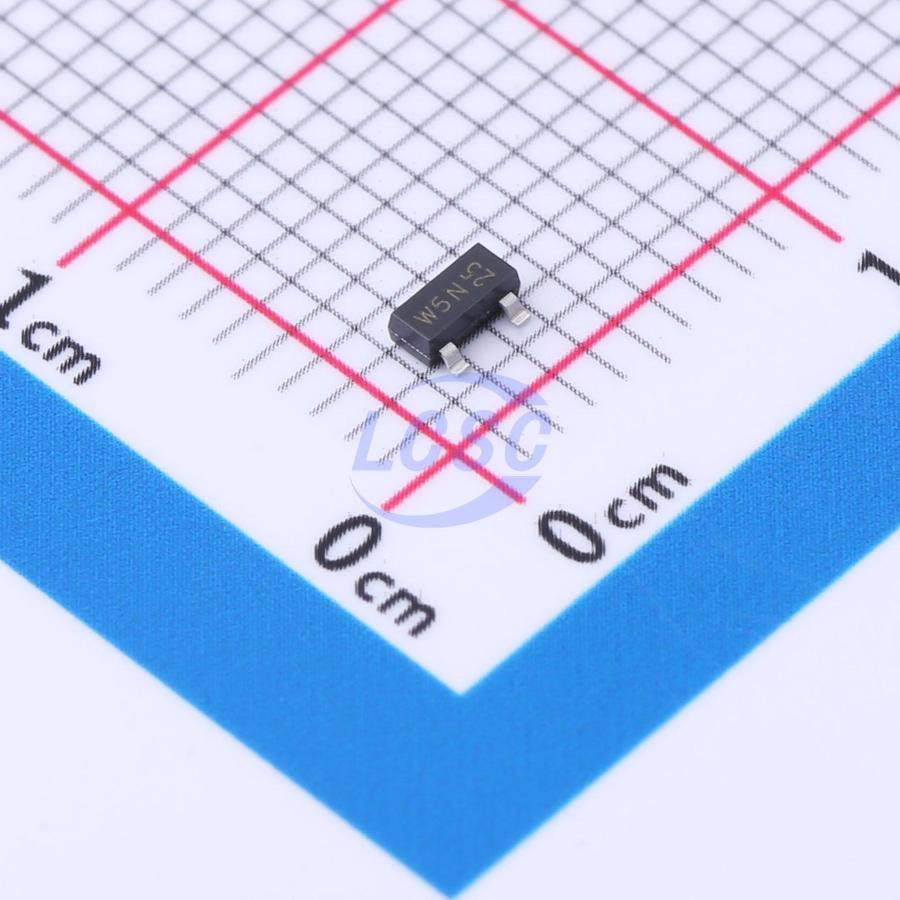

NXV90EPR
P-Channel 30V 1.5A 2.1W Surface Mount TO-236AB
TO-236ABROHS3 CompliantActive
MOSFET P-CH 30V 1.5A TO-236AB
- Manufacturer
- Nexperia
- Manufacturer part #
- NXV90EPR
- Store part #
- C3280961
- Package / case
- TO-236AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C3280961
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.25 | ₹156.25 |
| 50+ | ₹24.66 | ₹1,233.00 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹17.54 | ₹8,770.00 |
| 3,000+ | ₹15.97 | ₹47,910.00 |
| 6,000+ | ₹15.03 | ₹90,180.00 |
5 × ₹31.25
₹156.25
excl. GST
₹184.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NXV90EPR
₹156.25 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 39pF
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 252pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- High-side load switch
- Switching circuits
Key features
- Logic-level compatible
- Very fast switching
- Trench MOSFET technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2309CES-T1_GE3#C22382280VISHAY · SOT-23 | VISHAY | SOT-23 | 4,550 | ₹43.20 · 4,550 in stock | View |
 | VB2355#C416212VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 2,445 | ₹15.20 · 2,445 in stock | View |
 | SI2303#C42395460GOODWORK · SOT-23 | GOODWORK | SOT-23 | 3,720 | ₹4.21 · 3,720 in stock | View |
 | SQ2309ES-T1_GE3#C85137VISHAY · SOT-23 | VISHAY | SOT-23 | 6,442 | ₹59.51 · 6,442 in stock | View |
 | SQ2303ES-T1_GE3#C142519VISHAY · SOT-23 | VISHAY | SOT-23 | 107 | ₹134.34 · 107 in stock | View |
