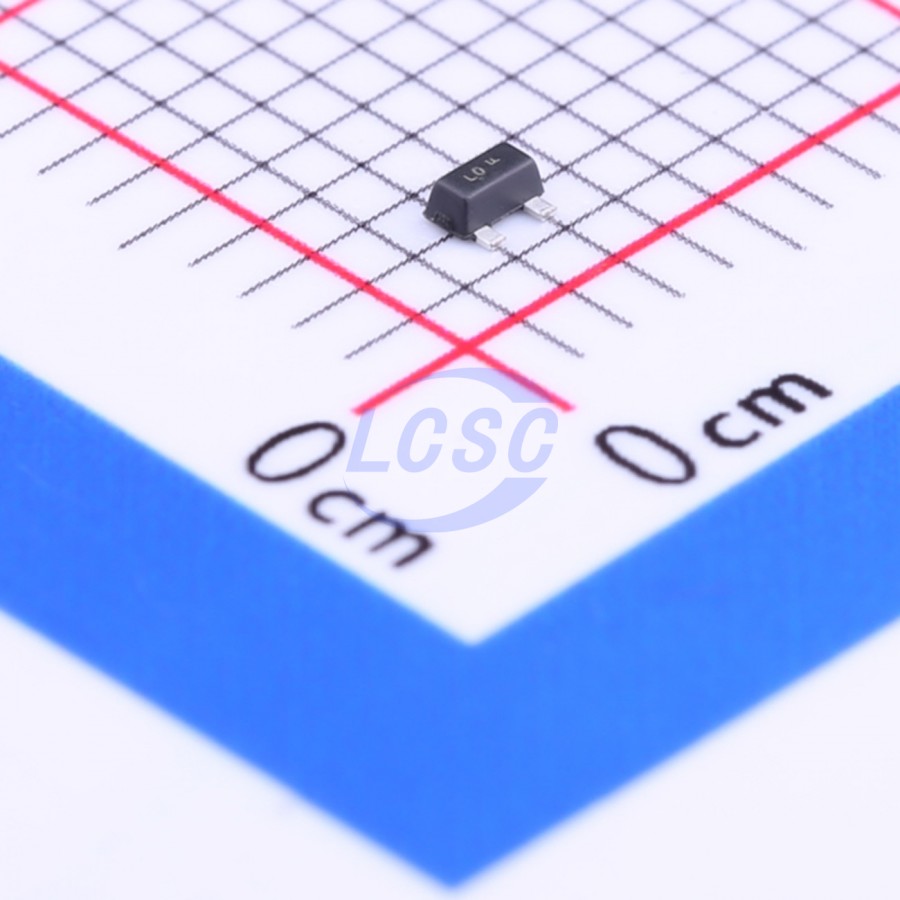

NZL5V6AXV3T1G
7VC Clamp 4.8A@8/20us Ipp ESD DIODE SC-89-3
ESD DIODE 3VWM 7VC SC-89-3
- Manufacturer
- onsemi
- Manufacturer part #
- NZL5V6AXV3T1G
- Store part #
- C233485
- Package / case
- SC-89-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C233485
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.70 | ₹98.50 |
| 50+ | ₹17.37 | ₹868.50 |
| 150+ | ₹16.38 | ₹2,457.00 |
| 500+ | ₹15.14 | ₹7,570.00 |
| 3,000+ | ₹14.58 | ₹43,740.00 |
| 6,000+ | ₹14.25 | ₹85,500.00 |
5 × ₹19.70
₹98.50
excl. GST
₹116.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NZL5V6AXV3T1G
₹98.50 for 5 + GST
Specifications
- Clamping Voltage
- 10.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Voltage - Breakdown
- 5.6V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
These dual monolithic silicon ESD protection diodes are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- computers
- printers
- business machines
- communication systems
- medical equipment
Key features
- SC−89 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
- ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
- Meets IEC61000−4−2 Level 4
- Low Leakage <5.0 μA
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
