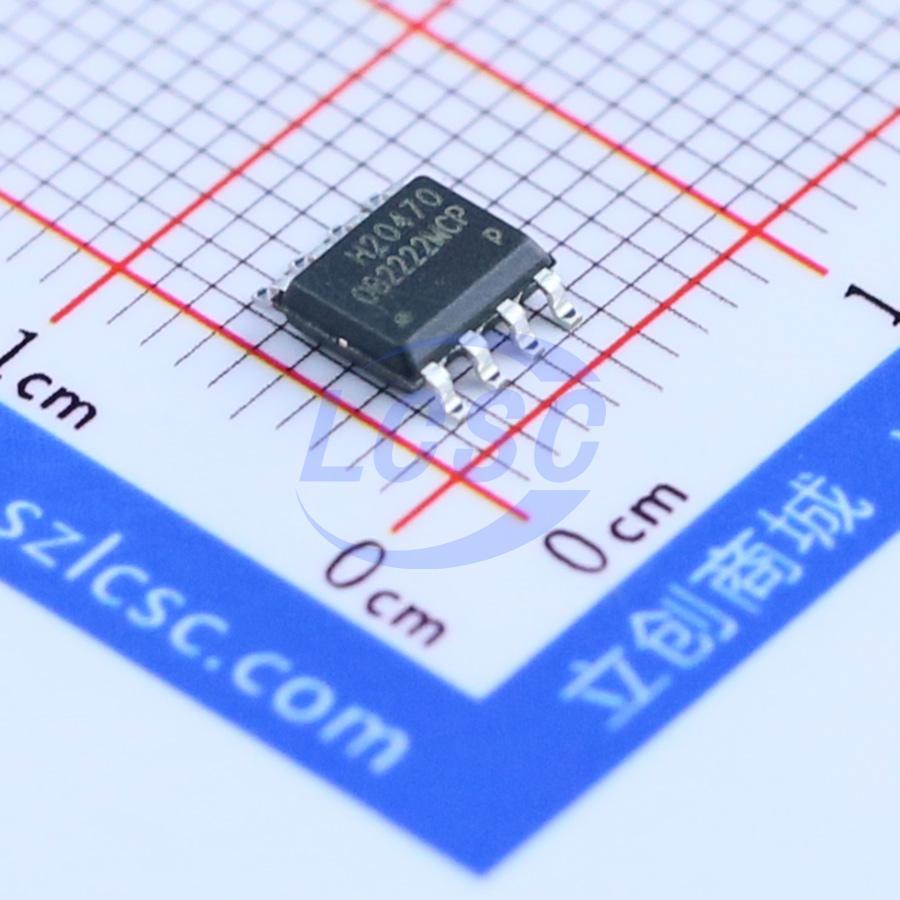

OB2222MCPA
300mA 36kHz~44kHz 700V 4.5V~6V 5V SOP-8-150mil AC DC Converters, Offline Switchers
SOP-8-150milRoHSActive
- Manufacturer
- OB
- Manufacturer part #
- OB2222MCPA
- Store part #
- C89629
- Package / case
- SOP-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,065 in stock
#C89629
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.03 | ₹85.15 |
| 50+ | ₹15.00 | ₹750.00 |
| 150+ | ₹14.00 | ₹2,100.00 |
| 500+ | ₹13.24 | ₹6,620.00 |
| 2,500+ | ₹12.63 | ₹31,575.00 |
| 4,000+ | ₹12.33 | ₹49,320.00 |
5 × ₹17.03
₹85.15
excl. GST
₹100.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OB2222MCPA
₹85.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 300mA
- Frequency - Switching
- 36kHz~44kHz
- Voltage - Breakdown
- 700V
- Voltage - Supply
- 4.5V~6V
- Features
- Light load efficient mode;EMI optimization (spread spectrum);Audio noise elimination;Leading edge blanking;Under-voltage lockout;Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
- Topology
- Buck;Buck-Boost
- Output Voltage
- 5V
- Duty Cycle(Max)
- 15%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.131 g
Overview
OB2222M is a high performance, high precision and low cost PWM Power switch for non-isolated buck and buck-boost application. It combines a dedicated current mode PWM controller with a high voltage power Bipolar in SOP8 package. Its built-in error amplifier is optimized for good overshoot and dynamic response for low cost and component count. With precise inner resistor divider, precise reference of EA, constant voltage regulation of 5.0V at universal AC input can be guaranteed. Frequency reduction and burst mode control is implemented for high efficiency at light load. Good EMI performance is achieved with On-Bright proprietary frequency shuffling technique and soft base driver design. Low startup current and low operating current contribute to a reliable power on startup and low standby power consumption with OB2222M. Constant power operation is supported at over load application with OB2222M, which makes it suitable for small home appliance application where instant large power consumption is required such as start-up of a fan. OB2222M is a cost effective PWM power switch optimized for off-line non-isolated buck or buckboost applications for small home appliances and linear regulator replacement. It operates in current mode and regulates output voltage with dedicated features. High integration can afford low cost and component count solution.
Applications
- Low power AC/DC offline SMPS for Small home appliance
- Linear regulator/RCC replacement
Key features
- Universal AC input range and 5.0V output voltage
- Constant power mode operation at over load application
- Low cost and less BOM for buck and buckboost applications
- Current mode control
- 40kHz (typical) maximum switching frequency
- Frequency-reduction and burst mode control for high efficiency
- Frequency shuffling for EMI improvement
- Power on soft-start
- Built-in Leading Edge Blanking (LEB)
- Cycle-by-cycle current limiting
- FB pin open loop protection
- Output short-circuit protection
- VDD Under Voltage Lockout with Hysteresis
- VDD OVP
- On-Chip OTP
