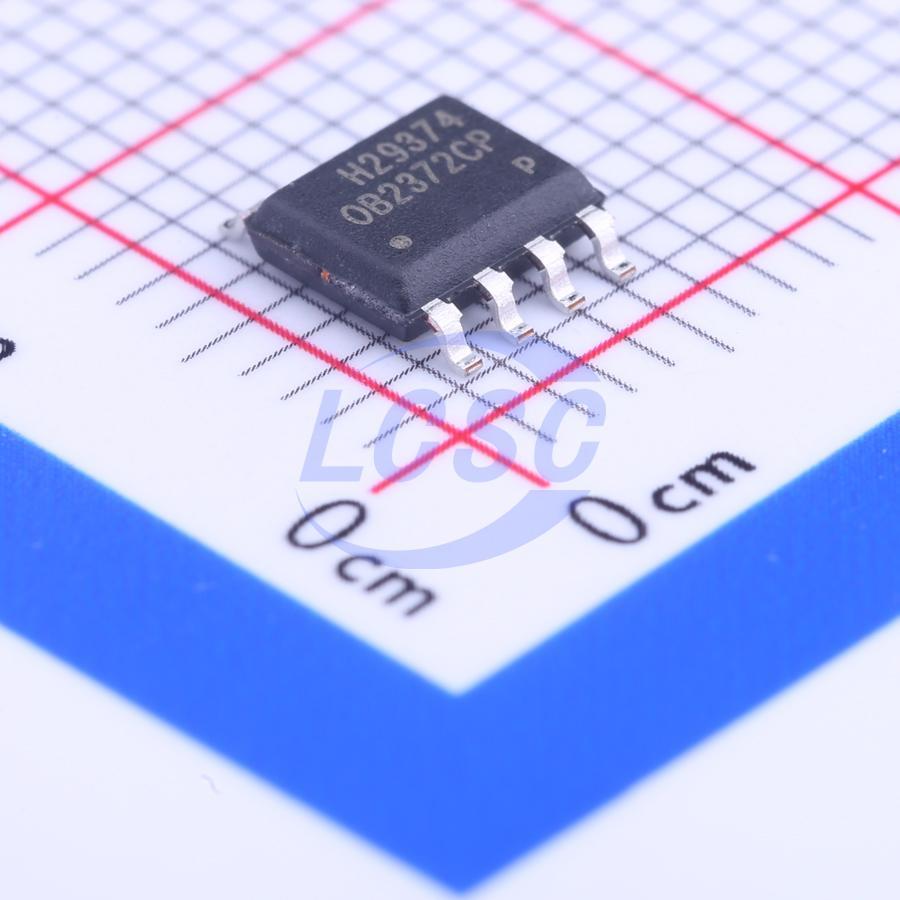

OB2372CPA

60kHz~70kHz 9V~22V Flyback SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

High Performance CCM/QR mode Primary-Side Controller

Manufacturer: OB
Manufacturer part #: OB2372CPA
Store part #: C131101
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,230 in stock

#C131101

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹47.30	₹236.50
50+	₹39.31	₹1,965.50
150+	₹35.88	₹5,382.00
500+	₹31.61	₹15,805.00
2,500+	₹29.70	₹74,250.00
4,000+	₹28.56	₹1,14,240.00

Quantity (min 5, multiples of 5)

5 × ₹47.30

₹236.50

excl. GST

₹279.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB2372CPA

₹236.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃
Frequency - Switching: 60kHz~70kHz
Voltage - Supply: 9V~22V
Topology: Flyback
Features: Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 68%
Feedback System: Primary-side feedback
Working Mode: CCM;QR

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g

Overview

OB2372 is an excellent primary side regulation controller with CC/CV operation for medium level power AC/DC charger and adapter applications. The device directly drives a power MOSFET and operates in CCM/QR mode to provide high efficiency along with several functions of built-in protections. It removes the need for secondary feedback circuitry to lower the total bill of material cost. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated. OB2372 is an excellent integrated multi-mode PWM controller optimized for off-line middle power AC/DC applications. It operates in continuous conduction mode (CCM) and quasi-resonant mode (QR) to provide high efficiency with primary side sensing and regulation thus provide cost effective solution for energy efficient power supplies. Proprietary built-in CV and CC control can achieve high precision CC/CV control meeting most charger application requirements.

Applications

Cell phone charger
Tablet PC
AC/DC adapter
Set-top box power supplies

Key features

Primary-side sensing and regulation operates in CCM/QR mode without TL431 and opto-coupler
High precision constant voltage and current regulation at universal AC input
Fixed frequency (65kHz) CCM mode operation with low line voltage at full load
Quasi-resonant operation for high efficiency in high line voltage
Good dynamic response
Programmable CV and CC regulation
Built-in primary winding inductance compensation
Programmable cable drop compensation
Built-in control loop compensation
External over temperature protection with latch shutdown (OTP)
Audio noise free operation
Built-in leading edge blanking (LEB)
Ultra low start-up current and low operating current
Comprehensive protection coverage with auto-recovery
VDD over voltage protection (OVP)
VDD under voltage lockout with hysteresis (UVLO)
Cycle-by-cycle current limiting
Feedback open loop protection (OLP)
Output short circuit protection (SCP)
