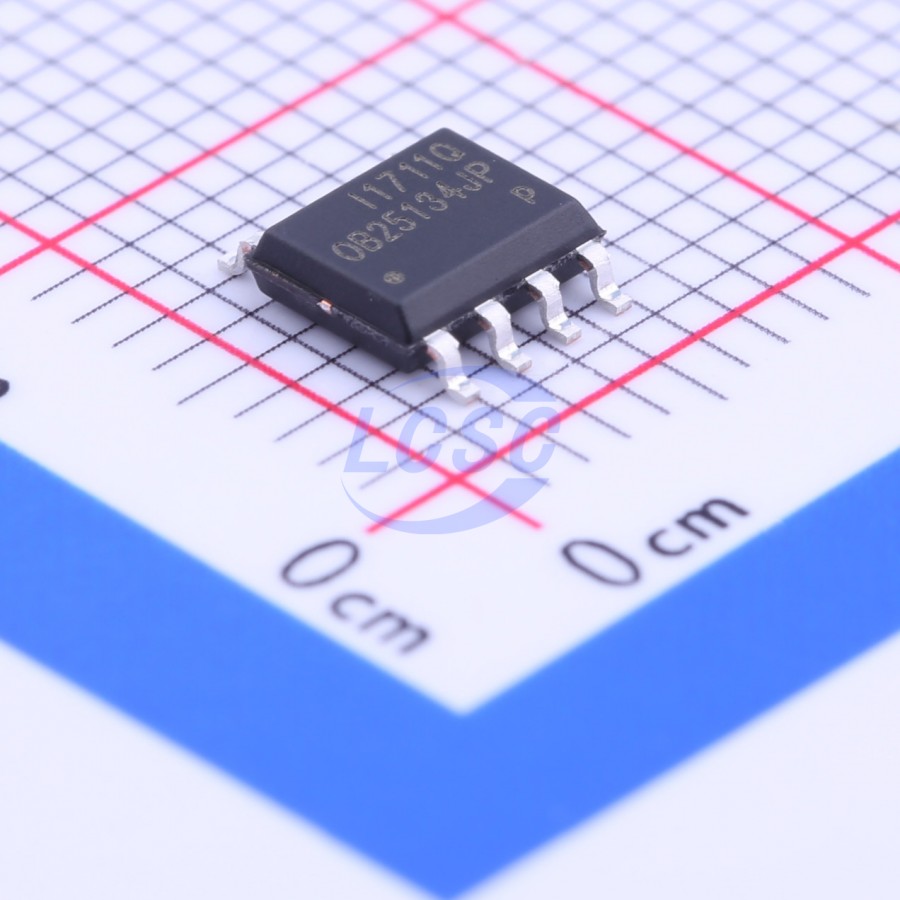

OB25134JPA
800V 5V~16V Flyback SOIC-7 AC DC Converters, Offline Switchers
SOIC-7RoHSActive
High Precision CC/CV Primary-Side PWM Power Switch
- Manufacturer
- OB
- Manufacturer part #
- OB25134JPA
- Store part #
- C138842
- Package / case
- SOIC-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,950 in stock
#C138842
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.98 | ₹114.90 |
| 50+ | ₹17.82 | ₹891.00 |
| 150+ | ₹15.60 | ₹2,340.00 |
| 500+ | ₹12.85 | ₹6,425.00 |
| 2,500+ | ₹11.62 | ₹29,050.00 |
| 4,000+ | ₹10.88 | ₹43,520.00 |
5 × ₹22.98
₹114.90
excl. GST
₹135.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OB25134JPA
₹114.90 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Voltage - Breakdown
- 800V
- Voltage - Supply
- 5V~16V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection;Over Current Protection
- Working Mode
- PFM Modulation;PWM Modulation
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.095 g
Overview
OB2513x is a high performance offline PSR power switch for low power AC/DC charger and adapter applications. It operates in primary- side sensing and regulation. Consequently, opto- coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated. In CC control, the current and output power setting can be adjusted externally by the sense resistor Rs at CS pin. In CV control, multi- mode operations are utilized to achieve high performance and high efficiency. In addition, good load regulation is achieved by the built- in cable drop compensation. Device operates in PFM in CC mode as well at large load condition and it operates in PwM with frequency reduction at light/medium load. The chip consumes very low operation current, it can achieve less than 75mW standby power. OB2513x offers comprehensive protection coverage with auto- recovery features including Cycle- by- Cycle current limiting, VDD over voltage protection, short circuit protection, built- in leading edge blanking, VDD under voltage lockout (UVLO), OTP etc. OB2513x is offered in SOP7 package.
Applications
- Low Power AC/DC offline SMPS for
- Cell Phone Charger
- Digital Cameras Charger
- Small Power Adapter
- Auxiliary Power for PC, TV etc.
- Linear Regulator/RCC Replacement
Key features
- Primary- side sensing and regulation without TL431 and opto- coupler
- High precision constant voltage and current regulation at universal AC input
- Multi- mode PWM/PFM operation for efficiency improving
- Good dynamic response
- Programmable CV and CC regulation
- Built- in line voltage and primary winding inductance compensation
- Programmable cable drop compensation
- No need for control loop compensation
- Audio noise free operation
- Internal BJT switch
- Built- in leading edge blanking (LEB)
- Comprehensive protection coverage with auto- recovery
- VDD over voltage protection
- VDD under voltage lockout with hysteresis (UVLO)
- Cycle- by- cycle current limiting
- Feedback loop open protection
- Output short circuit protection
- Over temperature protection (OTP)
