OCXDatasheet (PDF)

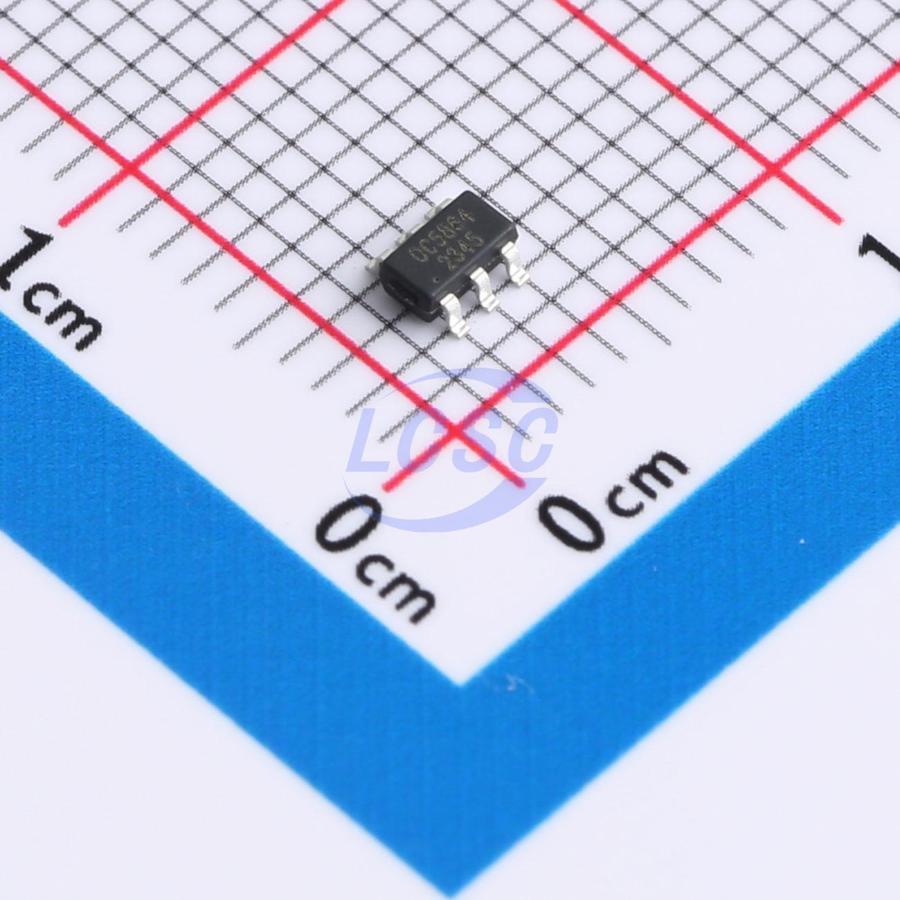

OC5864
Buck Switching Regulator IC Adjustable 1 Output 600mA SOT-23-6
SOT-23-6ROHS CompliantActive
60V 0.6A 500kHz Buck Converter
- Manufacturer
- OCX
- Manufacturer part #
- OC5864
- Store part #
- C2887144
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,200 in stock
#C2887144
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.17 | ₹105.85 |
| 50+ | ₹16.71 | ₹835.50 |
| 150+ | ₹14.79 | ₹2,218.50 |
| 500+ | ₹12.41 | ₹6,205.00 |
| 3,000+ | ₹11.34 | ₹34,020.00 |
| 6,000+ | ₹10.70 | ₹64,200.00 |
5 × ₹21.17
₹105.85
excl. GST
₹124.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OC5864
₹105.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
OC5864 is a monolithic step-down switching mode converter with integrated power MOSFET. The OC5864 delivers 0.6A peak output current over a wide 5.5–60V input voltage range, with excellent line and load regulation. The OC5864 operates in PWM current mode, enabling easy loop stabilization and fast transient response. The OC5864 integrates protection features including cycle-by-cycle current limiting and thermal shutdown. The OC5864 is available in a SOT23-6 package with minimal external components. The OC5864 is a current mode buck regulator in which the EA output voltage is proportional to the peak inductor current. The OC5864 features a built-in 0.6ms soft-start, which prevents output voltage overshoot during startup.
Applications
- Energy meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
Key features
- 0.6A peak output current
- 0.9Ω internal power MOSFET
- Large output capacitor startup capable
- Stable with low-ESR ceramic capacitor output
- Up to 90% efficiency
- Fixed 500kHz frequency
- Thermal shutdown
- Cycle-by-cycle overcurrent protection
- Wide input voltage range: 5.5~60V
- SOT23-6 package
