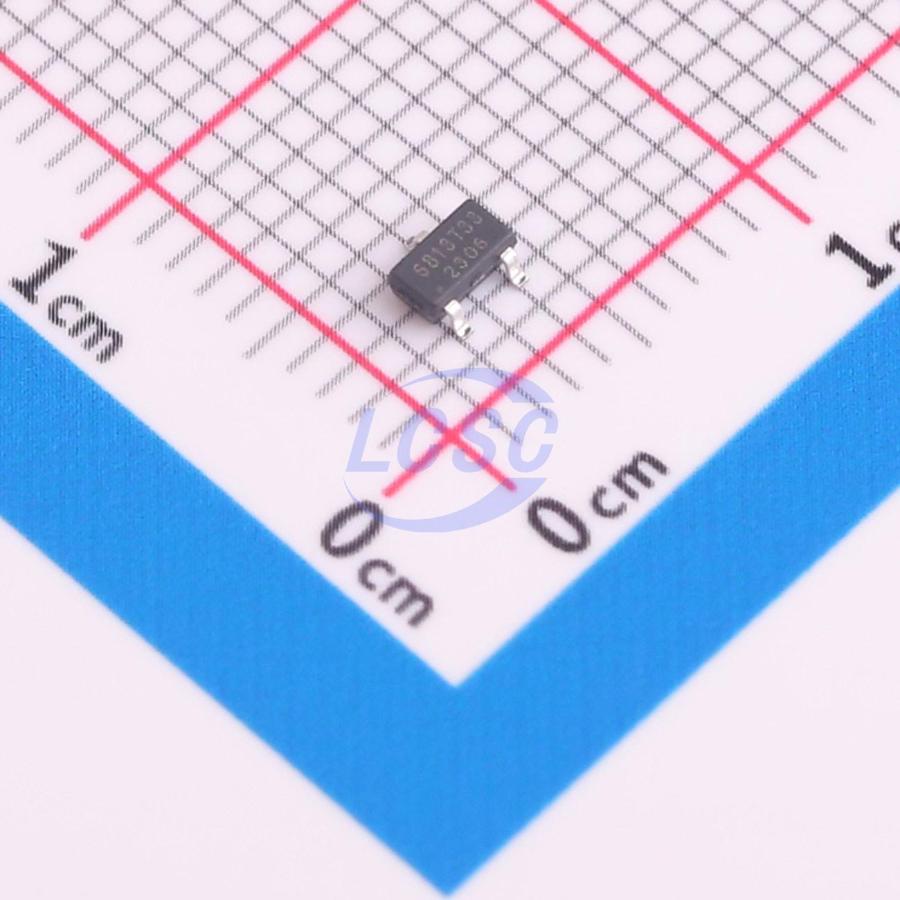

OC6813T33
Boost Switching Regulator IC Fixed 3.3V 1 Output SOT23-3
SOT23-3ROHS CompliantActive
Low Standby Power Synchronous Boost DC-DC
- Manufacturer
- OCX
- Manufacturer part #
- OC6813T33
- Store part #
- C6798402
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C6798402
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.45 | ₹74.50 |
| 100+ | ₹5.99 | ₹599.00 |
| 300+ | ₹5.25 | ₹1,575.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.27 | ₹25,620.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹7.45
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OC6813T33
₹74.50 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃@(TA)
- Function
- Boost
- Frequency - Switching
- 370kHz
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Quiescent Current
- 6uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Applications
- Electronic devices powered by 1~2 dry cell batteries
- Handheld electronic devices such as electronic dictionaries, digital cameras, blood pressure monitors, MP3 players, remote-controlled toys, wireless headphones, wireless mice and keyboards, medical devices, anti-loss trackers, car alarms, chargers, VCRs, PDAs, etc.
Key features
- Low standby power, high-efficiency synchronous boost DC-DC; standby current as low as 15uA
- Fixed on-time PFM control; automatically reduces switching frequency under light load to maintain high conversion efficiency
- Only 3 external components required to boost low battery voltage to the required operating voltage
- Patented control technology featuring low standby power and high light-load efficiency; achieves input current as low as 15uA while maintaining regulated boost output voltage — ideal for applications with high standby time requirements
- SOT23-3 and SOT23-5 packages
- Low quiescent current: 6uA
- High efficiency: up to 93%
- Maximum operating frequency: 370KHz
- Output voltage: 2.2V~5.0V (0.1V step)
- Startup voltage: 0.9V
- Low ripple, low noise
