OCX

OC7140

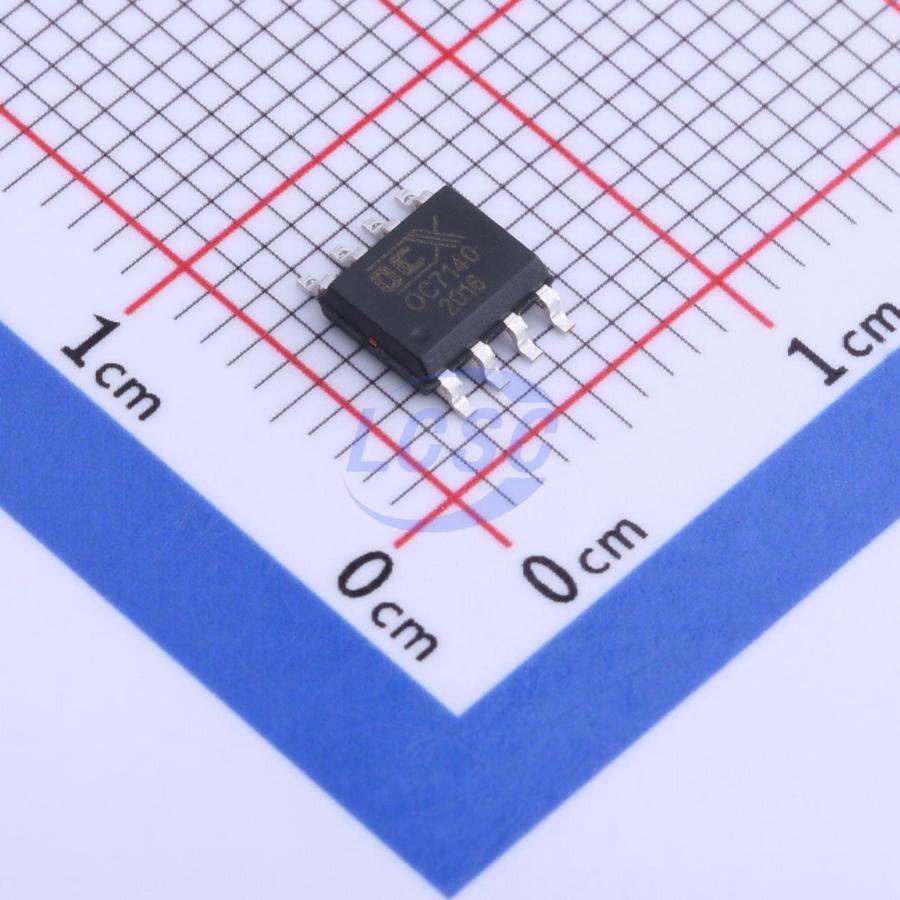

LED Driver IC 1 Output Buck PWM Dimming 2A SOIC-8-EP

SOIC-8-EPRoHSActive

Linear step-down LED constant current driver with PWM dimming

Manufacturer: OCX
Manufacturer part #: OC7140
Store part #: C842736
Package / case: SOIC-8-EP
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,465 in stock

#C842736

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹19.12	₹95.60
50+	₹15.45	₹772.50
150+	₹13.63	₹2,044.50
500+	₹12.25	₹6,125.00
2,500+	₹10.48	₹26,200.00
4,000+	₹9.92	₹39,680.00

Quantity (min 5, multiples of 5)

5 × ₹19.12

₹95.60

excl. GST

₹112.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

OC7140

₹95.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over-Temperature Protection (OTP);PWM dimming
Switch Tube (Built-In/External): Built-in
Operating temperature: -20℃~+85℃
Topology: Buck
Number of Channels: 1
Output Current: 2A
Voltage - Input(DC): 2.5V~6V
Constant Current Accuracy: 4%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.125 g

Overview

OC7140 is a linear buck LED constant current driver with PWM dimming. A complete LED constant current driving circuit can be constructed with only a single external resistor; adjusting this resistor sets the output current, with an output current range of 10~2000mA. OC7140 integrates a 30V 50mΩ MOSFET. OC7140 features built-in over-temperature protection to effectively protect the IC from damage caused by overheating. OC7140 has very low quiescent current, with a typical value of 60μA. OC7140 supports PWM dimming, allowing LED current adjustment by applying a PWM signal to the DIM pin. OC7140 is available in an ESOP8 package. The exposed thermal pad is connected to the LED pin.
