HGSEMIDatasheet (PDF)

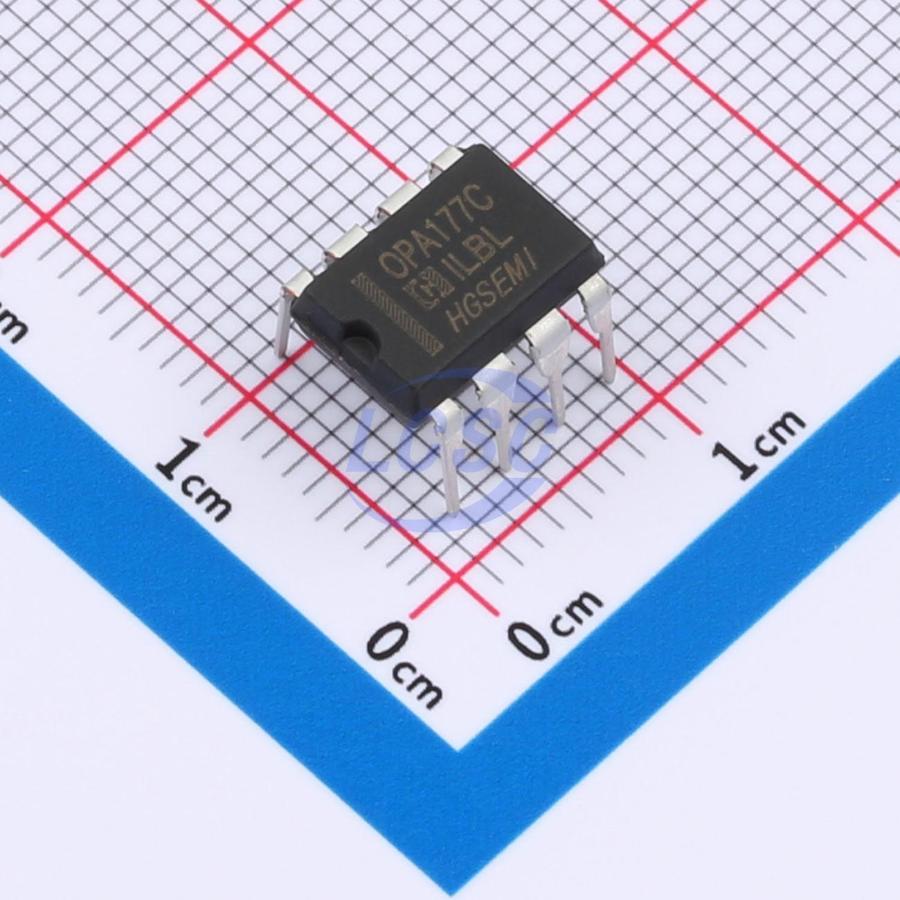

OPA177CN
1 60uV 300V/ms 115dB 2.8nA 1.3mA DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
Precision Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA177CN
- Store part #
- C22461719
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,646 in stock
#C22461719
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.65 | ₹63.65 |
| 10+ | ₹56.03 | ₹560.30 |
| 50+ | ₹52.11 | ₹2,605.50 |
| 100+ | ₹48.41 | ₹4,841.00 |
| 500+ | ₹46.13 | ₹23,065.00 |
| 1,000+ | ₹45.11 | ₹45,110.00 |
1 × ₹63.65
₹63.65
excl. GST
₹75.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
OPA177CN
₹63.65 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 60uV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2.8nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 2.8nA
- Input Offset Voltage Drift(Vos TC)
- 1.2uV/℃
- Quiescent Current
- 1.3mA
- Dual Supply
- -18V~-3V;3V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 6
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.825 g
Overview
The OPA177 precision bipolar op amp features ultralow offset voltage and drift. Laser-trimmed offset, drift, and input bias current virtually eliminate the need for costly external trimming. High performance and low cost make it ideal for a wide range of precision instrumentation applications. The OPA177's low quiescent current significantly reduces warm-up drift and errors caused by thermoelectric effects in input interconnects. It offers an effective alternative to chopper-stabilized amplifiers. The OPA177's low noise preserves accuracy. Performance-graded versions of the OPA177 are available. Package options include 8-pin plastic DIP and SOP-8 surface-mount packages.
Applications
- Precision instruments
- Data acquisition
- Test equipment
- Bridge amplifiers
- Thermocouple amplifiers
Key features
- Low offset voltage: 25µV max
- Low drift: 0.3µV/°C
- High open-loop gain: 130dB min
- Low quiescent current: 1.5mA typical
- Drop-in replacement for industry-standard op-amps: OP-07, OP-77, OP-177, AD707, etc.
