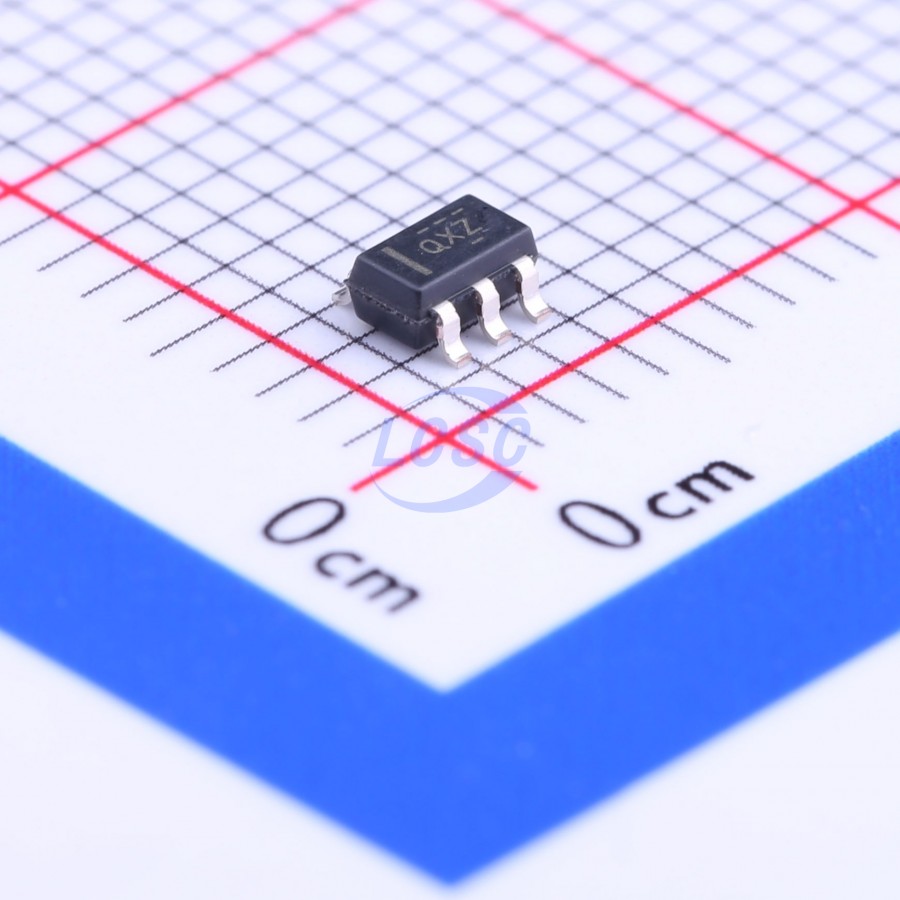

OPA188AIDBVR

16mA 1 6uV 0.8V/us 146dB 160pA 510uA 2MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Precision, Low-Noise, Rail-to-Rail Output, 36-V, Zero-Drift Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA188AIDBVR
Store part #: C140312
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15,975 in stock

#C140312

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹153.63	₹153.63
10+	₹136.68	₹1,366.80
30+	₹120.59	₹3,617.70
100+	₹108.86	₹10,886.00
500+	₹103.87	₹51,935.00
1,000+	₹101.47	₹1,01,470.00

Quantity (min 1)

1 × ₹153.63

₹153.63

excl. GST

₹181.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA188AIDBVR

₹153.63 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 16mA
Number of Channels: 1
Vos - Input Offset Voltage: 6uV
Slew Rate: 0.8V/us
Input Offset Current(Ios): 320pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 146dB
Ib - Input Bias Current: 160pA
Input Offset Voltage Drift(Vos TC): 30nV/℃
Quiescent Current: 510uA
Gain Bandwidth Product: 2MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 8.8nV/√Hz@1kHz
Dual Supply: -18V~-2V;2V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The OPA188 operational amplifier uses TI's proprietary auto-zeroing techniques to provide low offset voltage (25 μV maximum) and near zero-drift over time and temperature. This miniature, high-precision, low-quiescent current amplifier offers high input impedance and rail-to-rail output swing within 15 mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range from 4 V to 36 V (±2 V to ±18 V). The single version is available in the MicroSIZE SOT23-5, MSOP-8, and SO-8 packages. All versions are specified for operation from -40°C to +125°C.

Applications

Bridge Amplifiers
Strain Gauges
Transducer Applications
Temperature Measurement
Electronic Scales
Medical Instrumentation
Resistance Temperature Detectors

Key features

Low Offset Voltage: 25 μV (Maximum)
Zero-Drift: 0.03 μV/°C
Low Noise: 8.8 nV/√Hz – 0.1-Hz to 10-Hz
Noise: 0.25 μVPP
Excellent DC Precision: PSRR: 142 dB – CMRR: 146 dB – Open-Loop Gain: 136 dB
Gain Bandwidth: 2 MHz
Quiescent Current: 510 μA (Maximum)
Wide Supply Range: ±2 V to ±18 V
Rail-to-Rail Output
Input Includes Negative Rail
RFI Filtered Inputs
MicroSIZE Packages

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	OPA188AIDBVT#C140281TI · SOT-23-5	TI	SOT-23-5	23	₹150.04 · 23 in stock	View
	NCS21911SN2T1G#C603837onsemi · TSOP-5-1.5mm	onsemi	TSOP-5-1.5mm	1,911	₹203.38 · 1,911 in stock	View
