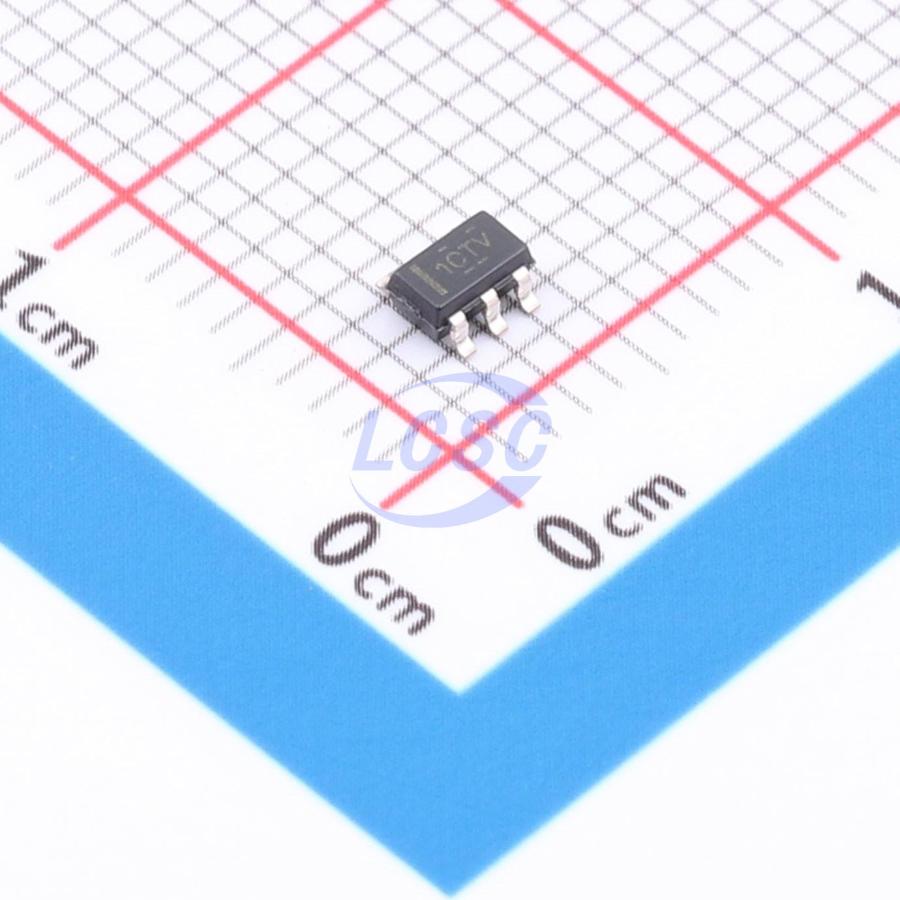

OPA189IDBVT

65mA 1 400nV 20V/us 168dB 70pA 1.3mA 14MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

High-precision, ultra-low noise, rail-to-rail output operational amplifier

Manufacturer: TI
Manufacturer part #: OPA189IDBVT
Store part #: C2058820
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C2058820

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹718.98	₹718.98
10+	₹641.15	₹6,411.50
30+	₹591.45	₹17,743.50
100+	₹543.26	₹54,326.00

Quantity (min 1)

1 × ₹718.98

₹718.98

excl. GST

₹848.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

OPA189IDBVT

₹718.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Number of Channels: 1
Vos - Input Offset Voltage: 400nV
Slew Rate: 20V/us
Input Offset Current(Ios): 140pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 168dB
Ib - Input Bias Current: 70pA
Input Offset Voltage Drift(Vos TC): 5nV/℃
Quiescent Current: 1.3mA
Gain Bandwidth Product: 14MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection;ESD protection
Input Voltage Noise Density: 5.2nV/√Hz@1kHz
Dual Supply: -18V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The OPAx189 (OPA189 and OPA2189) series precision op-amps feature ultra-low noise, fast settling time, and zero temperature drift, with rail-to-rail output operation, a unique MUX-friendly architecture, and a controlled turn-on system. These characteristics, combined with excellent AC performance, an offset voltage of only 0.4μV, and temperature drift of 0.005μV/°C, make the OPAx189 ideal for high-precision instrumentation, signal measurement, and active filter applications. Additionally, the MUX-friendly input architecture prevents surge currents when large differential input voltages are applied, improving settling time performance in multi-channel systems while providing robust ESD protection during shipping, handling, and assembly. All device versions are rated for an operating temperature range of -40°C to +125°C.

Applications

High-precision multichannel systems
Bridge amplifiers
Strain gauges
Temperature measurement RTDs

Key features

Ultra-high precision:
Zero tempco: 0.005 μV/°C
Ultra-low offset voltage: 3 μV (maximum)
Excellent DC accuracy:
CMRR: 168dB
Open-loop gain: 170dB
Low noise:
θn at 1kHz: 5.2 nV/√Hz
0.1Hz to 10Hz noise: 0.1 μVPP
Excellent dynamic performance:
Gain bandwidth: 14MHz
Slew rate: 20V/μs
Fast settling time: 10V step, to 0.01% within 1.1 μs
Robust design:
MUX-friendly inputs
RFI/EMI filtered inputs
OPAx189 maintains R-C settling time performance in switching or multiplexing applications
