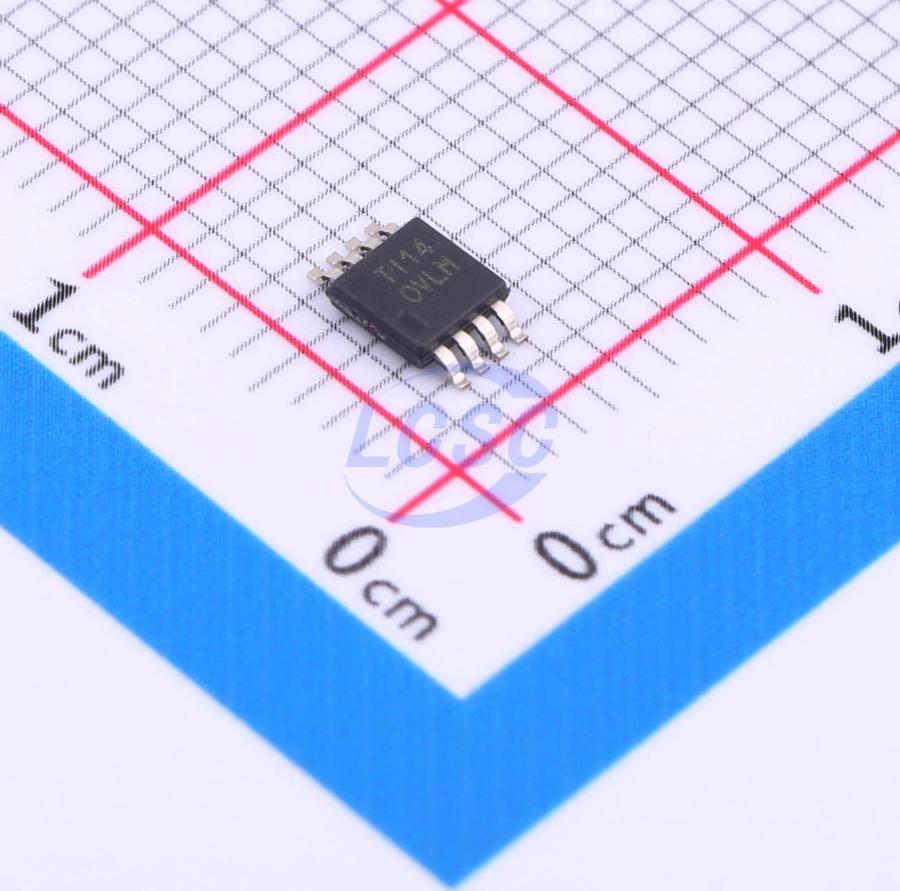

OPA2192IDGKR

65mA 2 5uV 20V/us 140dB 5pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

36V precision operational amplifier with low offset voltage, low input bias current, and rail-to-rail input/output

Manufacturer: TI
Manufacturer part #: OPA2192IDGKR
Store part #: C2876419
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25,848 in stock

#C2876419

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹328.53	₹328.53
10+	₹283.12	₹2,831.20
30+	₹254.65	₹7,639.50
100+	₹225.32	₹22,532.00
500+	₹212.29	₹1,06,145.00
1,000+	₹206.41	₹2,06,410.00

Quantity (min 1)

1 × ₹328.53

₹328.53

excl. GST

₹387.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2192IDGKR

₹328.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 20V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 200nV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 5.5nV/√Hz@1kHz
Dual Supply: -18V~-2.25V;2.25V~18V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

The OPAx192 series is a new generation of 36V e-trim operational amplifiers. These devices offer exceptional DC accuracy and AC performance, including rail-to-rail input/output, low offset (typical: ±5μV), low offset drift (typical: ±0.2μV/°C), and 10MHz bandwidth. The OPA192 series features several unique characteristics, such as differential input voltage range across the supply rails, high output current (±65mA), capacitive load drive capability up to 1nF, and high slew rate (20V/μs), making it a robust, high-performance op amp suited for a wide range of high-voltage industrial applications. The OPA192 series op amps are available in standard packages and are rated for operation over a -40°C to +125°C temperature range.

Applications

Multiplexed data acquisition systems
Test and measurement equipment
High-resolution ADC driver amplifiers
SAR ADC reference buffers
Programmable logic controllers
High-side and low-side current sensing
High-precision comparators

Key features

Low offset voltage: ±5μV
Low offset voltage drift: ±0.2μV/°C
Low noise: 5.5nV/√Hz at 1kHz
High common-mode rejection: 140dB
Low bias current: ±5pA
Rail-to-rail input and output
High bandwidth: 10MHz GBW
High slew rate: 20V/μs
Low quiescent current: 1mA per amplifier
Wide supply voltage range: ±2.25V to ±18V, 4.5V to 36V
EMI/RFI filtered inputs
Differential input voltage range up to supply rails
High capacitive load drive capability: 1nF
Industry-standard packages: single-channel in SOIC-8, SOT-23-5, and VSSOP-8; dual-channel in SOIC-8 and VSSOP-8; quad-channel in SOIC-14 and TSSOP-14
