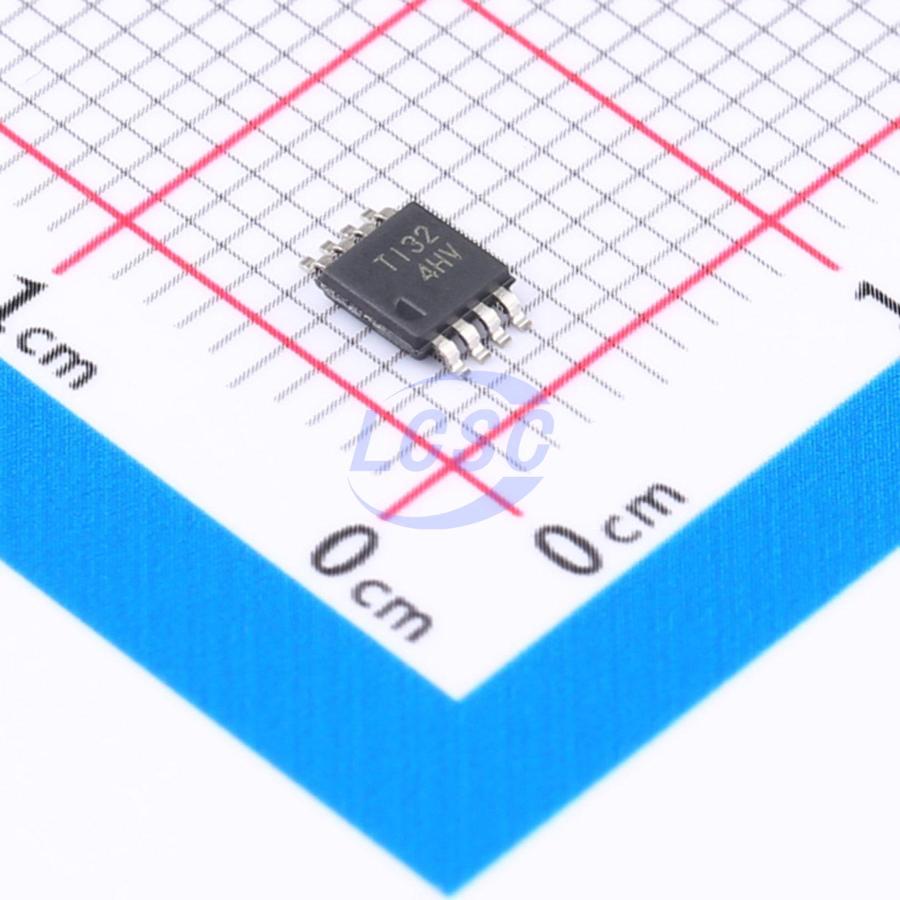

OPA2197IDGKR

The OPAx197 family (OPA197, OPA2197, and OPA4197) represents a new generation of 36V op amps. These devices offer excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset (typical ±25μV), low drift (typical ±0.25μV/°C), and 10MHz bandwidth. The OPAx196 features several unique characteristics, such as differential input voltage range spanning the supply rails, high output current (±65mA), high capacitive load drive up to 1nF, and high slew rate (20V/μs), making it a robust, high-performance op amp suited for demanding high-voltage industrial applications. The OPA197 family op amps are available in standard packages and operate over a rated temperature range of -40°C to +125°C.

Applications

• Multiplexed data acquisition systems
• Test and measurement equipment
• High-resolution ADC driver amplifiers
• SAR ADC reference buffers
• Programmable logic controllers
• High-side and low-side current sensing
• High-precision comparators

Key features

• Low offset voltage: ±100μV (max)
• Low offset voltage drift: ±2.5μV/°C (max)
• Low noise: 5.5nV/√Hz at 1kHz
• High common-mode rejection: 120dB (min)
• Low bias current: ±5pA (typ)
• Rail-to-rail input and output
• High bandwidth: 10MHz GBW
• High slew rate: 20V/μs
• Low quiescent current: 1mA per amplifier (typ)
• Wide supply voltage range: ±2.25V to ±18V, +4.5V to +36V
• EMI and RFI filtered inputs
• Differential input voltage range to supply rails
• High capacitive load drive capability: 1nF
• Industry-standard packages: single SOIC-8, SOT-5, and VSSOP-8; dual SOIC-8 and VSSOP-8; quad supply versions in SOIC-14 and TSSOP-14
