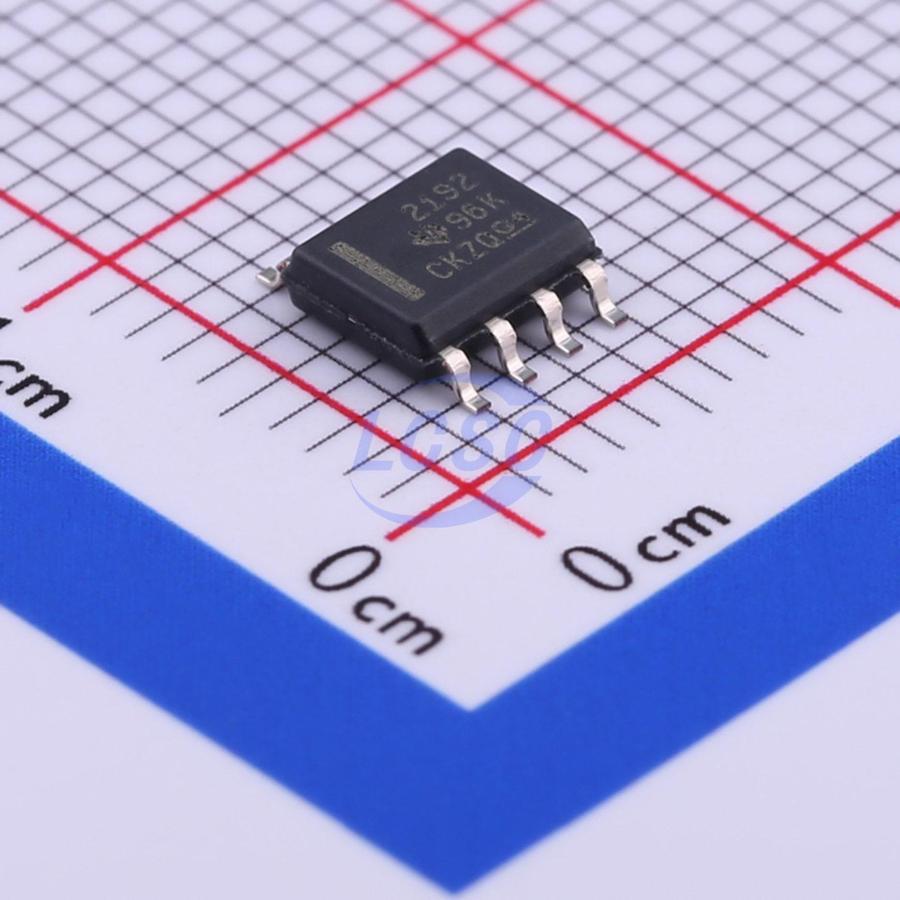

OPA2192IDR

65mA 2 5uV 20V/us 5pA 140dB 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

36-V, Precision, Rail-to-Rail Input/Output, Low Offset Voltage, Low Input Bias Current Op Amp with e-trim

Manufacturer: TI
Manufacturer part #: OPA2192IDR
Store part #: C110074
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

35,000 in stock

#C110074

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹144.66	₹144.66
10+	₹125.30	₹1,253.00
30+	₹107.03	₹3,210.90
100+	₹93.54	₹9,354.00
500+	₹87.89	₹43,945.00
1,000+	₹85.28	₹85,280.00

Quantity (min 1)

1 × ₹144.66

₹144.66

excl. GST

₹170.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2192IDR

₹144.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 65mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 20V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 140dB
Input Offset Voltage Drift(Vos TC): 200nV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 5.5nV/√Hz@1kHz
Dual Supply: -18V~-2.25V;2.25V~18V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The OPAx192 family (OPA192, OPA2192, and OPA4192) is a new generation of 36-V, e-trim operational amplifiers. These devices offer outstanding dc precision and ac performance, including rail-to-rail input/output, low offset (±5 μV, typ), low offset drift (±0.2 μV/°C, typ), and 10-MHz bandwidth. Unique features such as differential input-voltage range to the supply rail, high output current (±65 mA), high capacitive load drive of up to 1 nF, and high slew rate (20 V/μs) make the OPA192 a robust, highperformance operational amplifier for high-voltage industrial applications. The OPA192 family of op amps is available in standard packages and is specified from -40°C to +125°C.

Applications

Multiplexed Data-Acquisition Systems
Test and Measurement Equipment
High-Resolution ADC Driver Amplifiers
SAR ADC Reference Buffers
Programmable Logic Controllers
High-Side and Low-Side Current Sensing
High Precision Comparator

Key features

Low Offset Voltage: ±5 μV
Low Offset Voltage Drift: ±0.2 μV/°C
Low Noise: 5.5 nV/√Hz at 1 kHz
High Common-Mode Rejection: 140 dB
Low Bias Current: ±5 pA
Rail-to-Rail Input and Output
Wide Bandwidth: 10 MHz GBW
High Slew Rate: 20 V/μs
Low Quiescent Current: 1 mA per Amplifier
Wide Supply: ±2.25 V to ±18 V, 4.5 V to 36 V
EMI/RFI Filtered Inputs
Differential Input Voltage Range to Supply Rail
High Capacitive Load Drive Capability: 1 nF
Industry Standard Packages:
Single in SOIC-8, SOT-23-5, and VSSOP-8
Dual in SOIC-8 and VSSOP-8
Quad in SOIC-14 and TSSOP-14
