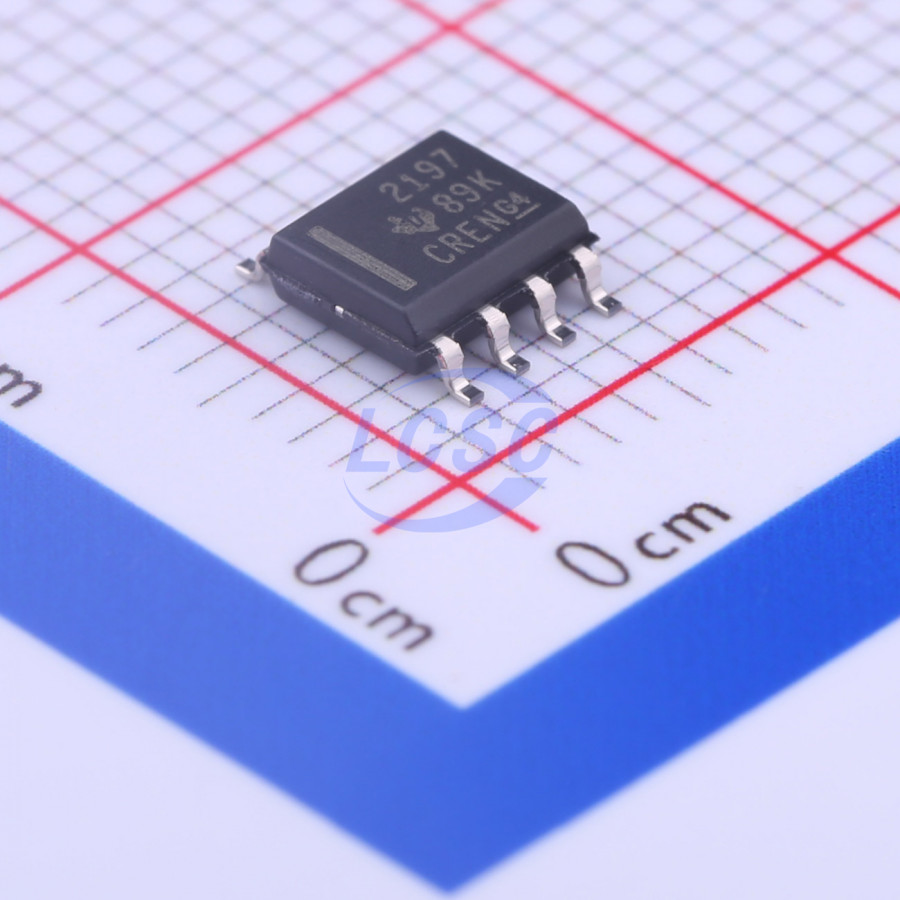

OPA2197IDR

The OPAx197 series (OPA197, OPA2197, and OPA4197) is a new generation of 36V operational amplifiers. These devices feature excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset (typ: ±25μV), low offset drift (typ: ±0.25μV/°C), and a 10MHz bandwidth. The OPA197 series has many unique characteristics, such as a differential input voltage range across the supply rails, high output current (±65mA), high capacitive load drive up to 1nF, and a high slew rate (20V/μs). It is a robust, high-performance operational amplifier suitable for a variety of high-voltage industrial applications. The OPA197 series operational amplifiers are available in standard packages and operate over a rated temperature range of -40°C to +125°C.

Applications

• Multiplexed data acquisition systems
• Test and measurement equipment
• High-resolution ADC driver amplifiers
• SAR ADC reference buffers
• Programmable logic controllers
• High-side and low-side current sensing
• High-precision comparators

Key features

• Low offset voltage: ±250μV (max)
• Low offset voltage drift: ±2.5μV/°C (max)
• Low noise: 5.5nV/√Hz at 1kHz
• High common-mode rejection: 120dB (min)
• Low bias current: ±5A (typical)
• Rail-to-rail input and output
• High bandwidth: 10MHz GBW
• High slew rate: 20V/μs
• Low quiescent current: 1mA per amplifier (typical)
• Wide supply range: ±2.25V to ±18V, +4.5V to +36V
• EMI and RFI filtered inputs
• Differential input voltage range to supply rails
• High capacitive load drive capability: 1nF
• Industry-standard packages: SOIC-8, SOT-5, and VSSOP-8 single; SOIC-8 and VSSOP-8 dual; SOIC-14 and TSSOP-14 quad
