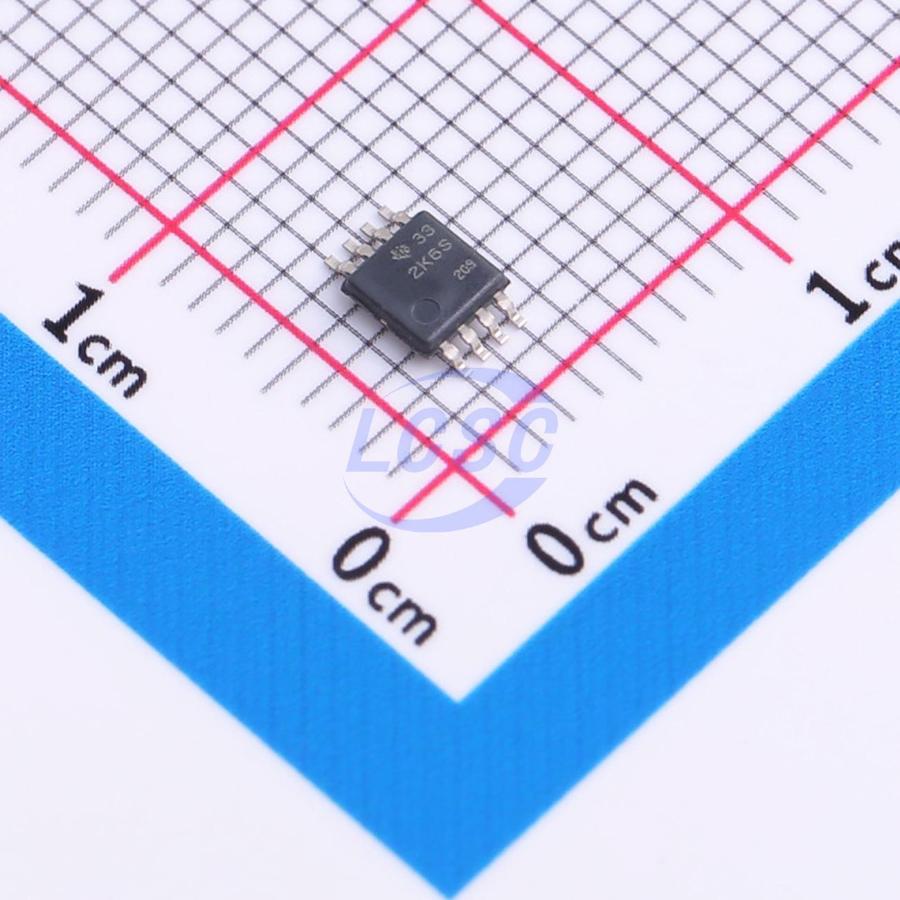

OPA2328DGKR

The single-channel OPA328 and dual-channel OPA2328 (OPAx328) are a new generation of precision low-voltage CMOS op amps optimized for ultralow noise and wide bandwidth. The OPAx328 features a linear input stage with zero crossover distortion, delivering excellent CMRR of 120dB (typical) across the entire input range. The input common-mode voltage range extends 100mV beyond both supply rails. Output voltage swing is typically within 10mV of the supply rails. The OPAx328 also employs proprietary e‑trim™ op amp technology to achieve a unique combination of ultralow offset voltage and low input offset voltage drift, without any input chopping or auto-zero techniques. Low noise (6.1nV/√Hz) and high-speed performance (40MHz, 30V/μs) make these devices ideal for driving sampling ADCs. The OPAx328 is also an excellent choice for high-impedance input, single-supply applications. Low input bias current and low input capacitance enable high-frequency transimpedance gain at low photocurrent operation (<1nA).

Applications

• Optical modules
• Position sensors
• Multi-parameter patient monitors
• CT and PET scanners
• Chemical and gas analyzers
• Bidirectional 400V and 800V to LV
• Commercial networking and server PSU
• String inverters
• Solar power optimizers

Key features

• Precision at zero-crossing distortion:
• Low offset voltage: 50μV (max)
• High CMRR: 120dB
• Rail-to-rail I/O
• High bandwidth: 40 MHz
• Low input bias current: 1pA (max)
• Low noise: 6.1nV/√Hz at 10kHz
• Slew rate: 30 V/µs
• 0.01% fast settling time: 180ns
• Single-supply voltage range: 2.2 V to 5.5 V
• Unity-gain stable
