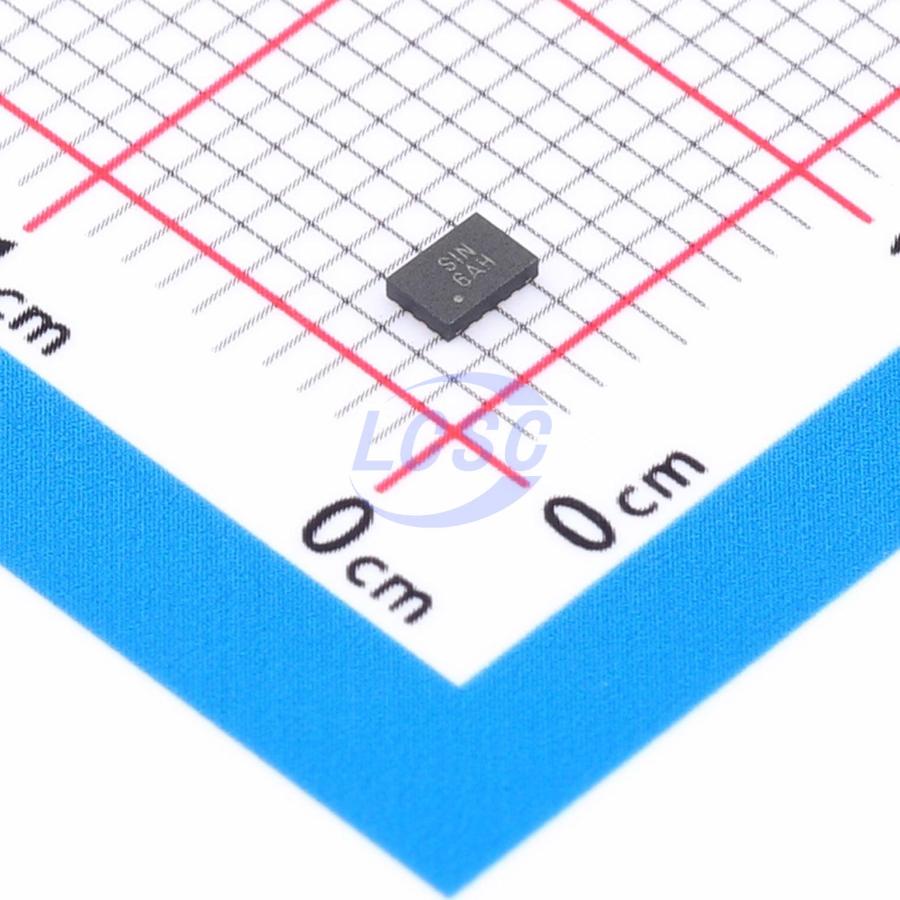

OPA2363AIRSVR

2 900uV 5V/us 1pA 90dB 7MHz 750uA Rail-to-Rail Input, Rail-to-Rail Output UQFN-16(1.8x2.6) Instrumentation, Op Amps, Buffer Amps RoHS

UQFN-16(1.8x2.6)ROHS3 CompliantActive

OPAx363, OPAx364 Single-Supply Rail-to-Rail I/O Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA2363AIRSVR
Store part #: C2058422
Package / case: UQFN-16(1.8x2.6)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2058422

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹503.02	₹503.02
10+	₹490.18	₹4,901.80
30+	₹481.64	₹14,449.20
100+	₹473.09	₹47,309.00

Quantity (min 1)

1 × ₹503.02

₹503.02

excl. GST

₹593.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2363AIRSVR

₹503.02 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 900uV
Slew Rate: 5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 3uV/℃
Gain Bandwidth Product: 7MHz
Quiescent Current: 750uA
Features: Enable/shutdown function;ESD protection
Input Voltage Noise Density: 17nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.89 g

Overview

The OPA363 and OPA364 series are two high-performance CMOS op amps optimized for ultra-low-voltage single-supply operation. These compact, low-cost amplifiers are designed to operate from single supplies ranging from 1.8V (±0.9V) to 5.5V (±2.75V). Applications include sensor amplification and signal conditioning in battery-powered systems. The OPAx363 and OPA364 series offer excellent CMRR without the crossover distortion associated with traditional complementary input stages. This feature enables superior performance when driving analog-to-digital (A/D) converters without degrading differential linearity and THD. The input common-mode range includes both positive and negative supply rails. Output voltage swing is within 10mV of the supply rails. The OPA363 series includes a shutdown mode. Under logic control, these amplifiers can be switched from normal operation to a standby state with quiescent current below 1μA. The single-channel version is available in a compact 5-pin SOT-23 (6-pin SOT-23 for shutdown mode) and 8-pin SOIC. The dual-channel version comes in 8-pin VSSOP, 10-pin VSSOP, 16-pin UQFN, and 8-pin SOIC packages. All four channels are also available in 14-pin TSSOP and 14-pin SOIC packages. All device versions are rated for an operating temperature range of -40°C to +125°C.
