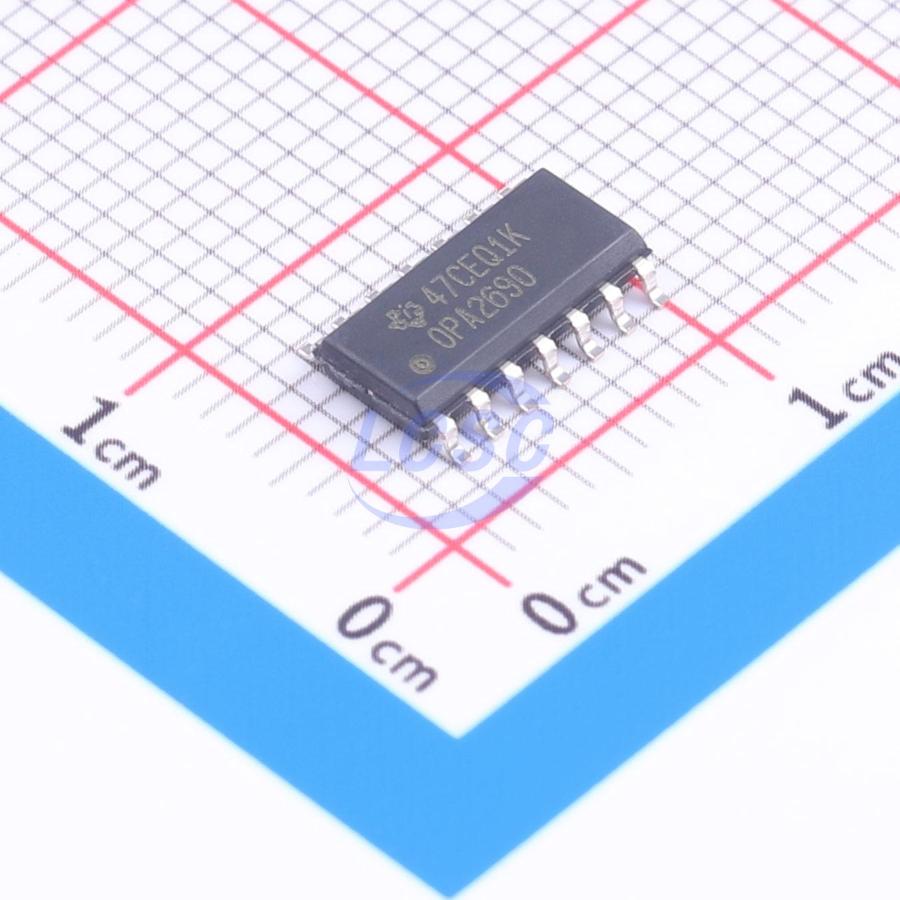

OPA2690I-14DR
190mA 2 5mV 1.8V/ns 65dB 13uA 5.5mA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Dual, Wideband, Voltage-Feedback OPERATIONAL AMPLIFIER with Disable
- Manufacturer
- TI
- Manufacturer part #
- OPA2690I-14DR
- Store part #
- C2873211
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2873211
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,402.79 | ₹1,402.79 |
| 10+ | ₹1,257.52 | ₹12,575.20 |
| 30+ | ₹1,164.52 | ₹34,935.60 |
| 100+ | ₹1,074.75 | ₹1,07,475.00 |
1 × ₹1,402.79
₹1,402.79
excl. GST
₹1,655.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2690I-14DR
₹1,402.79 for 1 + GST
Specifications
- Output Current
- 190mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 1.8V/ns
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Ib - Input Bias Current
- 13uA
- Input Offset Voltage Drift(Vos TC)
- 12uV/℃
- Quiescent Current
- 5.5mA
- Features
- Enable/shutdown function
- Dual Supply
- 2.5V~6V;-6V~-2.5V
- Single Supply
- 5V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.98 g
Overview
The OPA2690 represents a major step forward in unity-gain stable, voltage-feedback op amps. A new internal architecture provides slew rate and full-power bandwidth previously found only in wideband, current-feedback op amps. A new output stage architecture delivers high currents with a minimal headroom requirement. These give exceptional single-supply operation. Using a single +5V supply, the OPA2690 can deliver a 1V to 4V output swing with over 120mA drive current and 150MHz bandwidth. This combination of features makes the OPA2690 an ideal RGB line driver or single-supply Analog-to-Digital Converter (ADC) input driver. The low 5.5mA/ch supply current of the OPA2690 is precisely trimmed at +25°C. This trim, along with low temperature drift, provides lower maximum supply current than competing products. System power may be reduced further using the optional disable control pin. Leaving this disable pin open, or holding it HIGH, will operate the OPA2690I - 14D normally. If pulled LOW, the OPA2690I - 14D supply current drops to less than 200μA/ch while the output goes to a high-impedance state.
Applications
- VIDEO LINE DRIVING
- xDSL LINE DRIVER/RECEIVER
- HIGH-SPEED IMAGING CHANNELS
- ADC BUFFERS
- PORTABLE INSTRUMENTS
- TRANSIMPEDANCE AMPLIFIERS
- ACTIVE FILTERS
- Single-Supply Differential ADC Driver
Key features
- FLEXIBLE SUPPLY RANGE: +5V to +128 Single Supply, ±2.5V to ±6V Dual Supply
- WIDEBAND +5V OPERATION: 220MHz (G = 2)
- HIGH OUTPUT CURRENT: 190mA
- OUTPUT VOLTAGE SWING: ±4.0V
- HIGH SLEW RATE: 1800V/μs
- LOW SUPPLY CURRENT: 5.5mA/ch
- LOW DISABLE CURRENT: 100μA/ch
