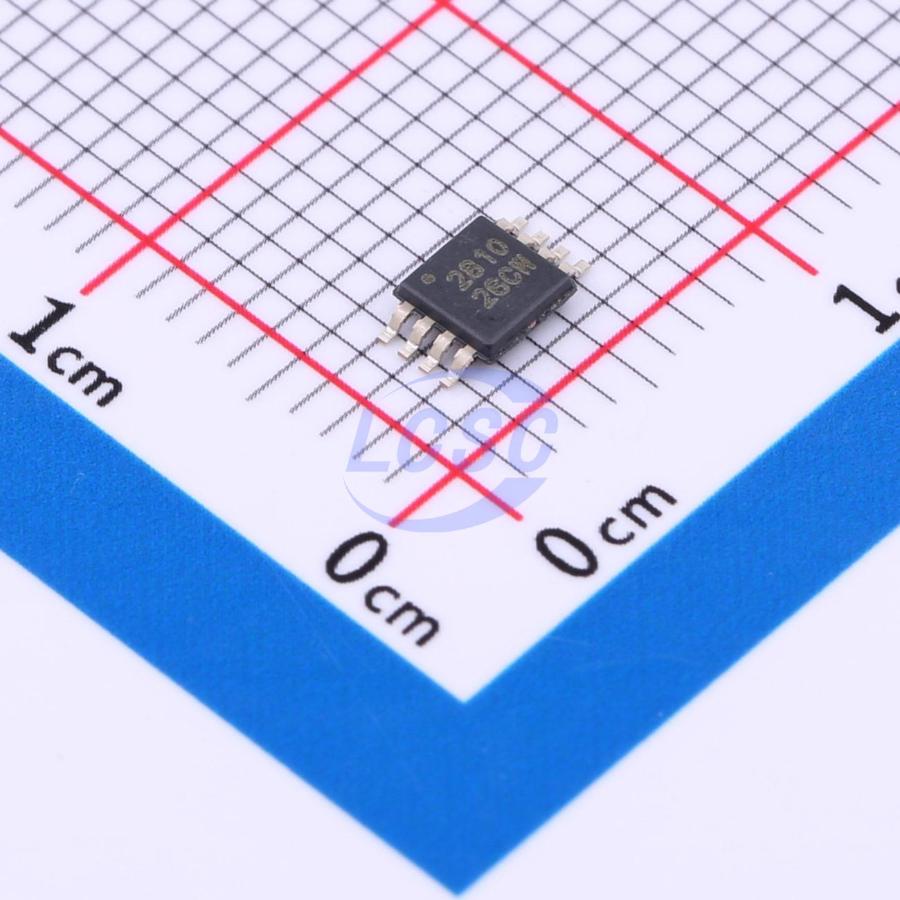

OPA2810IDGKT

50mA 2 500uV 180V/us 100dB 2pA 3.5mA 70MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

Dual-channel, high-performance, low-power, wide power supply range rail-to-rail input/output FET-input operational amplifier

Manufacturer: TI
Manufacturer part #: OPA2810IDGKT
Store part #: C2869782
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C2869782

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹721.87	₹721.87
10+	₹706.22	₹7,062.20
30+	₹642.12	₹19,263.60
100+	₹631.69	₹63,169.00

Quantity (min 1)

1 × ₹721.87

₹721.87

excl. GST

₹851.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

OPA2810IDGKT

₹721.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 180V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 3.5mA
Gain Bandwidth Product: 70MHz
Features: Built-in compensation;ESD protection;High capacitive load driving
Input Voltage Noise Density: 5.7nV/√Hz@100kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -13.5V~-2.375V;2.375V~13.5V
Single Supply: 4.75V~27V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.065 g

Overview

The OPA2810 is a dual-channel, FET-input, voltage-feedback op amp with ultralow input bias current. It features unity-gain stability and 120MHz small-signal unity-gain bandwidth, delivering excellent DC accuracy and dynamic AC performance at very low quiescent power consumption. Fabricated using a proprietary high-speed SiGe BiCMOS process, it offers significantly improved performance compared to equivalent FET-input amplifiers at similar quiescent power levels. With a 70MHz gain bandwidth product (GBWP), exceptionally high slew rate (180V/µs), and ultralow noise (5.7nV/√Hz), it is well suited for a wide range of data acquisition and signal processing applications. While achieving these benchmark performance levels, it consumes a typical quiescent current (IQ) of 3.65mA/channel. It supports a wide rated supply voltage range of 4.75V to 27V with rail-to-rail input and output. The wide supply voltage range and excellent dynamic performance make it ideal for a broad range of applications, including wideband photodiode transimpedance amplifiers, test and measurement front-end buffers, active filters, impedance measurement systems, power analyzers, and general-purpose gain and level-shifting stages. Capable of delivering 50mA linear output current, it is suitable for driving optoelectronic components and buffering DAC outputs into heavy loads. Available in 8-pin SOT23-8 and VSSOP-8 packages, it operates over a rated extended industrial temperature range of -40°C to +125°C.
