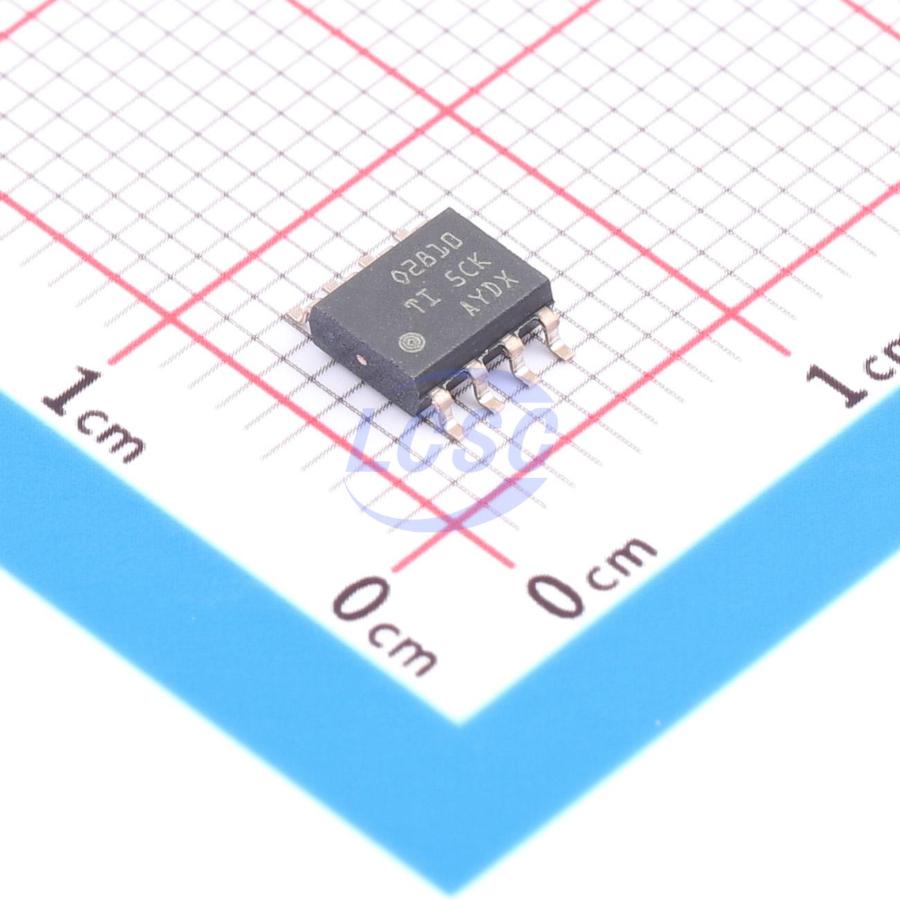

OPA2810IDR

50mA 2 500uV 180V/us 100dB 2pA 3.65mA 70MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Dual-channel, high-performance, low-power, wide power supply range rail-to-rail input/output FET-input operational amplifier

Manufacturer: TI
Manufacturer part #: OPA2810IDR
Store part #: C1849413
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,305 in stock

#C1849413

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹379.58	₹379.58
10+	₹318.46	₹3,184.60
30+	₹280.17	₹8,405.10
100+	₹241.02	₹24,102.00
500+	₹223.19	₹1,11,595.00
1,000+	₹215.57	₹2,15,570.00

Quantity (min 1)

1 × ₹379.58

₹379.58

excl. GST

₹447.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2810IDR

₹379.58 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 180V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 3.65mA
Gain Bandwidth Product: 70MHz
Features: ESD protection;Short-Circuit Protection;High capacitive load driving;Built-in compensation
Input Voltage Noise Density: 5.7nV/√Hz@100kHz
Dual Supply: -12V~12V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4.75V~27V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.181 g

Overview

The OPA2810 is a dual-channel, FET-input, voltage-feedback op amp with ultralow input bias current. It features unity-gain stability and 120MHz small-signal unity-gain bandwidth, delivering excellent DC accuracy and dynamic AC performance at very low quiescent power consumption. Fabricated using a proprietary high-speed SiGe BiCMOS process, it offers significantly improved performance compared to equivalent FET-input amplifiers at similar quiescent power levels. With a 70MHz gain bandwidth product (GBWP), exceptionally high slew rate (180V/µs), and ultralow noise (5.7nV/√Hz), it is well suited for a wide range of data acquisition and signal processing applications. While achieving these benchmark performance levels, it consumes a typical quiescent current (IQ) of 3.65mA/channel. It supports a wide rated supply voltage range of 4.75V to 27V with rail-to-rail input and output. The wide supply voltage range and excellent dynamic performance make it ideal for a broad range of applications, including wideband photodiode transimpedance amplifiers, test and measurement front-end buffers, active filters, impedance measurement systems, power analyzers, and general-purpose gain and level-shifting stages. Capable of delivering 50mA linear output current, it is suitable for driving optoelectronic components and buffering DAC outputs into heavy loads. Available in 8-pin SOT23-8 and VSSOP-8 packages, it operates over a rated extended industrial temperature range of -40°C to +125°C.
