TIDatasheet (PDF)

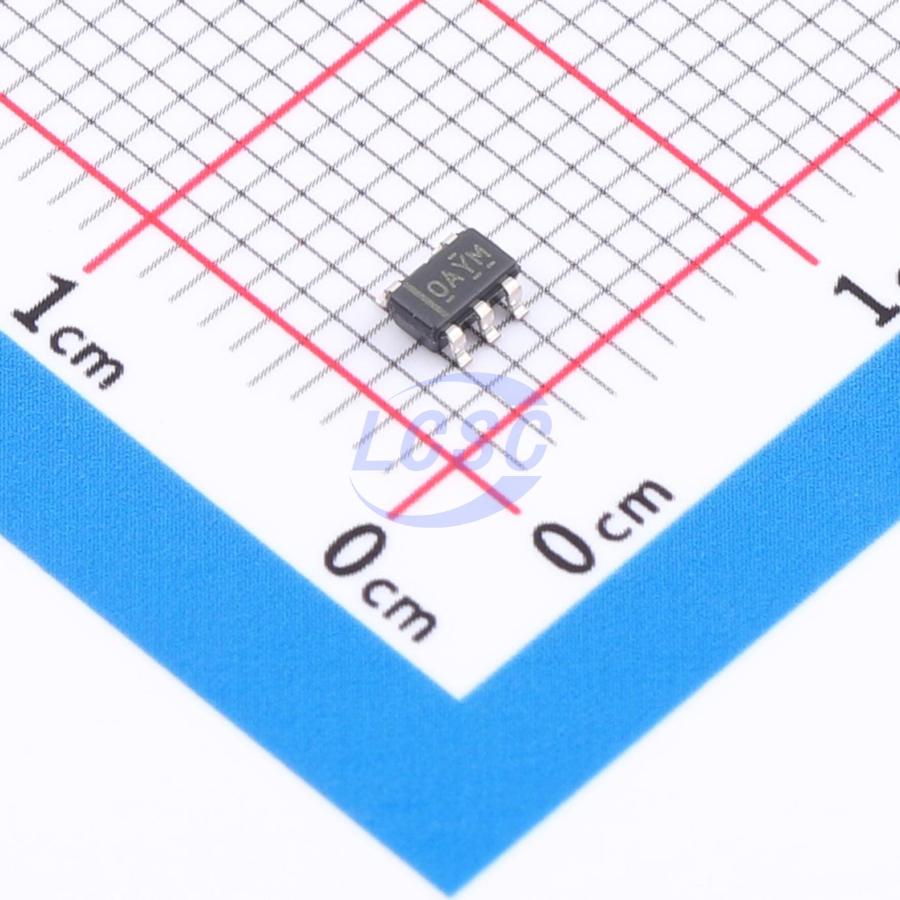

OPA336MDBVREP
5mA 1 500uV 0.03V/us 86dB 1pA 23uA 100kHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE-SUPPLY MICRO-POWER CMOS OPERATIONAL AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- OPA336MDBVREP
- Store part #
- C2058746
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C2058746
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,620.73 | ₹1,620.73 |
| 10+ | ₹1,462.22 | ₹14,622.20 |
| 30+ | ₹1,360.51 | ₹40,815.30 |
| 100+ | ₹1,262.46 | ₹1,26,246.00 |
1 × ₹1,620.73
₹1,620.73
excl. GST
₹1,912.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA336MDBVREP
₹1,620.73 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 0.03V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 1pA
- Quiescent Current
- 23uA
- Gain Bandwidth Product
- 100kHz
- Features
- Reverse-phase input protection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The OPA336 micro-power CMOS operational amplifier (MicroAmplifier series) is designed for battery-powered applications. The device operates on a single supply, with operation as low as 2.1 V. The output is rail to rail and swings to within 3 mV of the supplies with a 100-kΩ load. The common-mode range extends to the negative supply — ideal for single-supply applications. In addition to small size and low quiescent current (23 μA/amplifier), the OPA336 features low offset voltage (500 μV typical), low input bias current (1 pA), and high open-loop gain (115 dB). The device is packaged in the tiny DBV (SOT23-5) surface-mount package. It operates from -55°C to 125°C.
Applications
- Battery-Powered Instruments
- Portable Devices
- High-Impedance Applications
- Photodiode Preamplifiers
- Precision Integrators
- Medical Instruments
- Test Equipment
Key features
- Controlled Baseline – One Assembly/Test Site, One Fabrication Site
- Extended Temperature Performance of -55°C to 125°C
- Enhanced Diminishing Manufacturing Sources (DMS) Support
- Enhanced Product-Change Notification
- Qualification Pedigree
- Single-Supply Operation
- Rail-to-Rail Output (Within 3 mV)
- Micro Power: I₀ = 23 μA/amplifier
- Micro-Size Packages
- Low Offset Voltage: 500 μV Typical Specified From Vₛ = 2.3 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA336N/250#C179932TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹560.01 · 10 in stock | View |
 | OPA336NA/250#C2057608TI · SOT-23-5 | TI | SOT-23-5 | 47 | ₹415.58 · 47 in stock | View |
 | OPA336NJ/3K#C2060861TI · SOT-23-5 | TI | SOT-23-5 | 48 | ₹189.82 · 48 in stock | View |
