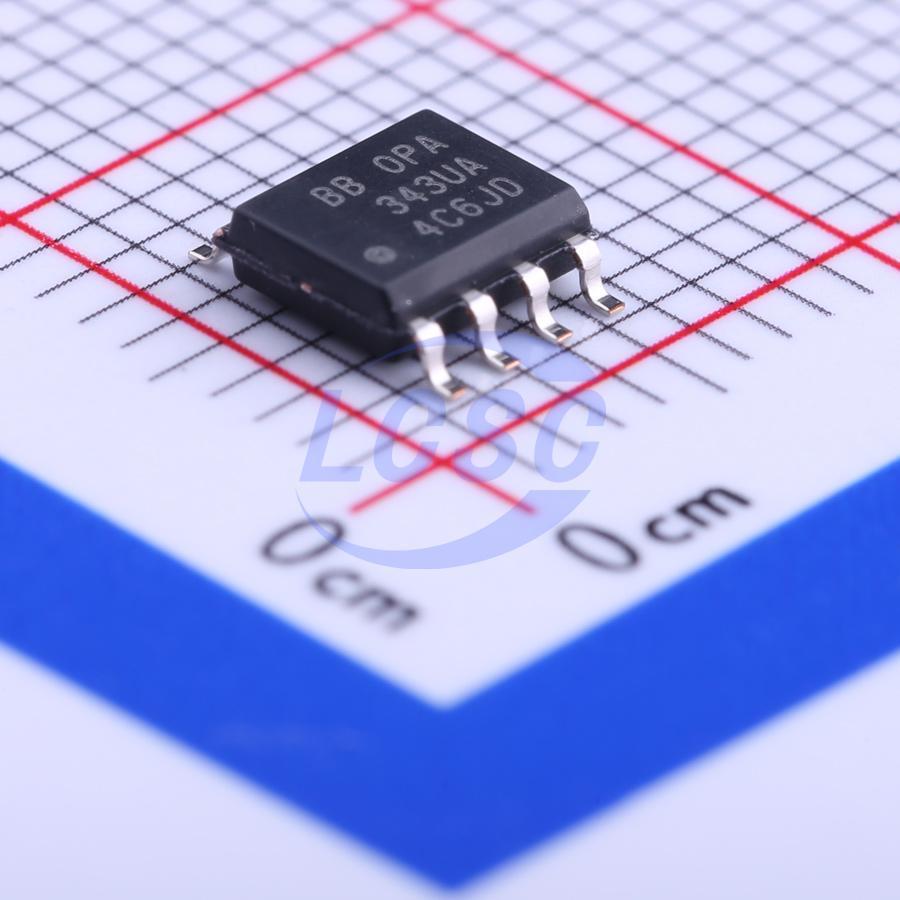

OPA343UA/2K5
50mA 1 8mV 6V/us 75dB 10pA 5.5MHz 850uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
SINGLE-SUPPLY, RAIL-TO-RAIL OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- OPA343UA/2K5
- Store part #
- C57266
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C57266
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹588.66 | ₹588.66 |
| 10+ | ₹518.19 | ₹5,181.90 |
| 30+ | ₹482.21 | ₹14,466.30 |
| 100+ | ₹434.06 | ₹43,406.00 |
| 500+ | ₹416.72 | ₹2,08,360.00 |
| 1,000+ | ₹409.35 | ₹4,09,350.00 |
1 × ₹588.66
₹588.66
excl. GST
₹694.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA343UA/2K5
₹588.66 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 8mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Gain Bandwidth Product
- 5.5MHz
- Quiescent Current
- 850uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
OPA343 series rail-to-rail CMOS operational amplifiers are designed for low-cost, miniature applications. They are optimized for low-voltage, single-supply operation. Rail-to-rail input/output and high-speed operation make them ideal for driving sampling Analog-to-Digital (A/D) converters. They are also well suited for general-purpose and audio applications as well as providing I/V conversion at the output of Digital-to-Analog (D/A) converters. Single, dual, and quad versions have identical specifications for design flexibility.
Applications
- DRIVING A/D CONVERTERS
- PCMCIA CARDS
- DATA ACQUISITION
- AUDIO PROCESSING
- COMMUNICATIONS
- ACTIVE FILTERS
- TEST EQUIPMENT
Key features
- RAIL-TO-RAIL INPUT/OUTPUT
- MICRO SIZE PACKAGES
- WIDE BANDWIDTH: 5.5MHz
- HIGH SLEW RATE: 6V/µs
- LOW THD + NOISE: 0.0007% (f = 1kHz)
- LOW QUIESCENT CURRENT: 850µA/chan
- SINGLE, DUAL, AND QUAD VERSIONS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA340UA(UMW)#C22365307UMW · SOP-8 | UMW | SOP-8 | 4,763 | ₹52.06 · 4,763 in stock | View |
 | OPA365AIDR#C543070TI · SOIC-8 | TI | SOIC-8 | 428 | ₹322.19 · 428 in stock | View |
 | OPA350UA#C2862236TI · SOIC-8 | TI | SOIC-8 | 646 | ₹581.25 · 646 in stock | View |
 | RS821XK#C5372619RUNIC · SOIC-8 | RUNIC | SOIC-8 | 2,785 | ₹59.68 · 2,785 in stock | View |
 | OPA354AIDDAR#C1848193TI · Power-Pad-SO-8 | TI | Power-Pad-SO-8 | 188 | ₹355.25 · 188 in stock | View |
