TIDatasheet (PDF)

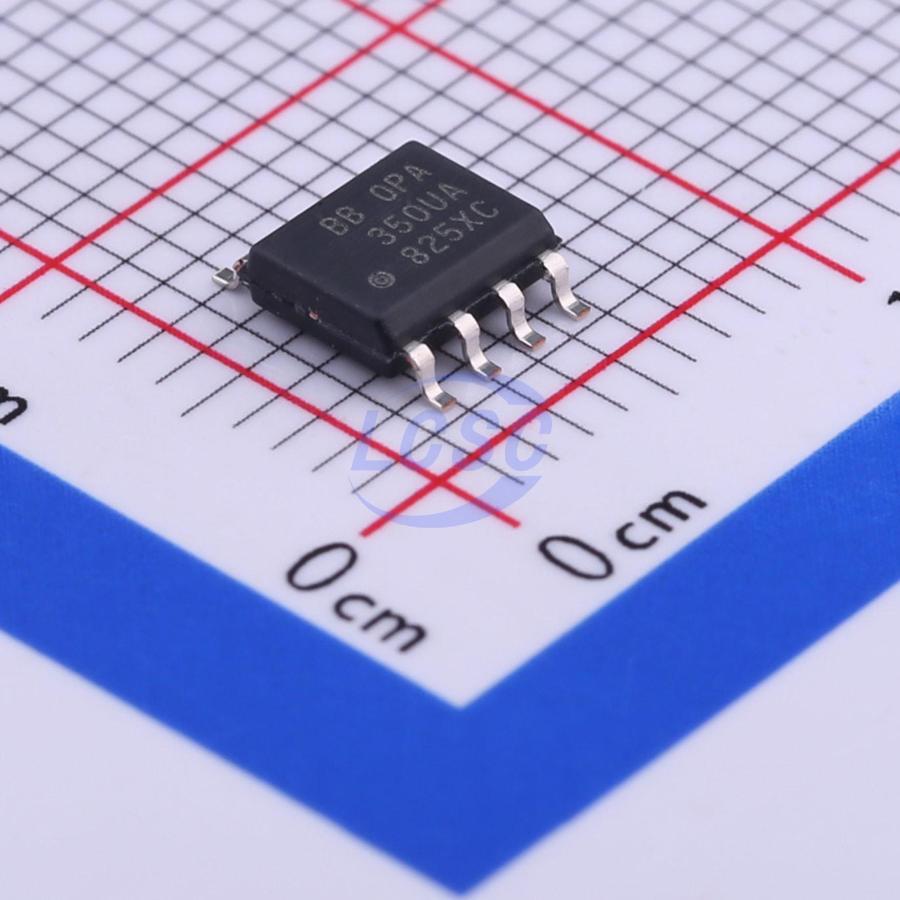

OPA350UA/2K5
40mA 1 150uV 22V/us 90dB 0.5pA 5.2mA 38MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA350UA/2K5
- Store part #
- C13388
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,024 in stock
#C13388
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹322.84 | ₹322.84 |
| 10+ | ₹276.78 | ₹2,767.80 |
| 30+ | ₹247.89 | ₹7,436.70 |
| 100+ | ₹218.35 | ₹21,835.00 |
| 500+ | ₹204.88 | ₹1,02,440.00 |
| 1,000+ | ₹199.23 | ₹1,99,230.00 |
1 × ₹322.84
₹322.84
excl. GST
₹380.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA350UA/2K5
₹322.84 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 22V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 0.5pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 5.2mA
- Gain Bandwidth Product
- 38MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 7nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
RAIL-TO-RAIL INPUT - RAIL-TO-RAIL OUTPUT (within 10mV) - WIDE BANDWIDTH: 38MHz - HIGH SLEW RATE: 22V/μs - LOW NOISE: 5nV/√Hz - LOW THD+NOISE: 0.0006% - UNITY-GAIN STABLE - MicroSIZE PACKAGES - SINGLE, DUAR, AND QUAD
Applications
- CELL PHONE PA CONTROL LOOPS
- DRIVING A/D CONVERTERS
- VIDEO PROCESSING
- DATA ACQUISITION
- PROCESS CONTROL
- AUDIO PROCESSING
- COMMUNICATIONS
- ACTIVE FILTERS
- TEST EQUIPMENT
Key features
- RAIL-TO-RAIL INPUT
- RAIL-TO-RAIL OUTPUT (within 10mV)
- WIDE BANDWIDTH: 38MHz
- HIGH SLEW RATE: 22V/μs
- LOW NOISE: 5nV/√Hz
- LOW THD+NOISE: 0.0006%
- UNITY-GAIN STABLE
- MicroSIZE PACKAGES
- SINGLE, DUAR, AND QUAD
