TIDatasheet (PDF)

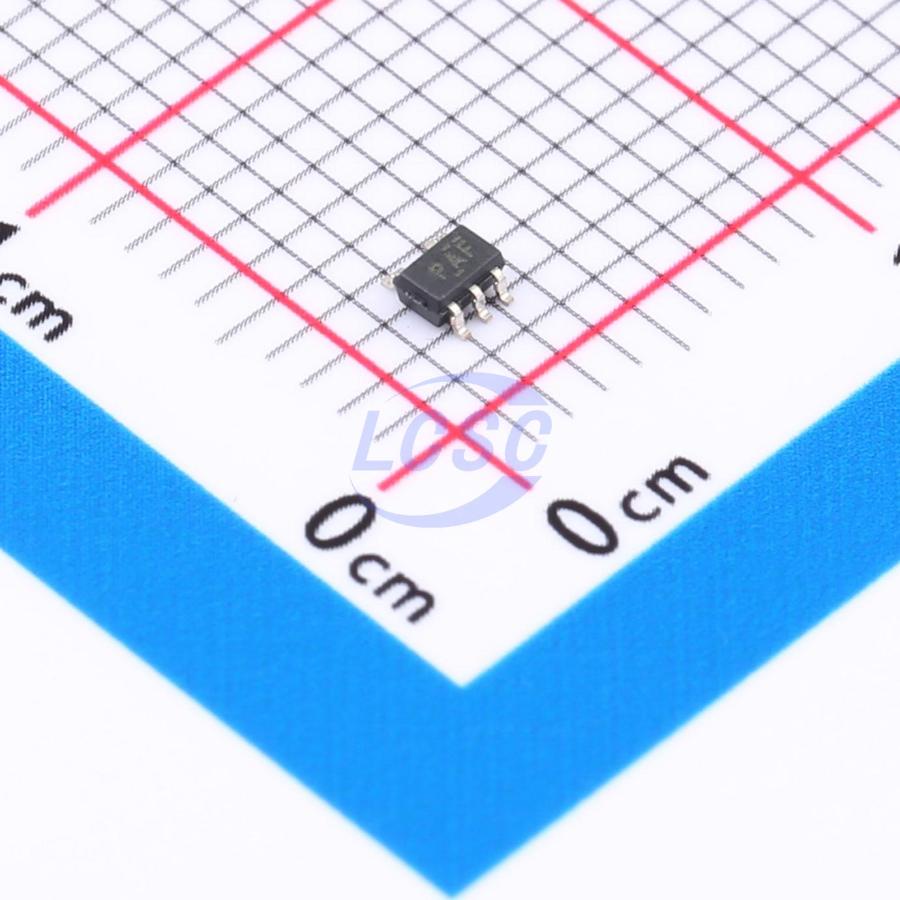

OPA377AIDCKT
30mA 1 1mV 2V/us 90dB 0.2pA 5.5MHz 760uA Rail-to-rail output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-5ROHS3 CompliantActive
5MHz, Low-Noise, Single, Dual, Quad CMOS Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA377AIDCKT
- Store part #
- C2058991
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C2058991
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.94 | ₹177.94 |
| 10+ | ₹146.65 | ₹1,466.50 |
| 30+ | ₹129.50 | ₹3,885.00 |
| 250+ | ₹109.94 | ₹27,485.00 |
| 500+ | ₹101.46 | ₹50,730.00 |
| 1,000+ | ₹97.56 | ₹97,560.00 |
1 × ₹177.94
₹177.94
excl. GST
₹209.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
OPA377AIDCKT
₹177.94 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 5.5MHz
- Quiescent Current
- 760uA
- Features
- EMI filtering/RF suppression;Built-in compensation;ESD protection
- Input Voltage Noise Density
- 7.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.016 g
Overview
The OPA377 family of operational amplifiers are wide-bandwidth CMOS amplifiers that provide very low noise, low input bias current, and low offset voltage while operating on a low quiescent current of 0.76mA (typ). The OPA377 op amps are optimized for low-voltage, single-supply applications. The exceptional combination of ac and dc performance make them ideal for a wide range of applications, including small signal conditioning, audio, and active filters. In addition, these parts have a wide supply range with excellent PSRR, making them attractive for applications that run directly from batteries without regulation. The OPA377 is available in the SC70-5, SOT23-5, and SO-8 packages. The dual OPA2377 is offered in the SO-8 and MSOP-8, and the quad OPA4377 in the TSSOP-14 packages. All versions are specified for operation from -40°C to +125°C.
Applications
- PHOTODIODE PREAMP
- PIEZOELECTRIC SENSOR PREAMP
- SENSOR SIGNAL CONDITIONING
- AUDIO EQUIPMENT
- ACTIVE FILTERS
Key features
- GAIN BANDWIDTH PRODUCT: 5.5MHz
- LOW NOISE: 7.5nV/√Hz at 1kHz
- OFFSET VOLTAGE: 1mV (max)
- INPUT BIAS CURRENT: 0.2pA
- RAIL-TO-RAIL OUTPUT
- UNITY-GAIN STABLE
- EMI INPUT FILTERING
- QUIESCENT CURRENT: 0.76mA/ch
- SUPPLY VOLTAGE: 2.2V to 5.5V
- SMALL PACKAGES: SC70, SOT23, and MSOP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA377AIDCKR#C201621TI · SC-70-5 | TI | SC-70-5 | 3 | ₹220.77 · 3 in stock | View |
 | AD8691AKSZ-REEL7#C141899ADI · SC-70-5 | ADI | SC-70-5 | 1,321 | ₹211.87 · 1,321 in stock | View |
 | OPA375IDCKR#C2059008TI · SC-70-5 | TI | SC-70-5 | 1,479 | ₹126.97 · 1,479 in stock | View |
 | TLV6741DCKR#C2760465TI · SC-70-5 | TI | SC-70-5 | 16,990 | ₹93.32 · 16,990 in stock | View |
 | LMV721IDCKR#C485812TI · SC-70-5 | TI | SC-70-5 | 5 | ₹113.00 · 5 in stock | View |
