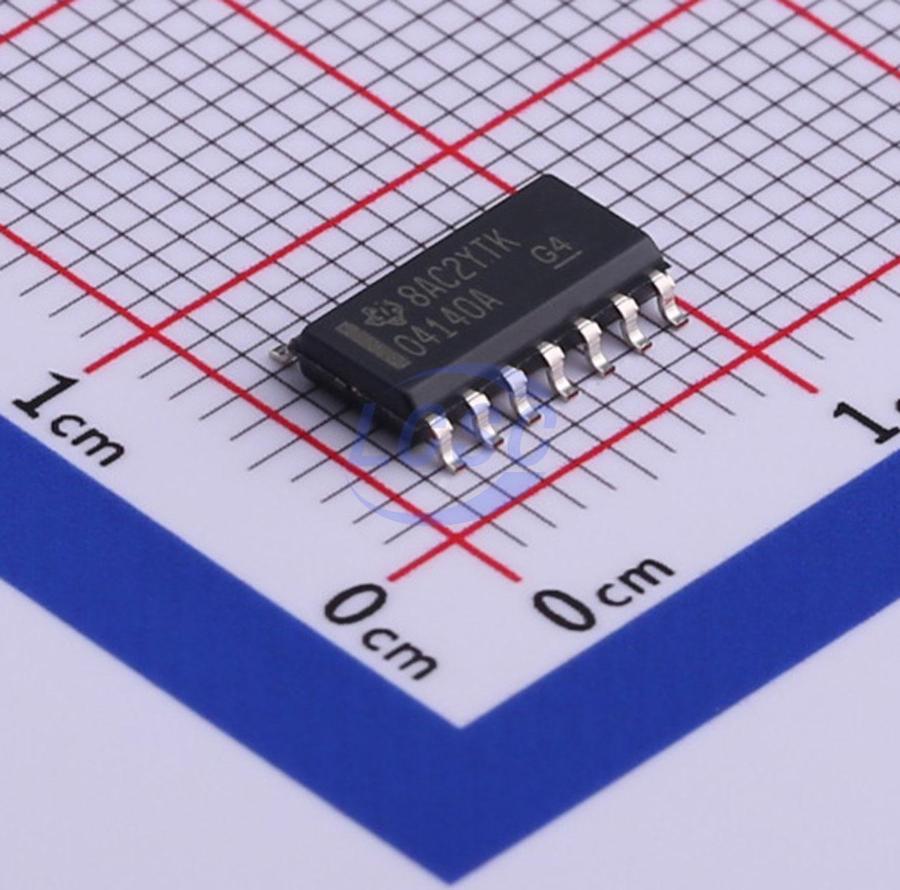

OPA4140AIDR

The OPA140, OPA2140, and OPA4140 operational amplifier (op amp) family is a series of low-power JFET input amplifiers that features good drift and low input bias current. The rail-to-rail output swing and input range that includes V- allow designers to take advantage of the low-noise characteristics of JFET amplifiers while also interfacing to modern, single-supply, precision analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). The OPA140 achieves 11-MHz unity-gain bandwidth and 20 V/μs slew rate while consuming only 1.8 mA (typical) of quiescent current. It runs on a single 4.5-V to 36-V supply or dual ±2.25-V to ±18-V supplies. All versions are fully specified from -40°C to +125°C for use in the most challenging environments. The OPA140 (single) is available in the 5-pin SOT-23, 8-pin VSSOP, and 8-pin SOIC packages; the OPA2140 (dual) is available in both 8-pin VSSOP and 8-pin SOIC packages; and the OPA4140 (quad) is available in the 14-pin SOIC and 14-pin TSSOP packages.

Applications

• Battery-Powered Instruments
• Industrial Controls
• Medical Instrumentation
• Photodiode Amplifiers
• Active Filters
• Data Acquisition Systems Automatic Test Systems

Key features

• Very-Low Offset Drift: 1 μV/°C maximum
• Very-Low Offset: 120 μV
• Low Input Bias Current: 10 pA maximum
• Very-Low 1/f Noise: 250 nVPP, 0.1 Hz to 10 Hz
• Low Noise: 5.1 nV/√Hz
• Slew Rate: 20 V/μs
• Low Supply Current: 2 mA maximum
• Input Voltage Range Includes V- supply
• Single-Supply Operation: 4.5 V to 36 V
• Dual-Supply Operation: ±2.25 V to ±18 V
• No Phase Reversal
• Industry-Standard SOIC Packages
• VSSOP, TSSOP, and SOT-23 Packages
