UMWDatasheet (PDF)

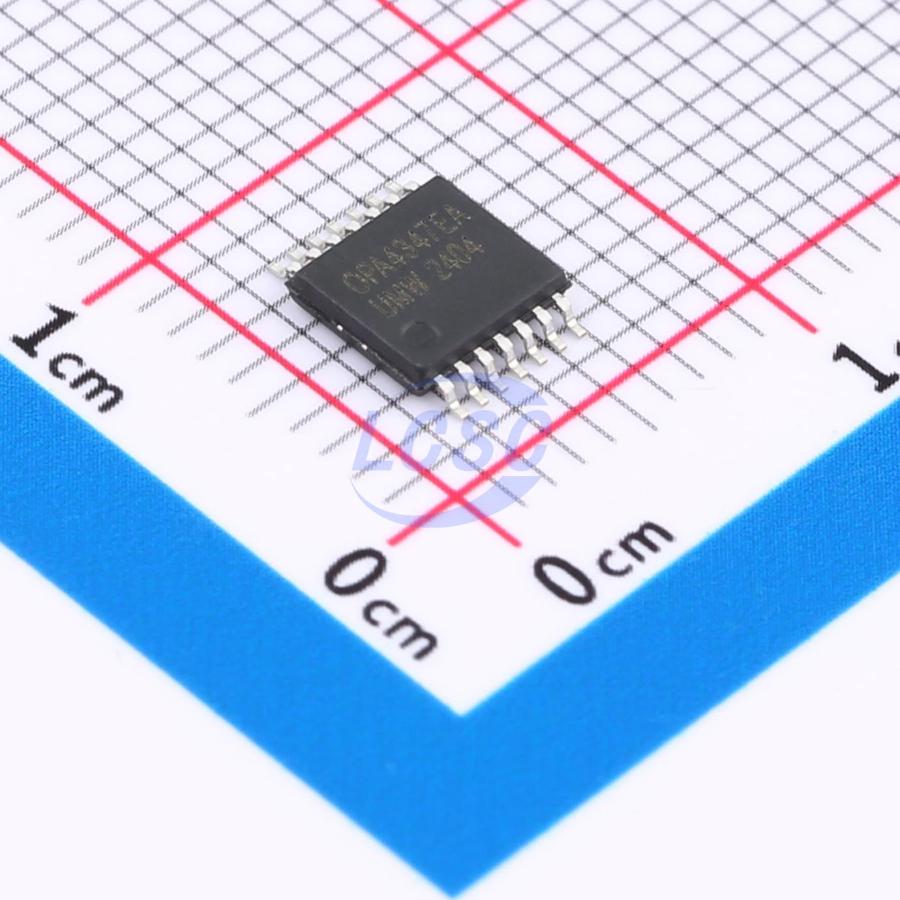

OPA4347EA(UMW)
17mA 4 2mV 170V/ms 80dB 0.5pA 20uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
microPower, Rail-to-Rail Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- OPA4347EA(UMW)
- Store part #
- C22368272
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,837 in stock
#C22368272
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.22 | ₹61.22 |
| 10+ | ₹54.56 | ₹545.60 |
| 30+ | ₹51.12 | ₹1,533.60 |
| 100+ | ₹47.68 | ₹4,768.00 |
| 500+ | ₹45.54 | ₹22,770.00 |
| 1,000+ | ₹44.47 | ₹44,470.00 |
1 × ₹61.22
₹61.22
excl. GST
₹72.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OPA4347EA(UMW)
₹61.22 for 1 + GST
Specifications
- Output Current
- 17mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 170V/ms
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 0.5pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 20uA
- Gain Bandwidth Product
- 350kHz
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.159 g
Overview
The OPA347 features a compact form factor and ultra-low power consumption (34μA max per channel), making it ideal for portable and battery-powered applications. Its input range extends 200mV beyond the supply rails, while the output swings to within 5mV of the supply rails. The OPA347 also offers an excellent speed-to-power ratio with a bandwidth of 350kHz. The device operates from a single or dual supply of 2.3V to 5.5V, and all versions are rated for an operating temperature range of -55℃ to +125℃.
Applications
- Portable devices
- Battery-powered devices
- Two-wire transmitters
- Smoke detectors
- Carbon monoxide detectors
Key features
- Low quiescent current IQ: 20μA
- High speed/power ratio, bandwidth: 350kHz
- Rail-to-rail input and output
- Single supply: 2.3V ~ 5.5V
