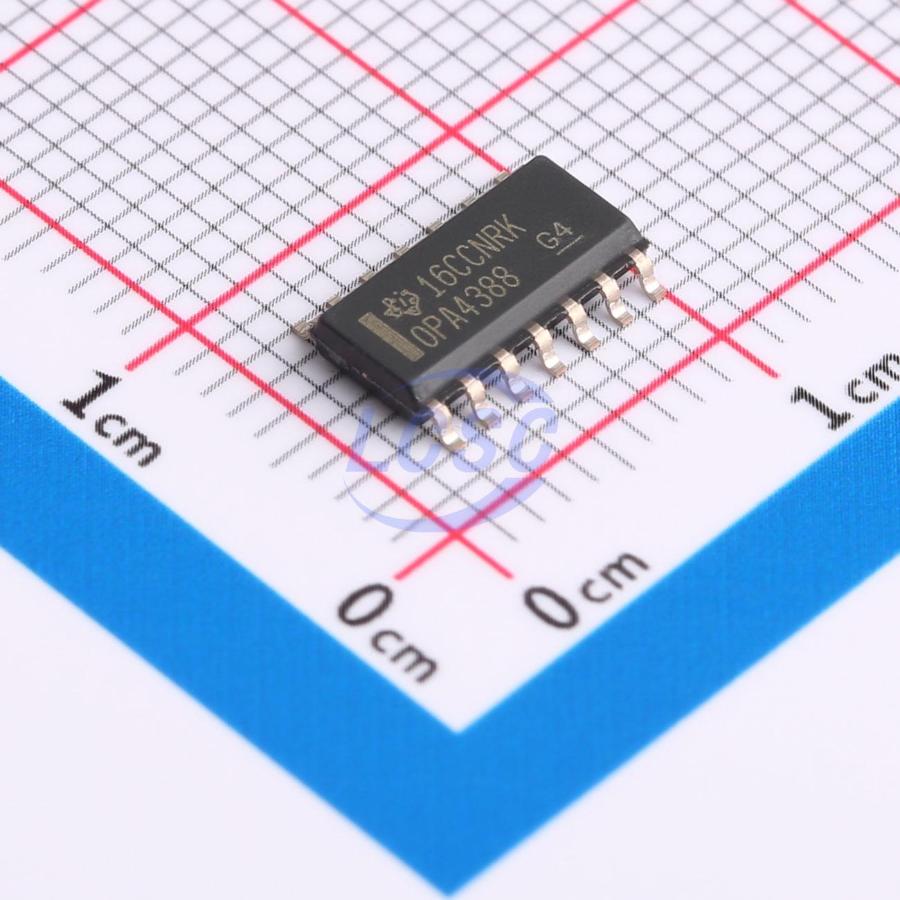

OPA4388IDR
60mA Four channels 2.25uV 5V/us 140dB 30pA 1.9mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
OPAx388 Precision, Zero-Drift, Zero-Crossover, True Rail-to-Rail Input/Output Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA4388IDR
- Store part #
- C2058505
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
382 in stock
#C2058505
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹522.03 | ₹522.03 |
| 10+ | ₹465.22 | ₹4,652.20 |
| 30+ | ₹436.26 | ₹13,087.80 |
| 100+ | ₹397.30 | ₹39,730.00 |
| 500+ | ₹383.37 | ₹1,91,685.00 |
| 1,000+ | ₹377.49 | ₹3,77,490.00 |
1 × ₹522.03
₹522.03
excl. GST
₹616.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA4388IDR
₹522.03 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 2.25uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 500pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Quiescent Current
- 1.9mA
- Gain Bandwidth Product
- 10MHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection
- Input Voltage Noise Density
- 7nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
The OPAx388 (OPA388, OPA2388, and OPA4388) series of precision operational amplifiers are ultra-low noise, fast-settling, zero-drift, and zero-crossing devices that can operate with rail-to-rail inputs and outputs. These features, combined with excellent AC performance, an offset voltage of only 0.25µV, and a temperature drift of 0.005µV/°C, make the OPAx388 an ideal choice for driving high-precision analog-to-digital converters (ADCs) or buffering the outputs of high-resolution digital-to-analog converters (DACs). This design offers excellent performance when driving analog-to-digital converters (ADCs) without degrading linearity. The OPA388 (single-channel version) is available in three packages: VSSOP - 8, SOT23 - 5, and SOIC - 8. The OPA2388 (dual-channel version) is available in two packages: VSSOP - 8 and SO - 8. The OPA4388 (quad-channel version) is available in two packages: TSSOP - 14 and SO - 14. All versions are rated for an operating temperature range of -40°C to +125°C. The OPA388 supports high-precision, low-error measurements.
Applications
- Commercial networking and server PSU
- Laptop power adapter design
- Weighing scales
- Laboratory and field instrumentation
- Battery testing
- Electronic thermometers
- Temperature transmitters
- OPA388 in high CMRR instrumentation amplifier applications
Key features
- Ultra-low offset voltage: ±0.25µV
- Zero drift: ±0.005µV/°C
- Zero crossover: 140dB CMRR true RRIO
- Low noise: 7.0nV/√Hz (at 1kHz)
- No 1/f noise: 140nVPP (0.1Hz to 10Hz)
- Fast settling: 2µs (1V, 0.01%)
- Gain bandwidth: 10MHz
- Single supply: 2.5V to 5.5V
- Dual supply: ±1.25V to ±2.75V
- True rail-to-rail input and output
- EMI/RFI filtered inputs
- Industry-standard packages:
- Single-channel versions available in SOIC-8, SOT-23-5, and VSSOP-8
- Dual-channel versions available in SOIC-8 and VSSOP-8
- Quad-channel versions available in SOIC-14 and TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA4388ID#C1346831TI · SOIC-14 | TI | SOIC-14 | 16 | ₹851.84 · 16 in stock | View | |
 | OPA4388IDR(UMW)#C22469439UMW · SOP-14 | UMW | SOP-14 | 1,335 | ₹45.27 · 1,335 in stock | View |
 | OPA4388ID(UMW)#C22469438UMW · SOP-14 | UMW | SOP-14 | 13,195 | ₹44.93 · 13,195 in stock | View |
 | TP2314-SR#C1821023PEAK · SOP-14 | 3PEAK | SOP-14 | 3,172 | ₹162.86 · 3,172 in stock | View |
 | AD8608ARZ-REEL7#C38255ADI · SOIC-14 | ADI | SOIC-14 | 1,000 | ₹720.20 · 1,000 in stock | View |
