TIDatasheet (PDF)

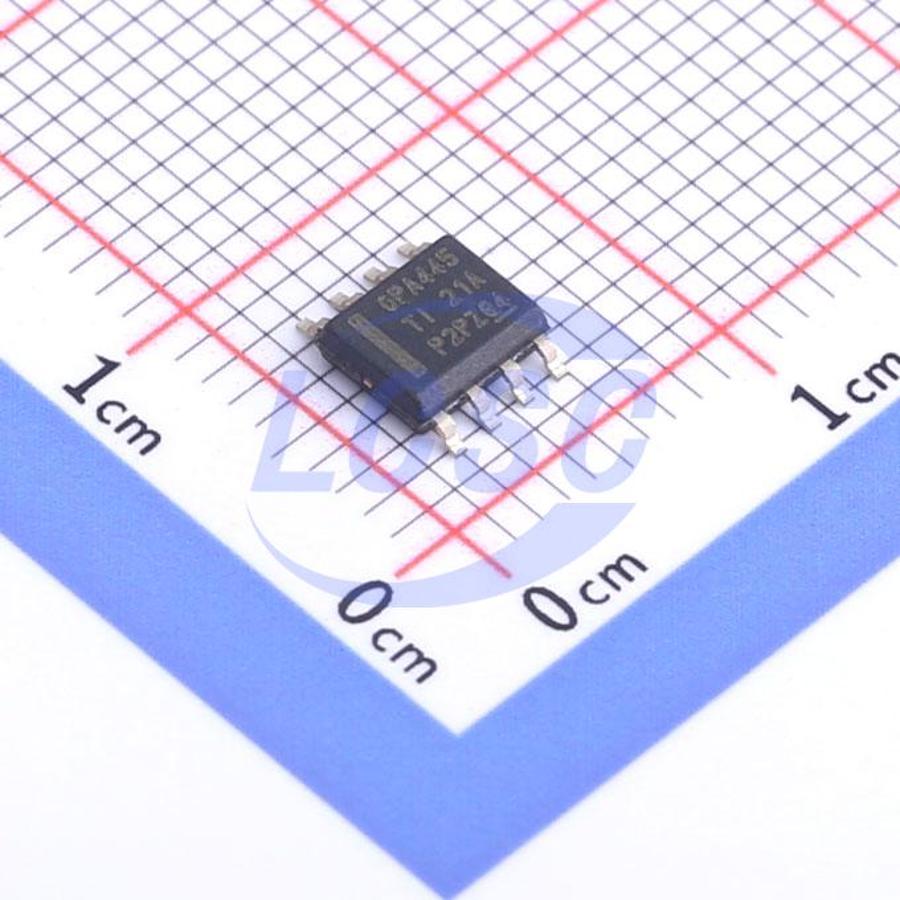

OPA445ADDAR
15mA 1 1.5mV 15V/us 10pA 95dB 4.2mA 2MHz SOPowerPAD-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOPowerPAD-8ROHS3 CompliantActive
High Voltage FET-Input Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA445ADDAR
- Store part #
- C1348607
- Package / case
- SOPowerPAD-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C1348607
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,791.93 | ₹2,791.93 |
| 10+ | ₹2,522.64 | ₹25,226.40 |
| 30+ | ₹2,425.07 | ₹72,752.10 |
| 100+ | ₹2,231.46 | ₹2,23,146.00 |
1 × ₹2,791.93
₹2,791.93
excl. GST
₹3,294.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA445ADDAR
₹2,791.93 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 15V/us
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -55℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 4.2mA
- Gain Bandwidth Product
- 2MHz
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -45V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The OPA445 is a monolithic operational amplifier capable of operation from power supplies up to ±45V and output currents of 15mA. It is useful in a wide variety of applications requiring high output voltage or large common - mode voltage swings. The OPA445's high slew rate provides wide power bandwidth response, which is often required for high - voltage applications. FET input circuitry allows the use of high - impedance feedback networks, thus minimizing their output loading effects. Laser trimming of the input circuitry yields low input offset voltage and drift. The OPA445 is available in standard pinout TO - 99, DIP - 8, and SO - 8 surface - mount packages as well as an SO - 8 PowerPAD package for reducing junction temperature. It is fully specified from - 25°C to + 85°C and operates from - 55°C to + 125°C.
Applications
- TEST EQUIPMENT
- HIGH - VOLTAGE REGULATORS
- POWER AMPLIFIERS
- DATA ACQUISITION
- SIGNAL CONDITIONING
- AUDIO
- PIEZO DRIVERS
Key features
- WIDE - POWER SUPPLY RANGE: ±10V to ±45V
- HIGH SLEW RATE: 15V/μs
- LOW INPUT BIAS CURRENT: 10pA
- STANDARD - PINOUT TO - 99, DIP, SO - 8 PowerPADTM, AND SO - 8 SURFACE - MOUNT PACKAGES
