TIDatasheet (PDF)

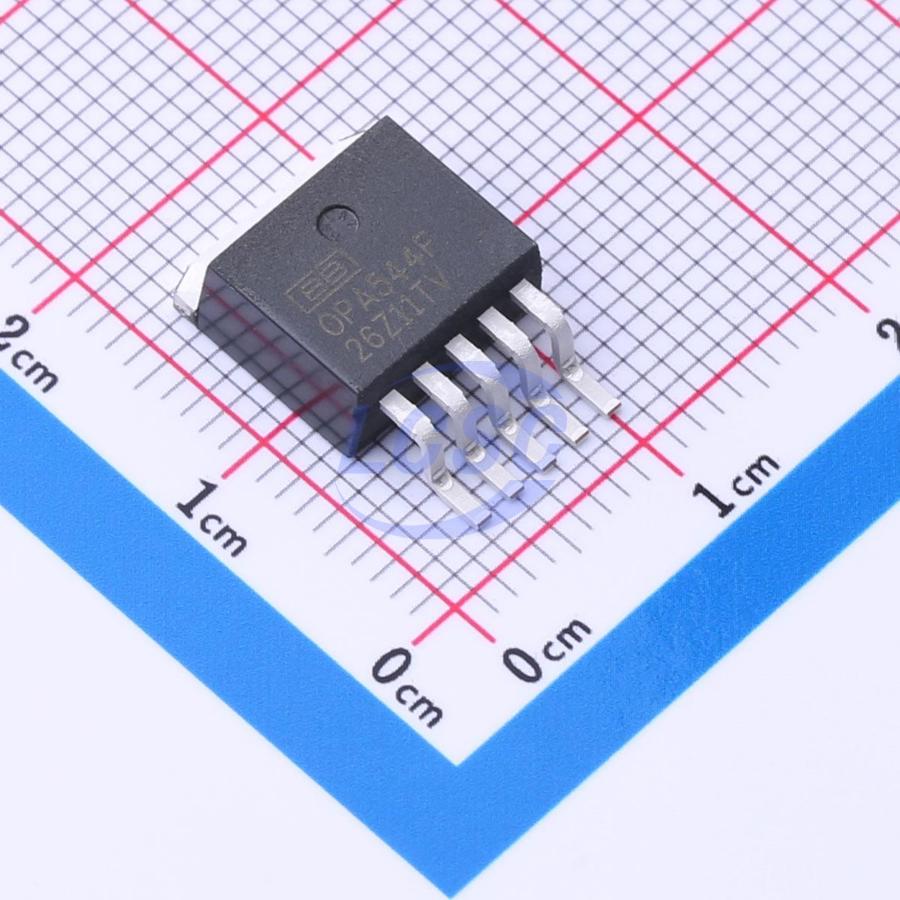

OPA544FKTTT
Standard (General Purpose) Amplifier 1 Circuit TO-263-5
TO-263-5ROHS3 CompliantActive
High-Voltage, High-Current Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA544FKTTT
- Store part #
- C2060720
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C2060720
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,684.06 | ₹2,684.06 |
| 10+ | ₹2,559.58 | ₹25,595.80 |
| 30+ | ₹2,343.76 | ₹70,312.80 |
| 100+ | ₹2,155.62 | ₹2,15,562.00 |
1 × ₹2,684.06
₹2,684.06
excl. GST
₹3,167.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
OPA544FKTTT
₹2,684.06 for 1 + GST
Specifications
- Output Current
- 4A
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 106dB
- Ib - Input Bias Current
- 10uA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 12mA
- Gain Bandwidth Product
- 1.4MHz
- Input Voltage Noise Density
- 36nV/√Hz@1kHz
- Dual Supply
- -35V~-10V;10V~35V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.66 g
Overview
Applications
- The OPA544 can be used in virtually any op amp configuration.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA544F/500#C527495TI · TO-263-5 | TI | TO-263-5 | On request | ₹1,936.87 · 0 in stock | View |
