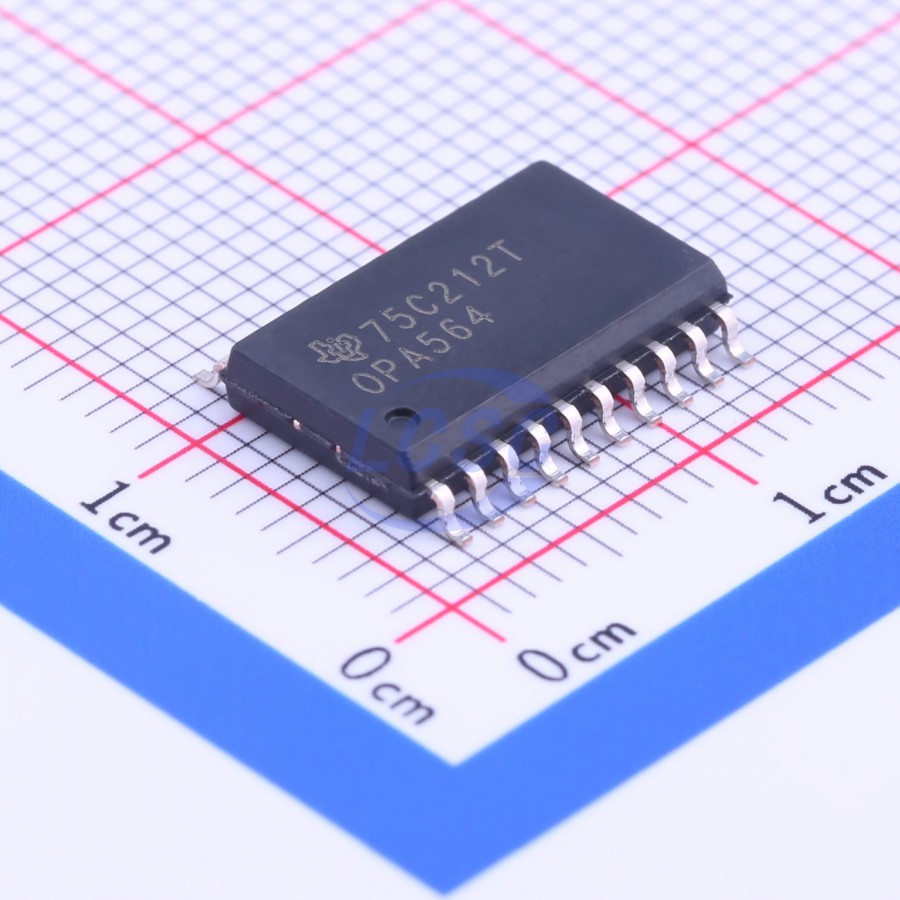

OPA564AIDWPR

1.5A 1 2mV 40V/us 80dB 10pA 39mA 17MHz SO-20 Instrumentation, Op Amps, Buffer Amps RoHS

SO-20ROHS3 CompliantActive

1.5A, 24V, 17MHz Power Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA564AIDWPR
Store part #: C188648
Package / case: SO-20
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

809 in stock

#C188648

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹764.71	₹764.71
10+	₹681.89	₹6,818.90
30+	₹628.98	₹18,869.40
100+	₹577.82	₹57,782.00

Quantity (min 1)

1 × ₹764.71

₹764.71

excl. GST

₹902.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

OPA564AIDWPR

₹764.71 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 1.5A
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 40V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 39mA
Gain Bandwidth Product: 17MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 10nV/√Hz@1kHz
Dual Supply: -12V~-3.5V;3.5V~12V
Single Supply: 7V~24V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.42 g

Overview

The OPA564 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications. The OPA564 operates from a single supply of 7V to 24V, or dual power supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, a wide output swing provides a 20VPP (IOUT = 1.5A) capability with a nominal 24V supply. The OPA564 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided; one indicates current limit and the second shows a thermal over-temperature condition. It also has an Enable/Shutdown pin that can be forced low to shut down the output, effectively disconnecting the load. The OPA564 is housed in a thermally-enhanced, surface-mount PowerPAD package (HSOP-20) with the choice of the thermal pad on either the top side or the bottom side of the package. Operation for both versions is specified over the industrial temperature range, -40°C to +85°C.

Applications

POWERLINE COMMUNICATIONS
VALVE, ACTUATOR DRIVER
Vcom DRIVER
MOTOR DRIVER
AUDIO POWER AMPLIFIER
POWER-SUPPLY OUTPUT AMPLIFIER
TEST EQUIPMENT AMPLIFIER
TRANSDUCER EXCITATION
LASER DIODE DRIVER
GENERAL-PURPOSE LINEAR POWER BOOSTER

Key features

HIGH OUTPUT CURRENT: 1.5A
WIDE POWER-SUPPLY RANGE:
Single Supply: +7V to +24V; Dual Supply: ±3.5V to ±12V
LARGE OUTPUT SWING: 20VPP at 1.5A
FULLY PROTECTED:
THERMAL SHUTDOWN
ADJUSTABLE CURRENT LIMIT
DIAGNOSTIC FLAGS:
OVER-CURRENT
THERMAL SHUTDOWN
OUTPUT ENABLE/SHUTDOWN CONTROL
HIGH SPEED:
GAIN-BANDWIDTH PRODUCT: 17MHz
FULL-POWER BANDWIDTH AT 10VPP: 1.3MHz
SLEW RATE: 40V/μs
DIODE FOR JUNCTION TEMPERATURE MONITORING
HSOP-20 PowerPAD PACKAGE (Bottom- and Top-Side Thermal Pad Versions)

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	ADA4870ARRZ-RL#C157584ADI · PSOP-20	ADI	PSOP-20	599	₹3,137.75 · 599 in stock	View
	OPA564AIDWP#C1346863TI · Power-Pad-SO-20	TI	Power-Pad-SO-20	On request	₹954.80 · 0 in stock	View
