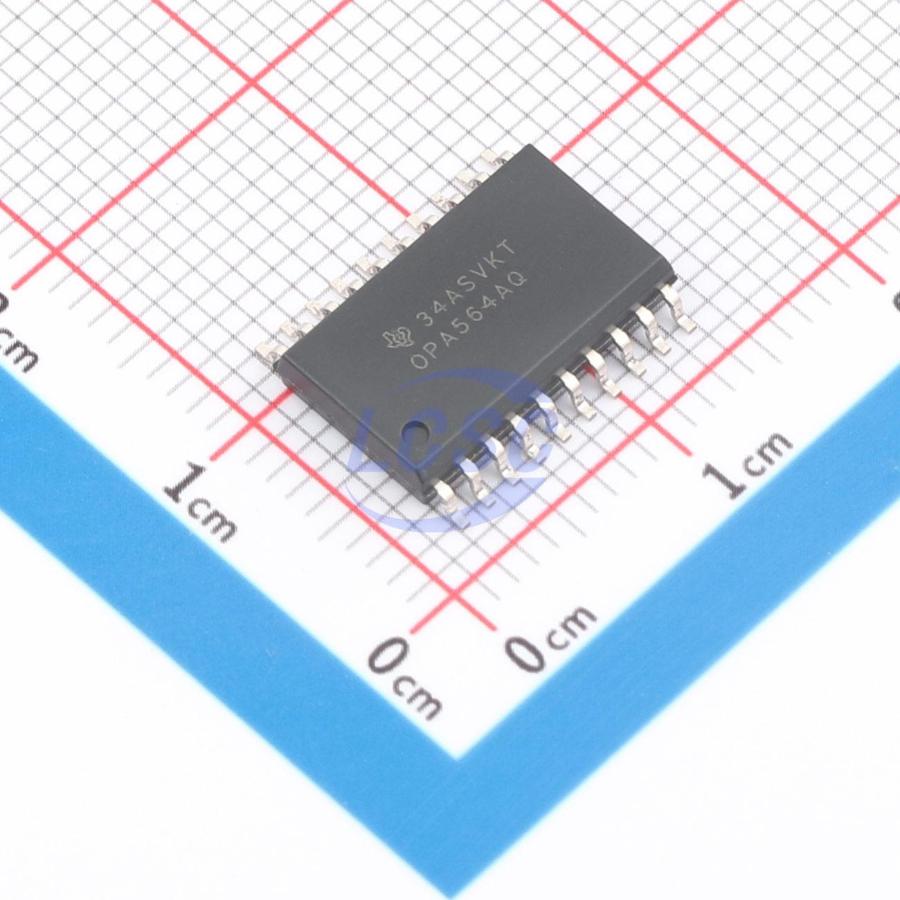

OPA564AQDWPRQ1

The OPA564-Q1 is a low-cost, high-current op-amp well suited for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic ICs deliver high reliability in demanding power line communication and motor control applications. The OPA564-Q1 operates from a single supply of 7V to 24V or dual supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, the wide output swing delivers 20VPP (IOUT = 1.5A) performance from a nominal 24V supply voltage. The OPA564-Q1 is protected internally against overtemperature conditions and current overload. The device provides accurate, user-selectable current limiting. Two flag outputs are provided: one indicates current limit and the other indicates overtemperature. The device also features an enable/shutdown (E/S) pin that can be forced low to disable the output, effectively disconnecting the load. The OPA564-Q1 is available in a thermally enhanced, surface-mount PowerPAD IC package (HSOIC-20).

Applications

• Power line communication resolver drivers
• Valve and actuator drivers
• VCOM driver motor drivers
• Audio power amplifiers
• Power supply output amplifiers
• Test equipment amplifiers
• Sensor excitation
• Laser diode driver general-purpose linear power supply boosters

Key features

• AEC-Q100 qualified for automotive applications
• Temperature Grade 1: -40°C to +125°C, TA
• High output current: 1.5A
• Wide supply voltage range:
• Single supply: 7V to 24V
• Dual supply: ±3.5V to ±12V
• Large output swing: 20VPP (at 1.5A)
• Comprehensive protection:
• Thermal shutdown with adjustable current limit
• Diagnostic flags:
• Overcurrent
• Thermal shutdown
• Output enable and shutdown (E/S) control
• High speed:
• Gain bandwidth product: 17MHz
• Full power bandwidth (at 10VPP): 1.3MHz
• Slew rate: 40V/μs
• Diode for junction temperature monitoring
• HSOIC-20 PowerPAD IC package
