TIDatasheet (PDF)

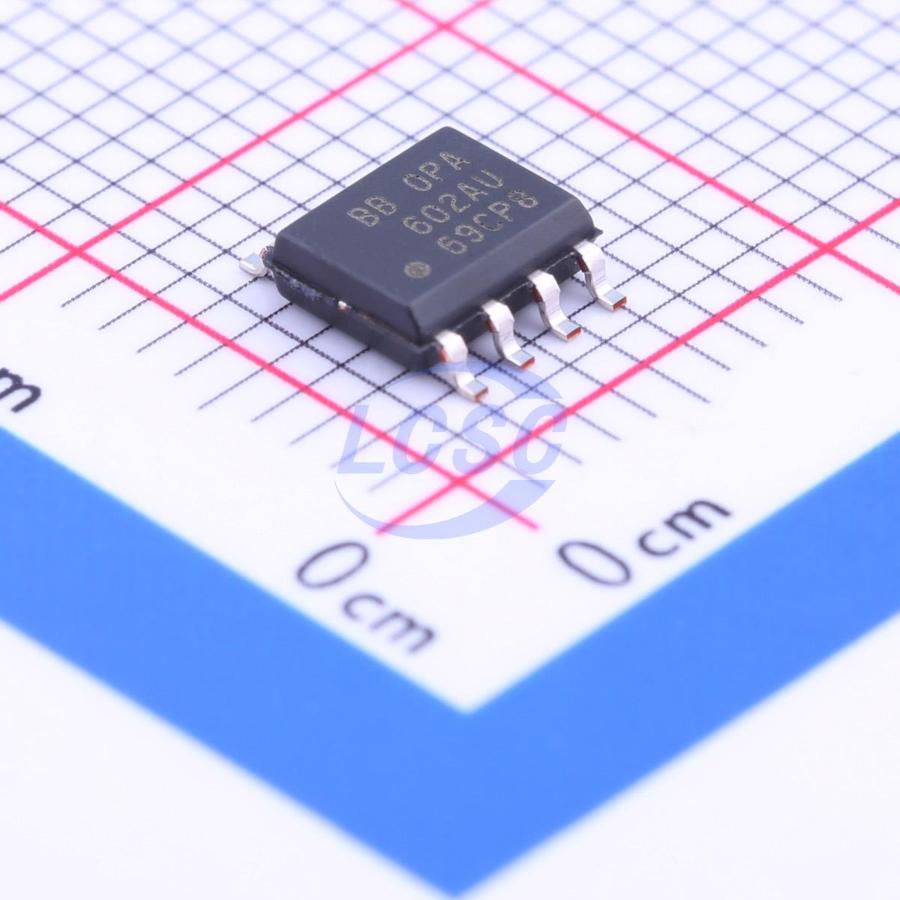

OPA602AU
20mA 1 1mV 35V/us 100dB 1pA 3mA 6.5MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
High-Speed Precision Difet OPERATIONAL AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- OPA602AU
- Store part #
- C41819
- Package / case
- SOIC-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C41819
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,373.78 | ₹2,373.78 |
| 10+ | ₹2,305.26 | ₹23,052.60 |
1 × ₹2,373.78
₹2,373.78
excl. GST
₹2,801.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
OPA602AU
₹2,373.78 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 35V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 3mA
- Gain Bandwidth Product
- 6.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 13nV/√Hz@1kHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The OPA602 is a precision, wide bandwidth FET operational amplifier. Monolithic Difet (dielectrically isolated FET) construction provides an unusual combination of high-speed and accuracy. Its wide-bandwidth design minimizes dynamic errors. High slew rate and fast settling time allow accurate signal processing in pulse and data conversion applications. Wide bandwidth and low distortion minimize AC errors. All specifications are rated with a 1kΩ resistor in parallel with 500pF load. The OPA602 is unity-gain stable and easily drives capacitive loads up to 1500pF. Laser-trimmed input circuitry provides offset voltage and drift performance normally associated with precision bipolar op amps. Difet construction achieves extremely low input bias currents (1pA max) without compromising input voltage noise. The OPA602’s unique input cascode circuitry maintains low input bias current and precise input characteristics over its full input common-mode voltage range.
Applications
- PRECISION INSTRUMENTATION
- OPTOELECTRONICS
- SONAR, ULTRASOUND
- PROFESSIONAL AUDIO EQUIPMENT
- MEDICAL EQUIPMENT DATA CONVERSION
Key features
- WIDE BANDWIDTH: 6.5MHz
- HIGH SLEW RATE: ±35/µs
- LOW OFFSET: ±250µV max
- LOW BIAS CURRENT: ±1pA max
- FAST SETTLING TIME: 1µs to 0.01%
- UNITY-GAIN STABLE
