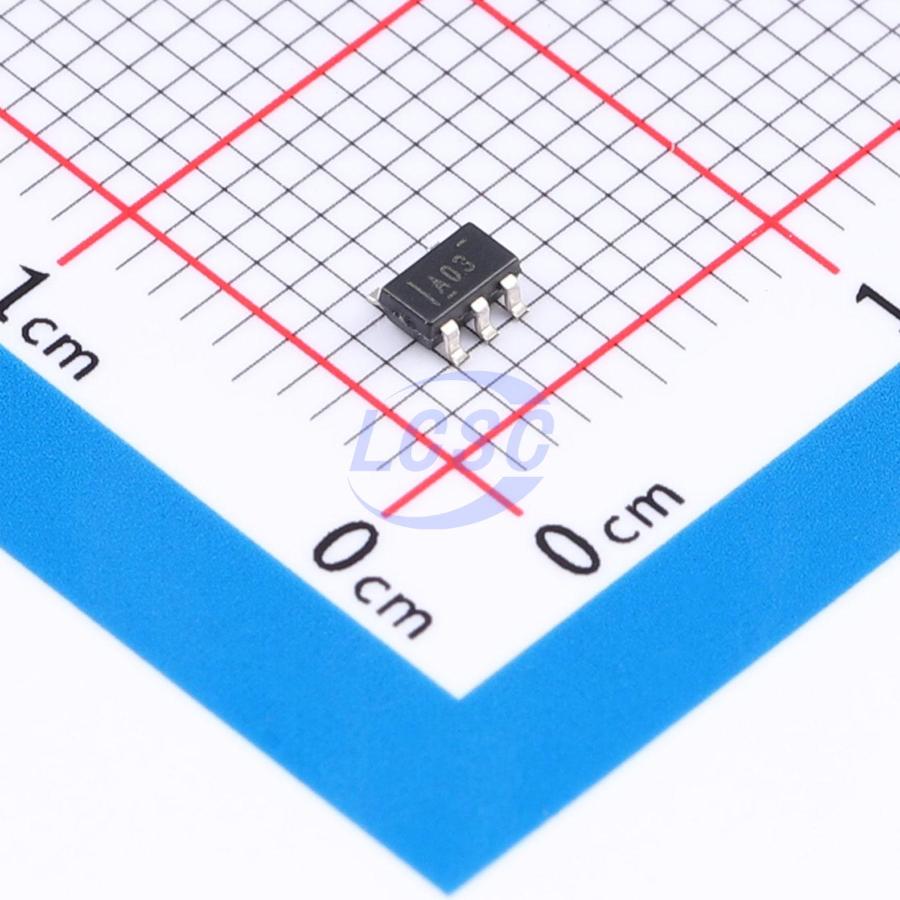

OPA703NA/250

10mA 1 160uV 600V/ms 90dB 1pA 160uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: OPA703NA/250
Store part #: C2877640
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2877640

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹621.98	₹621.98
10+	₹607.43	₹6,074.30
30+	₹597.88	₹17,936.40
100+	₹588.10	₹58,810.00

Quantity (min 1)

1 × ₹621.98

₹621.98

excl. GST

₹733.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

OPA703NA/250

₹621.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 160uV
Slew Rate: 600V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 160uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 45nV/√Hz@1kHz
Dual Supply: -6V~-2V;2V~6V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.25 g

Overview

The OPA703 and OPA704 series op amps are optimized for applications requiring rail-to-rail input and output swing. Single, dual, and quad versions are offered in a variety of packages. While the quiescent current is less than 200μA per amplifier, the OPA703 still offers excellent dynamic performance (1MHz GBW and 0.6V/μs SR) and unity-gain stability. The OPA704 is optimized for gains of 5 or greater and provides 3MHz GBW and 3V/μs slew rate. The OPA703 and OPA704 series are fully specified and guaranteed over the supply range of ±2V to ±6V. Input swing extends 300mV beyond the rail and the output swings to within 40mV of the rail. The single versions (OPA703 and OPA704) are available in the MicroSIZE SOT23-5 and in the standard SO-8 surfacemount, as well as the DIP-8 packages. Dual versions (OPA2703 and OPA2704) are available in the MSOP-8, SO-8, and DIP-8 packages. The quad OPA4703 and OPA4704 are available in the TSSOP-14 and SO-14 packages. All are specified for operation from -40°C to +85°C.

Applications

AUTOMOTIVE APPLICATIONS: Audio, Sensor Applications, Security Systems
PORTABLE EQUIPMENT
ACTIVE FILTERS

Key features

RAIL-TO-RAIL INPUT AND OUTPUT
WIDE SUPPLY RANGE: Single Supply: 4V to 12V; Dual Supplies: ±2 to ±6
LOW QUIESCENT CURRENT: 160μA
FULL-SCALE CMRR: 90dB
LOW OFFSET: 160μV
HIGH SPEED: OPA703: 1MHz, 0.6V/µs; OPA704: 3MHz, 3V/µs
MicroSIZE PACKAGES: SOT23-5, MSOP-8, TSSOP-14
LOW INPUT BIAS CURRENT: 1pA
