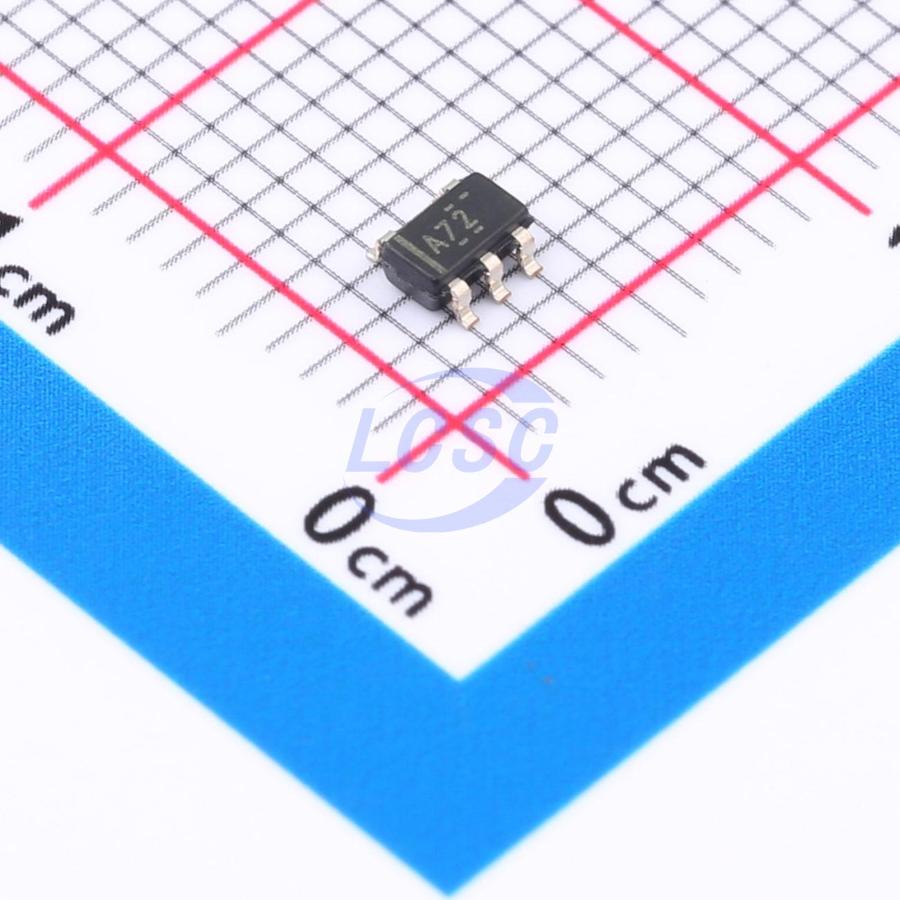

OPA830IDBVR

The OPA830 is a low-power, single-supply, wideband, voltage-feedback amplifier designed to operate on a single +3V or +5V supply. Operation on ±5V or +10V supplies is also supported. The input range extends below the negative supply and to within 1.7V of the positive supply. Using complementary common-emitter outputs provides an output swing to within 25mV of either supply while driving 150Ω. High output drive current (±80mA) and low differential gain and phase errors also make them ideal for single-supply consumer video products. Low distortion operation is ensured by the high gain bandwidth product (110MHz) and slew rate (550V/μs), making the OPA830 an ideal input buffer stage to 3V and 5V CMOS ADCs. Unlike other low-power, single-supply amplifiers, distortion performance improves as the signal swing is decreased. A low 9.2nV/√Hz input voltage noise supports wide dynamic range operation. The OPA830 is available in an industry-standard SO-8 package. The OPA830 is also available in an ultra-small SOT23-5 package. For fixed-gain line driver applications, consider the OPA832.

Applications

• SINGLE-SUPPLY ANALOG-TO-DIGITAL CONVERTER (ADC) INPUT BUFFERS
• SINGLE-SUPPLY VIDEO LINE DRIVERS
• CCD IMAGING CHANNELS
• LOW-POWER ULTRASOUND
• PLL INTEGRATORS
• PORTABLE CONSUMER ELECTRONICS
• DC-Coupled, +3V ADC Driver

Key features

• HIGH BANDWIDTH: 250MHz (G = +1), 110MHz (G = +2)
• LOW SUPPLY CURRENT: ~ (Vs = +5V)
• FLEXIBLE SUPPLY RANGE: ±1.4V to ±5.5V Dual Supply, +2.8V to +11V Single Supply
• INPUT RANGE INCLUDES GROUND ON SINGLE SUPPLY
• 4.88V OUTPUT SWING ON +5V SUPPLY
• HIGH SLEW RATE: 550V/μs
• LOW INPUT VOLTAGE NOISE: 9.2nV/√Hz
• Pb-FREE SOT23 PACKAGE
