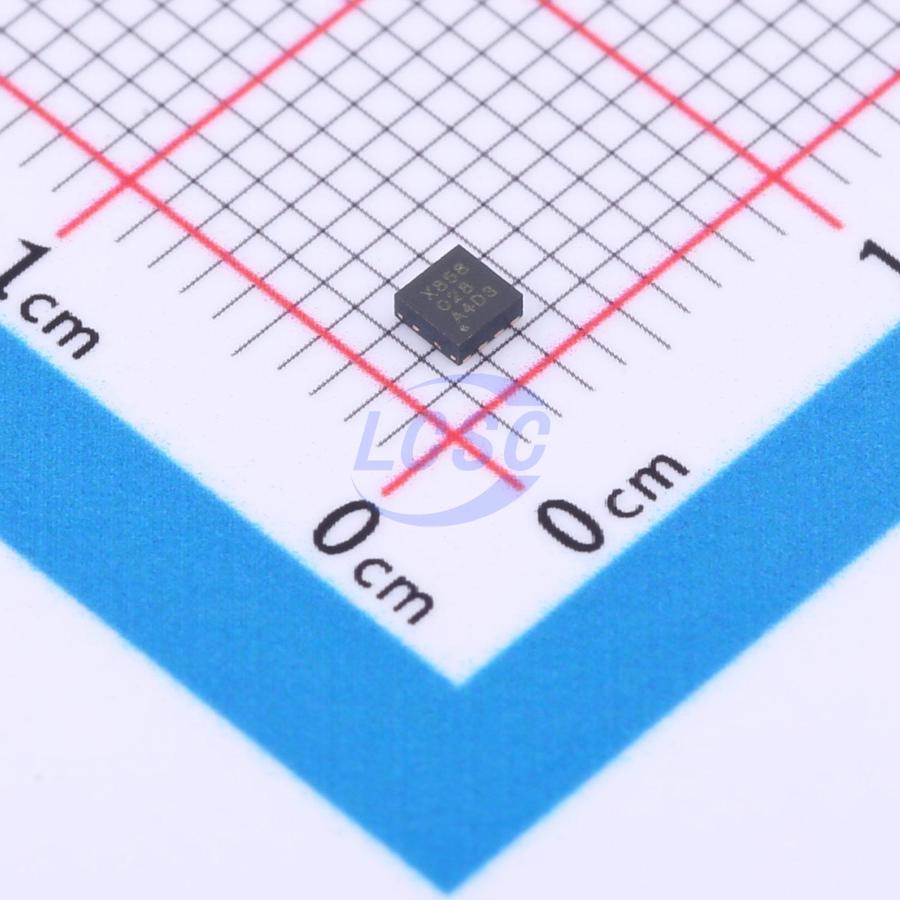

OPA858IDSGR

80mA 800uV 2000V/us 90dB 5pA 5.5GHz 20.5mA WSON-8-EP(2x2) Instrumentation, Op Amps, Buffer Amps RoHS

WSON-8-EP(2x2)ROHS3 CompliantActive

5.5GHz gain-bandwidth product, 7V/V gain-stable FET-input amplifier

Manufacturer: TI
Manufacturer part #: OPA858IDSGR
Store part #: C970232
Package / case: WSON-8-EP(2x2)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

949 in stock

#C970232

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹720.84	₹720.84
10+	₹616.74	₹6,167.40
30+	₹532.68	₹15,980.40
100+	₹469.97	₹46,997.00
500+	₹441.00	₹2,20,500.00
1,000+	₹427.94	₹4,27,940.00

Quantity (min 1)

1 × ₹720.84

₹720.84

excl. GST

₹850.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA858IDSGR

₹720.84 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 80mA
Vos - Input Offset Voltage: 800uV
Slew Rate: 2000V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 5.5GHz
Quiescent Current: 20.5mA
Features: Decompensated stable;ESD protection;Enable/shutdown function
Input Voltage Noise Density: 2.5nV/√Hz@1MHz
Single Supply: 3.3V~5.25V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

The OPA858 is a low-noise operational amplifier with CMOS inputs, suitable for broadband transimpedance and voltage amplifier applications. When the device is configured as a transimpedance amplifier (TIA), its 5.5GHz gain-bandwidth product (GBWP) can support applications that require high closed-loop bandwidth at transimpedance gains ranging from tens to hundreds of kilohms. The OPA858 package features a feedback pin (FB), which simplifies the connection of the feedback network between the input and output. The OPA858 is optimized for optical time-of-flight (ToF) systems and can be paired with high-speed analog-to-digital converters (ADCs) and differential output amplifiers (such as the THS4541 or LMH5401) used to drive the ADCs in high-resolution lidar systems.

Applications

High-speed transimpedance amplifier
Laser ranging
LiDAR receiver
Level transmitter (optical)
Optical time-domain reflectometry (OTDR)
Distributed temperature sensing
3D scanner
Time-of-Flight (ToF) systems
Autonomous driving systems

Key features

High gain-bandwidth product: 5.5GHz decompensated, gain ≥7V/V (stable)
Ultra-low bias current MOSFET input: 10pA
Low input voltage noise: 2.5nV/√Hz
Slew rate: 2000V/μs
Low input capacitance:
Common-mode: 0.6pF
Differential: 0.2pF
Wide input common-mode range: 1.4V from positive supply, including negative supply
Output swing of 2.5VPP in TIA configuration
Supply voltage range: 3.3V to 5.25V
Quiescent current: 20.5mA
8-pin WSON package
Temperature range: –40 to +125°C
