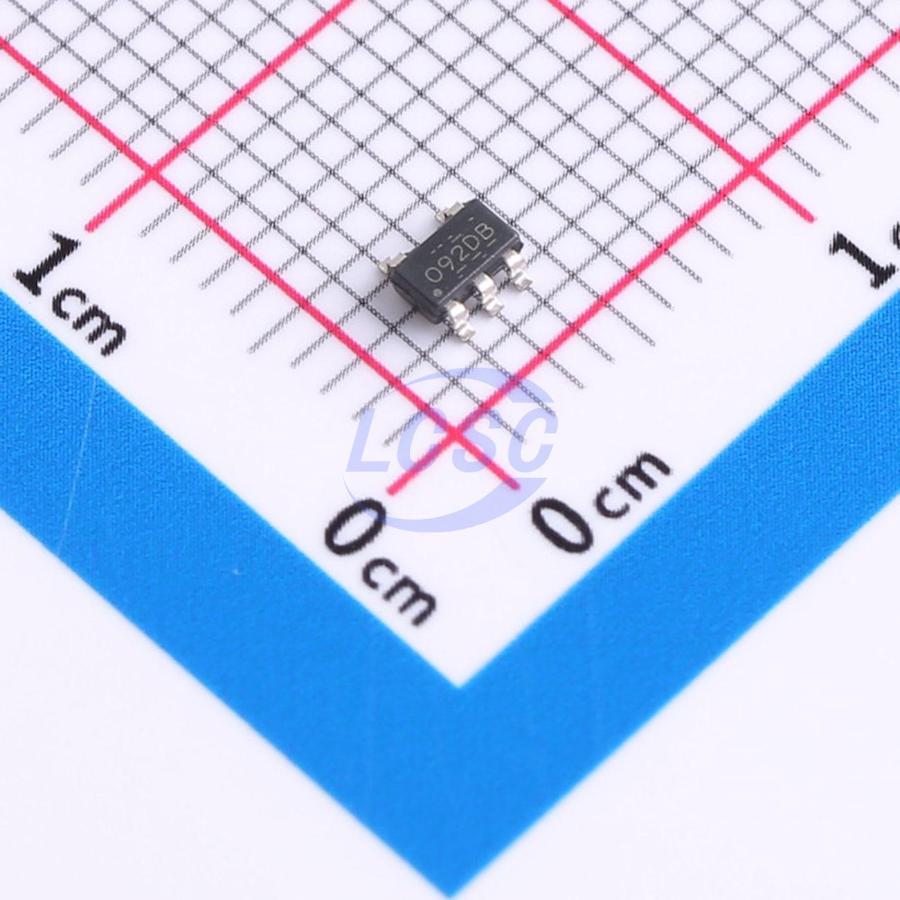

OPA992IDBVR

The OPAx992 (OPA992, OPA2992, and OPA4992) is a family of high-voltage (40V) general-purpose operational amplifiers. These devices feature excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (±210 μV, typical), low temperature drift (±0.25 μV/°C, typical), and low noise (7nV/√Hz at 1 kHz and 4.4nV/√Hz at 10 kHz). The OPAx992 offers many features such as differential and common-mode input voltage ranges up to the supply rails, high short-circuit current (±65 mA), and high slew rate (32 V/µs). Therefore, it is a flexible and reliable high-performance operational amplifier suitable for various high-voltage industrial applications. The OPAx992 operational amplifier family is available in miniature packages (e.g., WSON) as well as standard packages (e.g., SOT-23, SOIC, and TSSOP) and is specified for operation from -40°C to 125°C.

Applications

• Multiplexed data acquisition systems
• Test and measurement equipment
• Motor drives: power stages and control modules
• Power delivery: UPS, server, and commercial network power supplies
• ADC drivers and reference buffer amplifiers
• Programmable logic controllers
• Analog input and output modules
• High-side and low-side current sensing
• High-precision comparators

Key features

• Low offset voltage: ±210 μV
• Low offset voltage drift: ±0.25 μV/°C
• Low noise: 7 nV/√Hz at 1 kHz, 4.4 nV/√Hz wideband
• High common-mode rejection: 115 dB
• Low bias current: ±10 pA
• Rail-to-rail input and output
• MUX/comparator-friendly inputs
• Amplifier operates with differential inputs up to the supply rail
• Amplifier usable open-loop or as a comparator
• High bandwidth: 10.6 MHz GBW, unity-gain stable
• High slew rate: 32 V/µs
• Low quiescent current: 2.4 mA per amplifier
• Wide supply voltage: ±1.35 V to ±20 V, 2.7 V to 40 V
• Robust EMIRR performance
